| Summary | 0011203: Extract surface then extract block wrong representation | ||||||||
| Description | Hi! I extracted the surface of a pipe filled with some elements. Then I sliced it to calculate the wetted perimeter of the whole thing. All is fine. I reused the extracted surface and I extracted a block from this (pipe surface without elements) and I sliced it. The integrate variable filter worked great to calculate this new perimeter (good results) but paraview keeps representing the whole perimeter, not what it actually calculated. | ||||||||

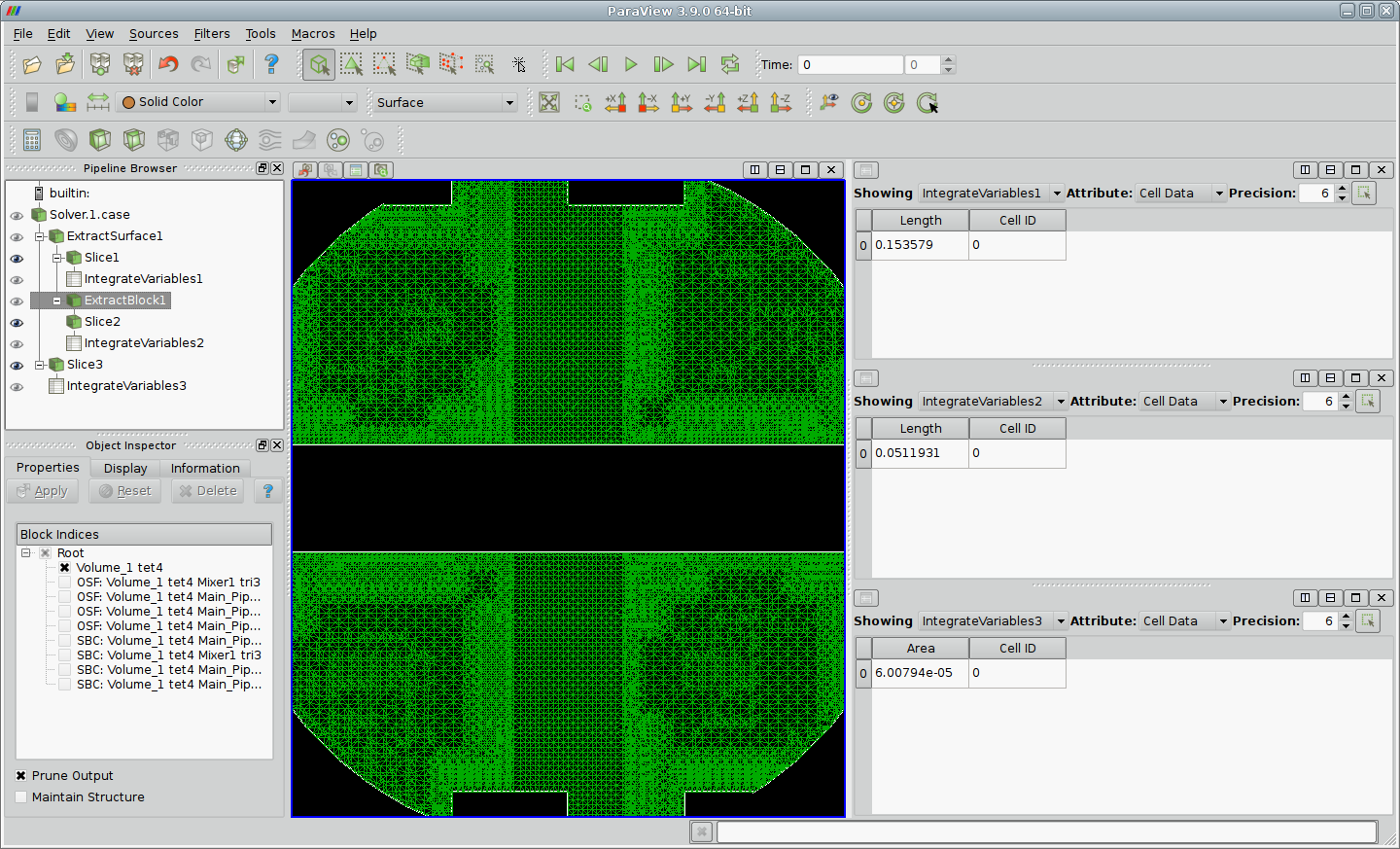

| Additional Information | Attached an image. On this one, the white lines around the black strip in the center shouldn't exist. | ||||||||
| Tags | No tags attached. | ||||||||
| Project | |||||||||
| Topic Name | |||||||||
| Type | |||||||||
| Attached Files |  Capture-ParaView 3.9.0 64-bit.png [^] (210,470 bytes) 2010-09-03 10:20
| ||||||||
| Relationships | |
| Relationships |
| Notes | |
|
(0022083) Asmo (reporter) 2010-09-03 11:19 |
Please close. This issue was mesh related. Sorry for the inconvenience. Regards |
|
(0037878) Kitware Robot (administrator) 2016-08-12 09:58 |
Resolving issue as `moved`. This issue tracker is no longer used. Further discussion of this issue may take place in the current ParaView Issues page linked in the banner at the top of this page. |
