| View Issue Details [ Jump to Notes ] | [ Print ] | ||||||||
| ID | Project | Category | View Status | Date Submitted | Last Update | ||||
| 0014630 | VTK | (No Category) | public | 2014-03-10 12:35 | 2016-07-06 10:22 | ||||
| Reporter | Alketi | ||||||||
| Assigned To | Utkarsh Ayachit | ||||||||
| Priority | normal | Severity | minor | Reproducibility | have not tried | ||||
| Status | closed | Resolution | duplicate | ||||||
| Platform | OS | OS Version | |||||||
| Product Version | 6.0.0 | ||||||||
| Target Version | Fixed in Version | ||||||||
| Summary | 0014630: Transparency and linker issues installing against custom QT 5.2.1 bulid | ||||||||
| Description | I'm on CentOS 6, with a custom installation of Qt 5.2.1 in /opt. The Qt standard CentOS installation lives in /usr. I'm trying to compile and install VTK 6.1.0 against the custom Qt 5.2.1 installation. The VTK install target is also in /opt. I'm using cmake28-gui for all the settings, and an out-of-source build into a new subdirectory (VTK-build) inside the VTK source directory. Three issues: 1. Despite setting the CMAKE_PREFIX_PATH variable to /opt/qt5.2.1, nearly all Qt paths, including the qmake variable and the QtOpengl paths, all still point to the /usr install of Qt. These all need to be hand-edited to point to /opt/qt5.2.1. 2. When VTK 6 is installed in /opt, the VTK-Qt libraries can't seem to find any of the VTK libraries that all reside in the same directory. For example, an ldd on libvtkViewsQt-6.1.so yields: % ldd libvtkViewsQt-6.1.so linux-vdso.so.1 => (0x00007fff36dff000) libvtkGUISupportQt-6.1.so.1 => not found libvtkViewsInfovis-6.1.so.1 => not found libQt5Widgets.so.5 => not found libQt5Gui.so.5 => not found libQt5Core.so.5 => not found libvtkChartsCore-6.1.so.1 => not found libvtkCommonColor-6.1.so.1 => not found libvtkFiltersImaging-6.1.so.1 => not found libvtkInfovisLayout-6.1.so.1 => not found libvtkInfovisCore-6.1.so.1 => not found libvtkRenderingContext2D-6.1.so.1 => not found libvtkRenderingOpenGL-6.1.so.1 => not found libGLU.so.1 => /usr/lib64/libGLU.so.1 (0x00007f39c39cb000) libSM.so.6 => /usr/lib64/libSM.so.6 (0x00007f39c37c3000) libICE.so.6 => /usr/lib64/libICE.so.6 (0x00007f39c35a7000) libX11.so.6 => /usr/lib64/libX11.so.6 (0x00007f39c3267000) libXext.so.6 => /usr/lib64/libXext.so.6 (0x00007f39c3055000) libXt.so.6 => /usr/lib64/libXt.so.6 (0x00007f39c2df0000) libvtkRenderingLabel-6.1.so.1 => not found libvtkViewsCore-6.1.so.1 => not found libvtkInteractionWidgets-6.1.so.1 => not found libvtkInteractionStyle-6.1.so.1 => not found libvtkFiltersModeling-6.1.so.1 => not found libvtkImagingGeneral-6.1.so.1 => not found libvtkImagingHybrid-6.1.so.1 => not found libvtkIOImage-6.1.so.1 => not found libvtkIOCore-6.1.so.1 => not found libvtkFiltersHybrid-6.1.so.1 => not found libvtkImagingSources-6.1.so.1 => not found libvtkRenderingAnnotation-6.1.so.1 => not found libvtkRenderingFreeType-6.1.so.1 => not found libvtkftgl-6.1.so.1 => not found libGL.so.1 => /usr/lib64/libGL.so.1 (0x00007f39c2b6c000) libvtkfreetype-6.1.so.1 => not found libvtkzlib-6.1.so.1 => not found libvtkImagingColor-6.1.so.1 => not found libvtkRenderingVolume-6.1.so.1 => not found libvtkRenderingCore-6.1.so.1 => not found libvtkFiltersSources-6.1.so.1 => not found libvtkFiltersExtraction-6.1.so.1 => not found libvtkFiltersStatistics-6.1.so.1 => not found libvtkImagingFourier-6.1.so.1 => not found libvtkImagingCore-6.1.so.1 => not found libvtkalglib-6.1.so.1 => not found libvtkFiltersGeneral-6.1.so.1 => not found libvtkCommonComputationalGeometry-6.1.so.1 => not found libvtkFiltersCore-6.1.so.1 => not found libvtkCommonExecutionModel-6.1.so.1 => not found libvtkCommonDataModel-6.1.so.1 => not found libvtkCommonSystem-6.1.so.1 => not found libvtkCommonTransforms-6.1.so.1 => not found libvtkCommonMisc-6.1.so.1 => not found libvtkCommonMath-6.1.so.1 => not found libvtkCommonCore-6.1.so.1 => not found libstdc++.so.6 => /usr/lib64/libstdc++.so.6 (0x00007f39c285d000) libm.so.6 => /lib64/libm.so.6 (0x00007f39c25d9000) libc.so.6 => /lib64/libc.so.6 (0x00007f39c2238000) libgcc_s.so.1 => /lib64/libgcc_s.so.1 (0x00007f39c2021000) libuuid.so.1 => /lib64/libuuid.so.1 (0x00007f39c1e1d000) libxcb.so.1 => /usr/lib64/libxcb.so.1 (0x00007f39c1c02000) libdl.so.2 => /lib64/libdl.so.2 (0x00007f39c19fd000) libXdamage.so.1 => /usr/lib64/libXdamage.so.1 (0x00007f39c17fb000) libXfixes.so.3 => /usr/lib64/libXfixes.so.3 (0x00007f39c15f6000) libXxf86vm.so.1 => /usr/lib64/libXxf86vm.so.1 (0x00007f39c13f0000) libdrm.so.2 => /usr/lib64/libdrm.so.2 (0x00007f39c11e5000) libpthread.so.0 => /lib64/libpthread.so.0 (0x00007f39c0fc9000) /lib64/ld-linux-x86-64.so.2 (0x0000003909c00000) libXau.so.6 => /usr/lib64/libXau.so.6 (0x00007f39c0dc5000) librt.so.1 => /lib64/librt.so.1 (0x00007f39c0bbd000) 3. After compiling and installing without errors (despite the above issues), running a test application with Qt & VTK yields transparent 3D surfaces. The same code worked fine on VTK 5.10 + Qt 4.6.2. Please see attached file. Both the sphere and square should be solid objects. Any idea what could be happening? | ||||||||
| Tags | No tags attached. | ||||||||
| Project | TBD | ||||||||
| Type | incorrect functionality | ||||||||

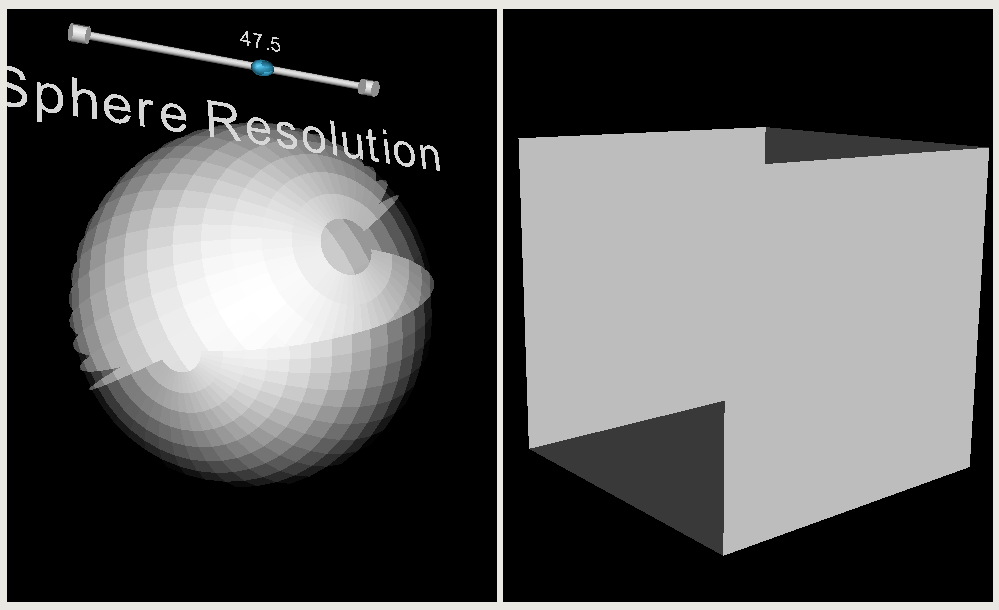

| Attached Files |  vtk_transparent.png [^] (29,118 bytes) 2014-03-10 12:35
| ||||||||
| Relationships | ||||||
|
||||||
| Relationships |
| Notes | |
|
(0033914) SpaceUser (reporter) 2014-12-09 09:14 edited on: 2015-01-29 09:18 |
Contrary to the linker bug, the transparency bug still exists (on Debian 8.0 with installed VTK6.1.0 / QT5.3.2). The often proposed culling doesn't fix the problem. Thus, I'm wondering if there is a suitable fix available. However, the problem only occures when using QVTKWidget! |
|
(0034412) David C. Lonie (developer) 2015-05-14 10:19 |
Bug 15469 identifies the cause of the transparency issues. This bug is currently marked as "Gerrit Review". This seems unintentional as there is no reference to a review branch. Revert to backlog. |
|
(0036158) Utkarsh Ayachit (administrator) 2016-07-06 10:22 |
Closing since duplicate of BUG 0015469 |
| Notes |
| Issue History | |||
| Date Modified | Username | Field | Change |
| 2014-03-10 12:35 | Alketi | New Issue | |
| 2014-03-10 12:35 | Alketi | File Added: vtk_transparent.png | |
| 2014-06-09 20:58 | guest | Note Added: 0032813 | |
| 2014-06-09 20:58 | guest | Status | backlog => gerrit review |
| 2014-12-09 09:14 | SpaceUser | Note Added: 0033914 | |
| 2014-12-09 09:15 | SpaceUser | Note Edited: 0033914 | |
| 2015-01-29 09:18 | SpaceUser | Note Edited: 0033914 | |
| 2015-05-14 10:18 | David C. Lonie | Relationship added | related to 0015469 |
| 2015-05-14 10:19 | David C. Lonie | Note Added: 0034412 | |
| 2015-05-14 10:19 | David C. Lonie | Assigned To | => David C. Lonie |
| 2015-05-14 10:19 | David C. Lonie | Status | gerrit review => backlog |
| 2015-05-14 10:20 | David C. Lonie | Assigned To | David C. Lonie => |
| 2016-05-26 13:58 | guest | Note Edited: 0032813 | |
| 2016-07-06 10:21 | Utkarsh Ayachit | Note Deleted: 0032813 | |
| 2016-07-06 10:22 | Utkarsh Ayachit | Note Added: 0036158 | |
| 2016-07-06 10:22 | Utkarsh Ayachit | Status | backlog => closed |
| 2016-07-06 10:22 | Utkarsh Ayachit | Assigned To | => Utkarsh Ayachit |
| 2016-07-06 10:22 | Utkarsh Ayachit | Resolution | open => duplicate |
