Summary0009131: vtkVolumeRayCastMapper renders an image 1 pixel too short
DescriptionvtkVolumeRayCastMapper renders an image 1 pixel too short. This is causing major problems when rendering with vtkRenderLargeImage with magnification > than 1 because there is a gap between patches rendered by vtkRenderLargeImage.

The same problem is present in other software volume mappers such as vtkFixedPointVolumeRaycastMapper.

TagsNo tags attached.
Project
Type
Attached Filestxt file icon vtkVolumeRayCastMapper.cxx_patch.txt [^] (899 bytes) 2009-06-10 13:42 [Show Content]
png file icon without_patch.png [^] (173,638 bytes) 2009-06-11 11:27


png file icon with_patch.png [^] (172,548 bytes) 2009-06-11 11:27


cpp file icon vtkLargeImageRenderTest.cpp [^] (2,908 bytes) 2009-06-11 11:28
txt file icon CMakeLists.txt [^] (535 bytes) 2009-06-11 11:28 [Show Content]

 Relationships

  Notes
(0016695)
Simon Drouin (reporter)
2009-06-10 13:44

See attached file vtkVolumeRayCastMapper.cxx_patch.txt for a patch that fixes this issue for vtkVolumeRayCastMapper. A similar fix is probably needed for other mappers such as vtkFixedPointVolumeRaycastMapper.
(0016699)
François Bertel (developer)
2009-06-10 16:47

Do you have a small full code example that illustrates this defect?

The goal is the following: have a small example that fails without the patch.
Add the patch to vtk as well as the example as a regression test and make sure it passes.
(0016707)
Simon Drouin (reporter)
2009-06-11 11:31

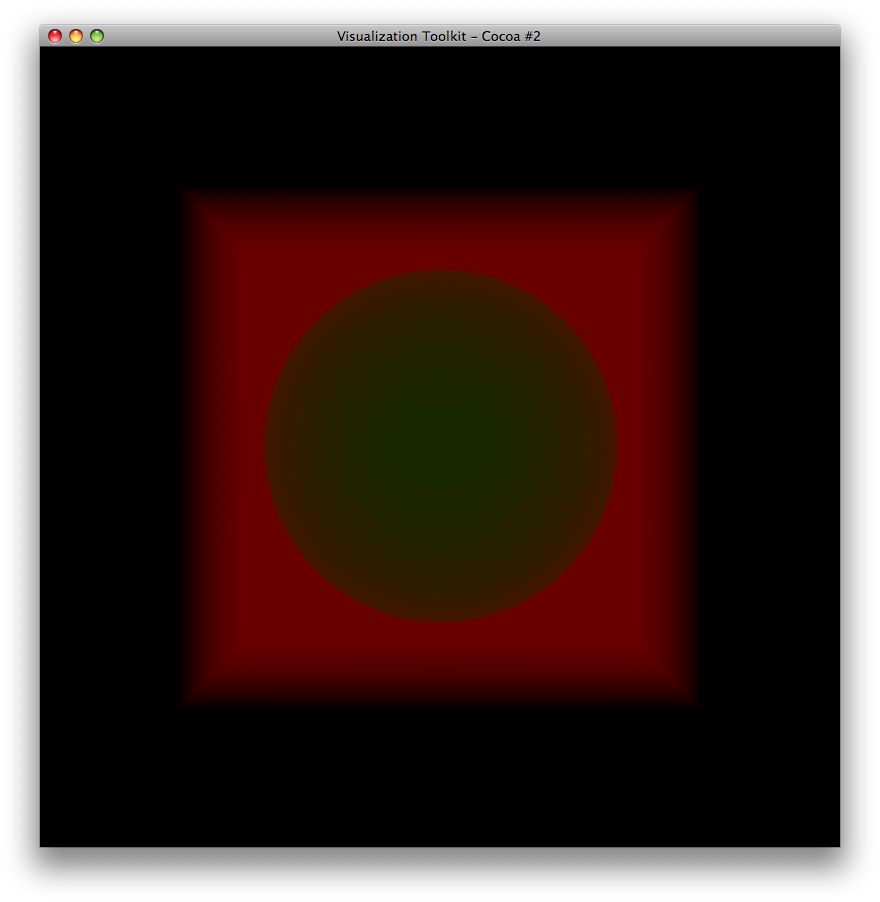

I uploaded a small test program (vtkLargeImageRenderTest.cpp and CMakeLists.txt) that renders properly with the patch and not without it. I've also uploaded a pngs that show render window with and without the patch.
(0037085)
Kitware Robot (administrator)
2016-08-12 09:55

Resolving issue as `moved`.

This issue tracker is no longer used. Further discussion of this issue may take place in the current VTK Issues page linked in the banner at the top of this page.
