vtkAbstractVolumeMapper Class Reference

#include <vtkAbstractVolumeMapper.h>

Inheritance diagram for vtkAbstractVolumeMapper:

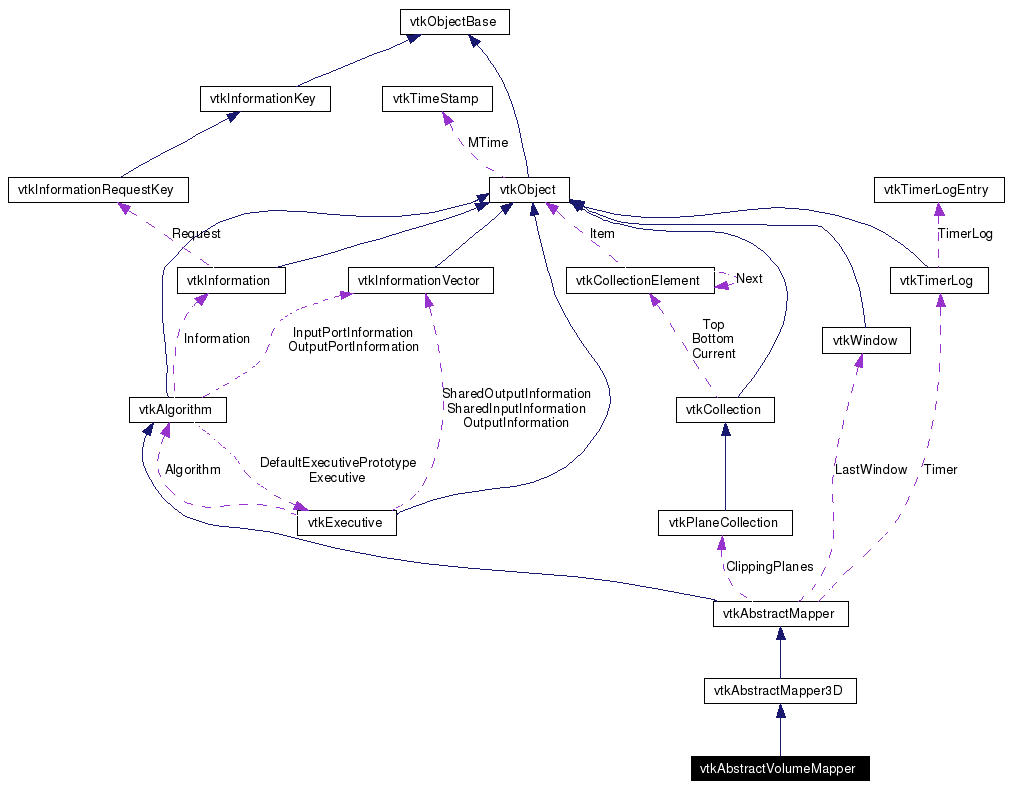

[legend]Collaboration diagram for vtkAbstractVolumeMapper:

[legend]List of all members.

---

Detailed Description

Abstract class for a volume mapper.

vtkAbstractVolumeMapper is the abstract definition of a volume mapper. Specific subclasses deal with different specific types of data input

See also:

vtkVolumeMapper vtkUnstructuredGridVolumeMapper

Definition at line 36 of file vtkAbstractVolumeMapper.h.

Public Types
typedef vtkAbstractMapper3D	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	Render (vtkRenderer *ren, vtkVolume *vol)=0
virtual void	ReleaseGraphicsResources (vtkWindow *)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetInput (vtkDataSet *)
vtkDataSet *	GetDataSetInput ()
virtual double *	GetBounds ()
virtual void	GetBounds (double bounds[6])
virtual float	GetGradientMagnitudeScale ()
virtual float	GetGradientMagnitudeBias ()
virtual float	GetGradientMagnitudeScale (int)
virtual float	GetGradientMagnitudeBias (int)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkAbstractVolumeMapper *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkAbstractVolumeMapper ()
	~vtkAbstractVolumeMapper ()
virtual int	FillInputPortInformation (int port, vtkInformation *info)

---

Member Typedef Documentation

typedef vtkAbstractMapper3D vtkAbstractVolumeMapper::Superclass

Reimplemented from vtkAbstractMapper3D. Reimplemented in vtkUnstructuredGridVolumeZSweepMapper, vtkFixedPointVolumeRayCastMapper, vtkMesaVolumeTextureMapper2D, vtkOpenGLVolumeProVP1000Mapper, vtkOpenGLVolumeShearWarpMapper, vtkOpenGLVolumeTextureMapper2D, vtkOpenGLVolumeTextureMapper3D, vtkProjectedTetrahedraMapper, vtkUnstructuredGridVolumeMapper, vtkUnstructuredGridVolumeRayCastMapper, vtkUnstructuredGridVolumeZSweepMapper, vtkVolumeMapper, vtkVolumeProMapper, vtkVolumeProVP1000Mapper, vtkVolumeRayCastMapper, vtkVolumeShearWarpMapper, vtkVolumeTextureMapper, vtkVolumeTextureMapper2D, and vtkVolumeTextureMapper3D. Definition at line 39 of file vtkAbstractVolumeMapper.h.

---

Constructor & Destructor Documentation

vtkAbstractVolumeMapper::vtkAbstractVolumeMapper (   )  [protected]

vtkAbstractVolumeMapper::~vtkAbstractVolumeMapper (   )  [protected]

---

Member Function Documentation

virtual const char* vtkAbstractVolumeMapper::GetClassName (   )  [virtual]

Reimplemented from vtkAbstractMapper3D. Reimplemented in vtkUnstructuredGridVolumeZSweepMapper, vtkFixedPointVolumeRayCastMapper, vtkMesaVolumeTextureMapper2D, vtkOpenGLVolumeProVP1000Mapper, vtkOpenGLVolumeShearWarpMapper, vtkOpenGLVolumeTextureMapper2D, vtkOpenGLVolumeTextureMapper3D, vtkProjectedTetrahedraMapper, vtkUnstructuredGridVolumeMapper, vtkUnstructuredGridVolumeRayCastMapper, vtkUnstructuredGridVolumeZSweepMapper, vtkVolumeMapper, vtkVolumeProMapper, vtkVolumeProVP1000Mapper, vtkVolumeRayCastMapper, vtkVolumeShearWarpMapper, vtkVolumeTextureMapper, vtkVolumeTextureMapper2D, and vtkVolumeTextureMapper3D.

static int vtkAbstractVolumeMapper::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkAbstractMapper3D. Reimplemented in vtkUnstructuredGridVolumeZSweepMapper, vtkFixedPointVolumeRayCastMapper, vtkMesaVolumeTextureMapper2D, vtkOpenGLVolumeProVP1000Mapper, vtkOpenGLVolumeShearWarpMapper, vtkOpenGLVolumeTextureMapper2D, vtkOpenGLVolumeTextureMapper3D, vtkProjectedTetrahedraMapper, vtkUnstructuredGridVolumeMapper, vtkUnstructuredGridVolumeRayCastMapper, vtkUnstructuredGridVolumeZSweepMapper, vtkVolumeMapper, vtkVolumeProMapper, vtkVolumeProVP1000Mapper, vtkVolumeRayCastMapper, vtkVolumeShearWarpMapper, vtkVolumeTextureMapper, vtkVolumeTextureMapper2D, and vtkVolumeTextureMapper3D.

virtual int vtkAbstractVolumeMapper::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkAbstractMapper3D. Reimplemented in vtkUnstructuredGridVolumeZSweepMapper, vtkFixedPointVolumeRayCastMapper, vtkMesaVolumeTextureMapper2D, vtkOpenGLVolumeProVP1000Mapper, vtkOpenGLVolumeShearWarpMapper, vtkOpenGLVolumeTextureMapper2D, vtkOpenGLVolumeTextureMapper3D, vtkProjectedTetrahedraMapper, vtkUnstructuredGridVolumeMapper, vtkUnstructuredGridVolumeRayCastMapper, vtkUnstructuredGridVolumeZSweepMapper, vtkVolumeMapper, vtkVolumeProMapper, vtkVolumeProVP1000Mapper, vtkVolumeRayCastMapper, vtkVolumeShearWarpMapper, vtkVolumeTextureMapper, vtkVolumeTextureMapper2D, and vtkVolumeTextureMapper3D.

static vtkAbstractVolumeMapper* vtkAbstractVolumeMapper::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkAbstractMapper3D. Reimplemented in vtkUnstructuredGridVolumeZSweepMapper, vtkFixedPointVolumeRayCastMapper, vtkMesaVolumeTextureMapper2D, vtkOpenGLVolumeProVP1000Mapper, vtkOpenGLVolumeShearWarpMapper, vtkOpenGLVolumeTextureMapper2D, vtkOpenGLVolumeTextureMapper3D, vtkProjectedTetrahedraMapper, vtkUnstructuredGridVolumeMapper, vtkUnstructuredGridVolumeRayCastMapper, vtkUnstructuredGridVolumeZSweepMapper, vtkVolumeMapper, vtkVolumeProMapper, vtkVolumeProVP1000Mapper, vtkVolumeRayCastMapper, vtkVolumeShearWarpMapper, vtkVolumeTextureMapper, vtkVolumeTextureMapper2D, and vtkVolumeTextureMapper3D.

void vtkAbstractVolumeMapper::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkAbstractMapper3D. Reimplemented in vtkUnstructuredGridVolumeZSweepMapper, vtkFixedPointVolumeRayCastMapper, vtkMesaVolumeTextureMapper2D, vtkOpenGLVolumeProVP1000Mapper, vtkOpenGLVolumeShearWarpMapper, vtkOpenGLVolumeTextureMapper2D, vtkOpenGLVolumeTextureMapper3D, vtkProjectedTetrahedraMapper, vtkUnstructuredGridVolumeMapper, vtkUnstructuredGridVolumeRayCastMapper, vtkUnstructuredGridVolumeZSweepMapper, vtkVolumeMapper, vtkVolumeProMapper, vtkVolumeProVP1000Mapper, vtkVolumeRayCastMapper, vtkVolumeShearWarpMapper, vtkVolumeTextureMapper, vtkVolumeTextureMapper2D, and vtkVolumeTextureMapper3D.

virtual void vtkAbstractVolumeMapper::SetInput (  vtkDataSet *   )  [virtual]

Set/Get the input data Reimplemented in vtkUnstructuredGridVolumeMapper, and vtkVolumeMapper.

vtkDataSet* vtkAbstractVolumeMapper::GetDataSetInput (   )

virtual double* vtkAbstractVolumeMapper::GetBounds (   )  [virtual]

Return bounding box (array of six doubles) of data expressed as (xmin,xmax, ymin,ymax, zmin,zmax). Implements vtkAbstractMapper3D.

virtual void vtkAbstractVolumeMapper::GetBounds (  double  bounds[6]  )  [inline, virtual]

Return bounding box (array of six doubles) of data expressed as (xmin,xmax, ymin,ymax, zmin,zmax). Reimplemented from vtkAbstractMapper3D. Definition at line 52 of file vtkAbstractVolumeMapper.h. References vtkAbstractMapper3D::GetBounds().

virtual float vtkAbstractVolumeMapper::GetGradientMagnitudeScale (   )  [inline, virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE Reimplemented in vtkVolumeRayCastMapper, and vtkVolumeTextureMapper. Definition at line 59 of file vtkAbstractVolumeMapper.h. Referenced by vtkVolumeTextureMapper::GetGradientMagnitudeScale(), and vtkVolumeRayCastMapper::GetGradientMagnitudeScale().

virtual float vtkAbstractVolumeMapper::GetGradientMagnitudeBias (   )  [inline, virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE Reimplemented in vtkVolumeRayCastMapper, and vtkVolumeTextureMapper. Definition at line 60 of file vtkAbstractVolumeMapper.h. Referenced by vtkVolumeTextureMapper::GetGradientMagnitudeBias(), and vtkVolumeRayCastMapper::GetGradientMagnitudeBias().

virtual float vtkAbstractVolumeMapper::GetGradientMagnitudeScale (  int   )  [inline, virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE Reimplemented in vtkVolumeRayCastMapper, and vtkVolumeTextureMapper. Definition at line 61 of file vtkAbstractVolumeMapper.h.

virtual float vtkAbstractVolumeMapper::GetGradientMagnitudeBias (  int   )  [inline, virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE Reimplemented in vtkVolumeRayCastMapper, and vtkVolumeTextureMapper. Definition at line 62 of file vtkAbstractVolumeMapper.h.

virtual void vtkAbstractVolumeMapper::Render (  vtkRenderer *  ren, vtkVolume *  vol )  [pure virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS Render the volume Implemented in vtkUnstructuredGridVolumeZSweepMapper, vtkFixedPointVolumeRayCastMapper, vtkMesaVolumeTextureMapper2D, vtkOpenGLVolumeTextureMapper2D, vtkOpenGLVolumeTextureMapper3D, vtkProjectedTetrahedraMapper, vtkUnstructuredGridVolumeMapper, vtkUnstructuredGridVolumeRayCastMapper, vtkUnstructuredGridVolumeZSweepMapper, vtkVolumeMapper, vtkVolumeProMapper, vtkVolumeProVP1000Mapper, vtkVolumeRayCastMapper, vtkVolumeShearWarpMapper, vtkVolumeTextureMapper, vtkVolumeTextureMapper2D, and vtkVolumeTextureMapper3D.

virtual void vtkAbstractVolumeMapper::ReleaseGraphicsResources (  vtkWindow *   )  [inline, virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE Release any graphics resources that are being consumed by this mapper. The parameter window could be used to determine which graphic resources to release. Reimplemented from vtkAbstractMapper. Reimplemented in vtkOpenGLVolumeTextureMapper3D, vtkProjectedTetrahedraMapper, vtkUnstructuredGridVolumeMapper, vtkUnstructuredGridVolumeRayCastMapper, vtkVolumeMapper, and vtkVolumeRayCastMapper. Definition at line 74 of file vtkAbstractVolumeMapper.h.

virtual int vtkAbstractVolumeMapper::FillInputPortInformation (  int  port, vtkInformation *  info )  [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle. Reimplemented from vtkAlgorithm. Reimplemented in vtkUnstructuredGridVolumeMapper, and vtkVolumeMapper.

---

The documentation for this class was generated from the following file:

• dox/Rendering/vtkAbstractVolumeMapper.h

---
