vtkBorderWidget Class Reference

#include <vtkBorderWidget.h>

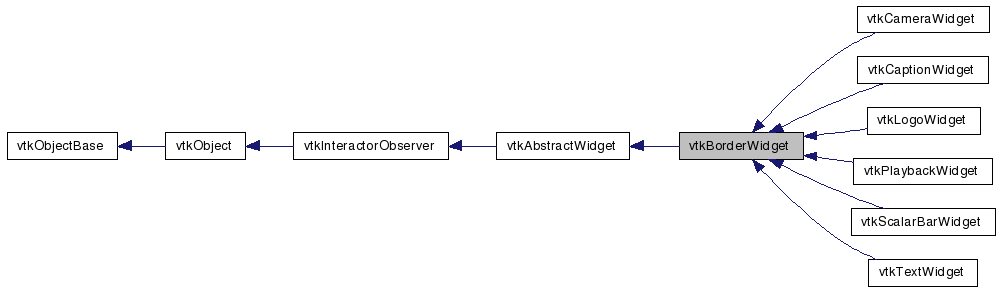

Inheritance diagram for vtkBorderWidget:

[legend]

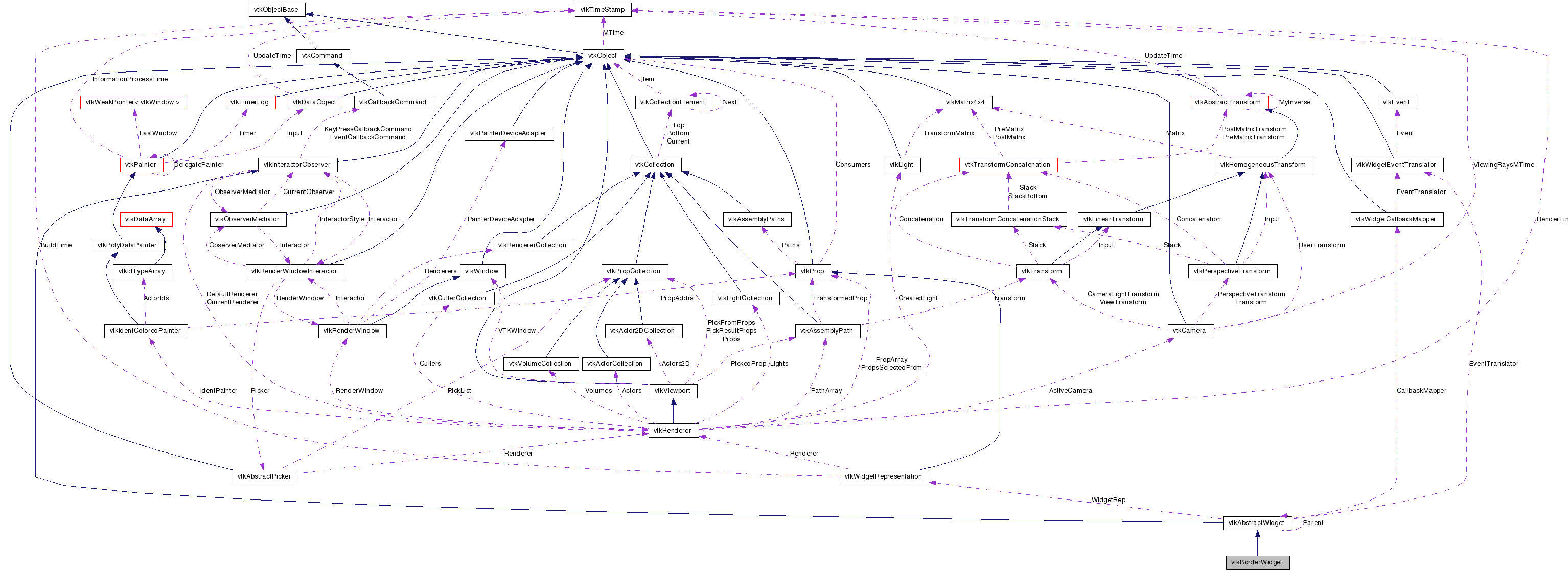

Collaboration diagram for vtkBorderWidget:

[legend]

List of all members.

Detailed Description

place a border around a 2D rectangular region

This class is a superclass for 2D widgets that may require a rectangular border. Besides drawing a border, the widget provides methods for resizing and moving the rectangular region (and associated border). The widget provides methods and internal data members so that subclasses can take advantage of this widgets capabilities, requiring only that the subclass defines a "representation", i.e., some combination of props or actors that can be managed in the 2D rectangular region.

The class defines basic positioning functionality, including the ability to size the widget with locked x/y proportions. The area within the border may be made "selectable" as well, meaning that a selection event interior to the widget invokes a virtual SelectRegion() method, which can be used to pick objects or otherwise manipulate data interior to the widget.

Event Bindings:

By default, the widget responds to the following VTK events (i.e., it watches the vtkRenderWindowInteractor for these events):

 On the boundary of the widget:
   LeftButtonPressEvent - select boundary
   LeftButtonReleaseEvent - deselect boundary
   MouseMoveEvent - move/resize widget depending on which portion of the
                    boundary was selected.
 On the interior of the widget:
   LeftButtonPressEvent - invoke SelectButton() callback (if the ivar
                          Selectable is on)
 Anywhere on the widget:
   MiddleButtonPressEvent - move the widget

Event Bindings:

Note that the event bindings described above can be changed using this class's vtkWidgetEventTranslator. This class translates VTK events into the vtkBorderWidget's widget events:

   vtkWidgetEvent::Select -- some part of the widget has been selected
   vtkWidgetEvent::EndSelect -- the selection process has completed
   vtkWidgetEvent::Translate -- the widget is to be translated
   vtkWidgetEvent::Move -- a request for slider motion has been invoked

Event Bindings:

In turn, when these widget events are processed, this widget invokes the following VTK events on itself (which observers can listen for):

   vtkCommand::StartInteractionEvent (on vtkWidgetEvent::Select)
   vtkCommand::EndInteractionEvent (on vtkWidgetEvent::EndSelect)
   vtkCommand::InteractionEvent (on vtkWidgetEvent::Move)

See also:: vtkInteractorObserver vtkCameraInterpolator

Events:: vtkCommand::EndInteractionEvent vtkCommand::InteractionEvent vtkCommand::StartInteractionEvent vtkCommand::WidgetActivateEvent

Tests:: vtkBorderWidget (Tests)

Definition at line 86 of file vtkBorderWidget.h.


typedef vtkAbstractWidget	Superclass
static int	IsTypeOf (const char *type)
static vtkBorderWidget *	SafeDownCast (vtkObject *o)
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
Public Member Functions
virtual void	CreateDefaultRepresentation ()

virtual void	SetSelectable (int)
virtual int	GetSelectable ()
virtual void	SelectableOn ()
virtual void	SelectableOff ()

virtual void	SetResizable (int)
virtual int	GetResizable ()
virtual void	ResizableOn ()
virtual void	ResizableOff ()

void	SetRepresentation (vtkBorderRepresentation *r)
Static Public Member Functions
static vtkBorderWidget *	New ()
Protected Types
enum	_WidgetState { Start = 0, Define, Manipulate, Selected }
Protected Member Functions
	vtkBorderWidget ()
	~vtkBorderWidget ()
virtual void	SelectRegion (double eventPos[2])
virtual int	SubclassSelectAction ()
virtual int	SubclassTranslateAction ()
virtual int	SubclassEndSelectAction ()
virtual int	SubclassMoveAction ()
virtual void	SetCursor (int State)
Static Protected Member Functions
static void	SelectAction (vtkAbstractWidget *)
static void	TranslateAction (vtkAbstractWidget *)
static void	EndSelectAction (vtkAbstractWidget *)
static void	MoveAction (vtkAbstractWidget *)
Protected Attributes
int	Selectable
int	Resizable
int	WidgetState

Member Typedef Documentation

typedef vtkAbstractWidget vtkBorderWidget::Superclass

Standard methods for class.

Reimplemented from vtkAbstractWidget.

Reimplemented in vtkCameraWidget, vtkCaptionWidget, vtkLogoWidget, vtkPlaybackWidget, vtkScalarBarWidget, and vtkTextWidget.

Definition at line 94 of file vtkBorderWidget.h.

Member Enumeration Documentation

enum vtkBorderWidget::_WidgetState [protected]

Enumerator:

Start
Define
Manipulate
Selected

Definition at line 162 of file vtkBorderWidget.h.

Constructor & Destructor Documentation

vtkBorderWidget::vtkBorderWidget ( ) [protected]

vtkBorderWidget::~vtkBorderWidget ( ) [protected]

Member Function Documentation

static vtkBorderWidget* vtkBorderWidget::New ( ) [static]

Method to instantiate class.

Reimplemented from vtkObject.

Reimplemented in vtkCameraWidget, vtkCaptionWidget, vtkLogoWidget, vtkPlaybackWidget, vtkScalarBarWidget, and vtkTextWidget.

virtual const char* vtkBorderWidget::GetClassName ( ) [virtual]

Standard methods for class.

Reimplemented from vtkAbstractWidget.

Reimplemented in vtkCameraWidget, vtkCaptionWidget, vtkLogoWidget, vtkPlaybackWidget, vtkScalarBarWidget, and vtkTextWidget.

static int vtkBorderWidget::IsTypeOf ( const char * type ) [static]

Standard methods for class.

Reimplemented from vtkAbstractWidget.

Reimplemented in vtkCameraWidget, vtkCaptionWidget, vtkLogoWidget, vtkPlaybackWidget, vtkScalarBarWidget, and vtkTextWidget.

virtual int vtkBorderWidget::IsA ( const char * type ) [virtual]

Standard methods for class.

Reimplemented from vtkAbstractWidget.

Reimplemented in vtkCameraWidget, vtkCaptionWidget, vtkLogoWidget, vtkPlaybackWidget, vtkScalarBarWidget, and vtkTextWidget.

static vtkBorderWidget* vtkBorderWidget::SafeDownCast ( vtkObject * o ) [static]

Standard methods for class.

Reimplemented from vtkAbstractWidget.

Reimplemented in vtkCameraWidget, vtkCaptionWidget, vtkLogoWidget, vtkPlaybackWidget, vtkScalarBarWidget, and vtkTextWidget.

void vtkBorderWidget::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Standard methods for class.

Reimplemented from vtkAbstractWidget.

Reimplemented in vtkCameraWidget, vtkCaptionWidget, vtkLogoWidget, vtkPlaybackWidget, vtkScalarBarWidget, and vtkTextWidget.

virtual void vtkBorderWidget::SetSelectable ( int ) [virtual]

Indicate whether the interior region of the widget can be selected or not. If not, then events (such as left mouse down) allow the user to "move" the widget, and no selection is possible. Otherwise the SelectRegion() method is invoked.

virtual int vtkBorderWidget::GetSelectable ( ) [virtual]

Indicate whether the interior region of the widget can be selected or not. If not, then events (such as left mouse down) allow the user to "move" the widget, and no selection is possible. Otherwise the SelectRegion() method is invoked.

virtual void vtkBorderWidget::SelectableOn ( ) [virtual]

Indicate whether the interior region of the widget can be selected or not. If not, then events (such as left mouse down) allow the user to "move" the widget, and no selection is possible. Otherwise the SelectRegion() method is invoked.

virtual void vtkBorderWidget::SelectableOff ( ) [virtual]

Indicate whether the interior region of the widget can be selected or not. If not, then events (such as left mouse down) allow the user to "move" the widget, and no selection is possible. Otherwise the SelectRegion() method is invoked.

virtual void vtkBorderWidget::SetResizable ( int ) [virtual]

Indicate whether the boundary of the widget can be resized. If not, the cursor will not change to "resize" type when mouse over the boundary.

virtual int vtkBorderWidget::GetResizable ( ) [virtual]

Indicate whether the boundary of the widget can be resized. If not, the cursor will not change to "resize" type when mouse over the boundary.

virtual void vtkBorderWidget::ResizableOn ( ) [virtual]

Indicate whether the boundary of the widget can be resized. If not, the cursor will not change to "resize" type when mouse over the boundary.

virtual void vtkBorderWidget::ResizableOff ( ) [virtual]

Indicate whether the boundary of the widget can be resized. If not, the cursor will not change to "resize" type when mouse over the boundary.

void vtkBorderWidget::SetRepresentation ( vtkBorderRepresentation * r ) [inline]

Specify an instance of vtkWidgetRepresentation used to represent this widget in the scene. Note that the representation is a subclass of vtkProp so it can be added to the renderer independent of the widget.

Definition at line 123 of file vtkBorderWidget.h.

virtual void vtkBorderWidget::CreateDefaultRepresentation ( ) [virtual]

Create the default widget representation if one is not set.

Implements vtkAbstractWidget.

Reimplemented in vtkCameraWidget, vtkCaptionWidget, vtkLogoWidget, vtkPlaybackWidget, vtkScalarBarWidget, and vtkTextWidget.

virtual void vtkBorderWidget::SelectRegion ( double eventPos[2] ) [protected, virtual]

Subclasses generally implement this method. The SelectRegion() method offers a subclass the chance to do something special if the interior of the widget is selected.

Reimplemented in vtkCameraWidget, and vtkPlaybackWidget.

static void vtkBorderWidget::SelectAction ( vtkAbstractWidget * ) [static, protected]

static void vtkBorderWidget::TranslateAction ( vtkAbstractWidget * ) [static, protected]

static void vtkBorderWidget::EndSelectAction ( vtkAbstractWidget * ) [static, protected]

static void vtkBorderWidget::MoveAction ( vtkAbstractWidget * ) [static, protected]

Reimplemented in vtkScalarBarWidget.

virtual int vtkBorderWidget::SubclassSelectAction ( ) [inline, protected, virtual]

Definition at line 151 of file vtkBorderWidget.h.

virtual int vtkBorderWidget::SubclassTranslateAction ( ) [inline, protected, virtual]

Definition at line 152 of file vtkBorderWidget.h.

virtual int vtkBorderWidget::SubclassEndSelectAction ( ) [inline, protected, virtual]

Definition at line 153 of file vtkBorderWidget.h.

virtual int vtkBorderWidget::SubclassMoveAction ( ) [inline, protected, virtual]

Definition at line 154 of file vtkBorderWidget.h.

virtual void vtkBorderWidget::SetCursor ( int State ) [protected, virtual]

Reimplemented in vtkScalarBarWidget.

Member Data Documentation

int vtkBorderWidget::Selectable [protected]

Definition at line 140 of file vtkBorderWidget.h.

int vtkBorderWidget::Resizable [protected]

Definition at line 141 of file vtkBorderWidget.h.

int vtkBorderWidget::WidgetState [protected]

Definition at line 161 of file vtkBorderWidget.h.

The documentation for this class was generated from the following file:

dox/Widgets/vtkBorderWidget.h
