View Issue Details [ Jump to Notes ]

[ Print ]

Project

Category

View Status

Date Submitted

Last Update

0007241

ParaView

(No Category)

public

2008-06-25 12:08

2009-05-13 13:47

Reporter

Jon Goldman

Assigned To

Utkarsh Ayachit

Priority

normal

Severity

minor

Reproducibility

always

Status

closed

Resolution

duplicate

Platform

OS Version

Product Version

Target Version

3.6

Fixed in Version

Summary

0007241: inconsistent behaviour and "site administrators" lockout with Application Data/ParaView/servers.pvsc

Description

I tested this on Windows only.

If the servers.pvsc file does not exist, then after running ParaView, one gets created. The next time ParaView is run, if you try to edit the servers settings, the Configure Server dialog comes up in a read-only mode, with the message, "This server was configured by site-administrators and cannot be modified" An (older) servers.pvsc that I have on my system does allow editing the parameters in the Configure Server dialog.

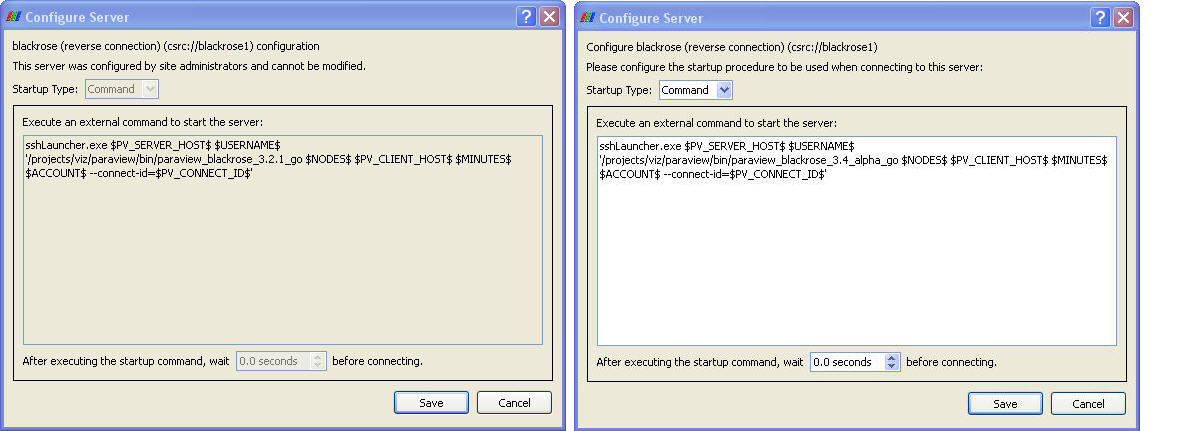

(see attached image)

It seems like ParaView should keep track of which file it initially gets the server settings from, or classify each setting as read, read/write, write, or something like that, so that it does a better job and not lock the user out from settings they want to edit.

Another idea, would be to always allow editing if the user checks a "edit" check box on the dialog.

Additional Information

The servers.pvsc file that allows editing in the configure server dialog looks like this:

<Servers>
  <Server name="Manual" resource="csrc://localhost">
    <ManualStartup/>
  </Server>
  <Server name="angren (reverse connection)" resource="csrc://angren">
    <CommandStartup>
      <Options>
        <Option name="NODES" label="Number of Nodes">
          <Range type="int" min="1" max="128" step="1" default="1"/>
        </Option>
        <Option name="MINUTES" label="Number of Minutes">
          <Range type="int" min="1" max="3600" step="15" default="60"/>
        </Option>
        <Option name="PV_CONNECT_ID" label="Connect ID">
          <Range type="int" min="1" max="99999999" step="1" default="random"/>
        </Option>
      </Options>
      <Command exec="sshLauncher.exe" timeout="120" delay="0">
        <Arguments>
          <Argument value="$PV_SERVER_HOST$"/>
          <Argument value="$USERNAME$"/>
          <Argument value="'/usr/local/viz/paraview/bin/paraview_mesa_3.2.1_go"/>
          <Argument value="$NODES$"/>
          <Argument value="$PV_CLIENT_HOST$"/>
          <Argument value="$MINUTES$"/>
          <Argument value="--connect-id=$PV_CONNECT_ID$'"/>
        </Arguments>
      </Command>
    </CommandStartup>
  </Server>
  <Server name="blackrose (reverse connection)" resource="csrc://blackrose1">
    <CommandStartup>
      <Command exec="sshLauncher.exe" timeout="0" delay="0" Arguments="0">
        <Arguments>
          <Argument value="$PV_SERVER_HOST$"/>
          <Argument value="$USERNAME$"/>
          <Argument value="'/projects/viz/paraview/bin/paraview_blackrose_3.4_alpha_go"/>
          <Argument value="$NODES$"/>
          <Argument value="$PV_CLIENT_HOST$"/>
          <Argument value="$MINUTES$"/>
          <Argument value="$ACCOUNT$"/>
          <Argument value="--connect-id=$PV_CONNECT_ID$'"/>
        </Arguments>
      </Command>
    </CommandStartup>
  </Server>
  <Server name="builtin" resource="builtin:">
    <ManualStartup/>
  </Server>
  <Server name="decline (reverse connection)" resource="csrc://decline">
    <CommandStartup>
      <Options>
        <Option name="NODES" label="Number of Nodes">
          <Range type="int" min="1" max="40" step="1" default="1"/>
        </Option>
        <Option name="PV_CONNECT_ID" label="Connect ID">
          <Range type="int" min="1" max="99999999" step="1" default="random"/>
        </Option>
      </Options>
      <Command exec="sshLauncher.exe" timeout="120" delay="0">
        <Arguments>
          <Argument value="$PV_SERVER_HOST$"/>
          <Argument value="$USERNAME$"/>
          <Argument value="'/projects/viz/paraview/bin/paraview_3.2.1_go"/>
          <Argument value="$NODES$"/>
          <Argument value="$PV_CLIENT_HOST$"/>
          <Argument value="--connect-id=$PV_CONNECT_ID$'"/>
        </Arguments>
      </Command>
    </CommandStartup>
  </Server>
  <Server name="decline wall (reverse connection)" resource="csrc://decline">
    <CommandStartup>
      <Options>
        <Option name="NODES" label="Number of Nodes">
          <Range type="int" min="1" max="40" step="1" default="18"/>
        </Option>
        <Option name="PV_CONNECT_ID" label="Connect ID">
          <Range type="int" min="1" max="99999999" step="1" default="random"/>
        </Option>
      </Options>
      <Command exec="sshLauncher.exe" timeout="120" delay="0">
        <Arguments>
          <Argument value="$PV_SERVER_HOST$"/>
          <Argument value="$USERNAME$"/>
          <Argument value="'/projects/viz/paraview/bin/paraview_wall_3.2.1_go"/>
          <Argument value="$NODES$"/>
          <Argument value="$PV_CLIENT_HOST$"/>
          <Argument value="--connect-id=$PV_CONNECT_ID$'"/>
        </Arguments>
      </Command>
    </CommandStartup>
  </Server>
  <Server name="erebor (reverse connection)" resource="csrc://erebor">
    <CommandStartup>
      <Options>
        <Option name="NODES" label="Number of Nodes">
          <Range type="int" min="1" max="128" step="1" default="1"/>
        </Option>
        <Option name="MINUTES" label="Number of Minutes">
          <Range type="int" min="1" max="3600" step="15" default="60"/>
        </Option>
        <Option name="PV_CONNECT_ID" label="Connect ID">
          <Range type="int" min="1" max="99999999" step="1" default="random"/>
        </Option>
      </Options>
      <Command exec="sshLauncher.exe" timeout="120" delay="0">
        <Arguments>
          <Argument value="$PV_SERVER_HOST$"/>
          <Argument value="$USERNAME$"/>
          <Argument value="'/usr/local/viz/paraview/bin/paraview_mesa_3.2.1_go"/>
          <Argument value="$NODES$"/>
          <Argument value="$PV_CLIENT_HOST$"/>
          <Argument value="$MINUTES$"/>
          <Argument value="--connect-id=$PV_CONNECT_ID$'"/>
        </Arguments>
      </Command>
    </CommandStartup>
  </Server>
  <Server name="koopa (reverse connection)" resource="csrc://koopa">
    <CommandStartup>
      <Options>
        <Option name="NODES" label="Number of Nodes">
          <Range type="int" min="1" max="128" step="1" default="1"/>
        </Option>
        <Option name="MINUTES" label="Number of Minutes">
          <Range type="int" min="1" max="3600" step="15" default="60"/>
        </Option>
        <Option name="PV_CONNECT_ID" label="Connect ID">
          <Range type="int" min="1" max="99999999" step="1" default="random"/>
        </Option>
      </Options>
      <Command exec="sshLauncher.exe" timeout="120" delay="0">
        <Arguments>
          <Argument value="$PV_SERVER_HOST$"/>
          <Argument value="$USERNAME$"/>
          <Argument value="'/usr/local/viz/paraview/bin/paraview_mesa_3.2.1_go"/>
          <Argument value="$NODES$"/>
          <Argument value="$PV_CLIENT_HOST$"/>
          <Argument value="$MINUTES$"/>
          <Argument value="--connect-id=$PV_CONNECT_ID$'"/>
        </Arguments>
      </Command>
    </CommandStartup>
  </Server>
  <Server name="liberty (reverse connection)" resource="csrc://liberty">
    <CommandStartup>
      <Options>
        <Option name="NODES" label="Number of Nodes">
          <Range type="int" min="1" max="128" step="1" default="1"/>
        </Option>
        <Option name="MINUTES" label="Number of Minutes">
          <Range type="int" min="1" max="3600" step="15" default="60"/>
        </Option>
        <Option name="ACCOUNT" label="Account">
          <String default="1234/5.6"/>
        </Option>
        <Option name="PV_CONNECT_ID" label="Connect ID">
          <Range type="int" min="1" max="99999999" step="1" default="random"/>
        </Option>
      </Options>
      <Command exec="sshLauncher.exe" timeout="120" delay="0">
        <Arguments>
          <Argument value="$PV_SERVER_HOST$"/>
          <Argument value="$USERNAME$"/>
          <Argument value="'/projects/viz/paraview/bin/paraview_spirit_mesa_3.2.1_go"/>
          <Argument value="$NODES$"/>
          <Argument value="$PV_CLIENT_HOST$"/>
          <Argument value="$MINUTES$"/>
          <Argument value="$ACCOUNT$"/>
          <Argument value="--connect-id=$PV_CONNECT_ID$'"/>
        </Arguments>
      </Command>
    </CommandStartup>
  </Server>
  <Server name="maverick (reverse connection)" resource="csrc://maverick">
    <CommandStartup>
      <Options>
        <Option name="NODES" label="Number of Nodes">
          <Range type="int" min="1" max="4" step="1" default="1"/>
        </Option>
        <Option name="PV_CONNECT_ID" label="Connect ID">
          <Range type="int" min="1" max="99999999" step="1" default="random"/>
        </Option>
      </Options>
      <Command exec="sshLauncher.exe" timeout="120" delay="0">
        <Arguments>
          <Argument value="$PV_SERVER_HOST$"/>
          <Argument value="$USERNAME$"/>
          <Argument value="'/projects/viz/paraview/bin/paraview_maverick_mesa_3.2.1_go"/>
          <Argument value="$NODES$"/>
          <Argument value="$PV_CLIENT_HOST$"/>
          <Argument value="--connect-id=$PV_CONNECT_ID$'"/>
        </Arguments>
      </Command>
    </CommandStartup>
  </Server>
  <Server name="rogue (reverse connection)" resource="csrc://rogue">
    <CommandStartup>
      <Options>
        <Option name="NODES" label="Number of Nodes">
          <Range type="int" min="1" max="128" step="1" default="1"/>
        </Option>
        <Option name="MINUTES" label="Number of Minutes">
          <Range type="int" min="1" max="3600" step="15" default="60"/>
        </Option>
        <Option name="ACCOUNT" label="Account">
          <String default="1234/5.6"/>
        </Option>
        <Option name="PV_CONNECT_ID" label="Connect ID">
          <Range type="int" min="1" max="99999999" step="1" default="random"/>
        </Option>
      </Options>
      <Command exec="sshLauncher.exe" timeout="120" delay="0">
        <Arguments>
          <Argument value="$PV_SERVER_HOST$"/>
          <Argument value="$USERNAME$"/>
          <Argument value="'/usr/local/viz/paraview/bin/paraview_mesa_3.2.1_go"/>
          <Argument value="$NODES$"/>
          <Argument value="$PV_CLIENT_HOST$"/>
          <Argument value="$MINUTES$"/>
          <Argument value="$ACCOUNT$"/>
          <Argument value="--connect-id=$PV_CONNECT_ID$'"/>
        </Arguments>
      </Command>
    </CommandStartup>
  </Server>
  <Server name="shasta (reverse connection)" resource="csrc://shasta.ran.sandia.gov">
    <CommandStartup>
      <Options>
        <Option name="NODES" label="Number of Nodes">
          <Range type="int" min="1" max="128" step="1" default="1"/>
        </Option>
        <Option name="MINUTES" label="Number of Minutes">
          <Range type="int" min="1" max="3600" step="15" default="60"/>
        </Option>
        <Option name="ACCOUNT" label="Account">
          <String default="1234/5.6"/>
        </Option>
        <Option name="PV_CONNECT_ID" label="Connect ID">
          <Range type="int" min="1" max="99999999" step="1" default="random"/>
        </Option>
      </Options>
      <Command exec="sshLauncher.exe" timeout="120" delay="0">
        <Arguments>
          <Argument value="$PV_SERVER_HOST$"/>
          <Argument value="$USERNAME$"/>
          <Argument value="'/projects/viz/paraview/bin/paraview_spirit_mesa_3.2.1_go"/>
          <Argument value="$NODES$"/>
          <Argument value="$PV_CLIENT_HOST$"/>
          <Argument value="$MINUTES$"/>
          <Argument value="$ACCOUNT$"/>
          <Argument value="--connect-id=$PV_CONNECT_ID$'"/>
        </Arguments>
      </Command>
    </CommandStartup>
  </Server>
  <Server name="spirit (reverse connection)" resource="csrc://spirit1">
    <CommandStartup>
      <Options>
        <Option name="NODES" label="Number of Nodes">
          <Range type="int" min="1" max="128" step="1" default="1"/>
        </Option>
        <Option name="MINUTES" label="Number of Minutes">
          <Range type="int" min="1" max="3600" step="15" default="60"/>
        </Option>
        <Option name="ACCOUNT" label="Account">
          <String default="1234/5.6"/>
        </Option>
        <Option name="PV_CONNECT_ID" label="Connect ID">
          <Range type="int" min="1" max="99999999" step="1" default="random"/>
        </Option>
      </Options>
      <Command exec="sshLauncher.exe" timeout="120" delay="0">
        <Arguments>
          <Argument value="$PV_SERVER_HOST$"/>
          <Argument value="$USERNAME$"/>
          <Argument value="'/projects/viz/paraview/bin/paraview_spirit_mesa_3.2.1_go"/>
          <Argument value="$NODES$"/>
          <Argument value="$PV_CLIENT_HOST$"/>
          <Argument value="$MINUTES$"/>
          <Argument value="$ACCOUNT$"/>
          <Argument value="--connect-id=$PV_CONNECT_ID$'"/>
        </Arguments>
      </Command>
    </CommandStartup>
  </Server>
  <Server name="thunderbird (reverse connection)" resource="csrc://alogin1">
    <CommandStartup>
      <Options>
        <Option name="NODES" label="Number of Nodes">
          <Range type="int" min="1" max="128" step="1" default="1"/>
        </Option>
        <Option name="MINUTES" label="Number of Minutes">
          <Range type="int" min="1" max="3600" step="15" default="60"/>
        </Option>
        <Option name="ACCOUNT" label="Account">
          <String default="1234/5.6"/>
        </Option>
        <Option name="PV_CONNECT_ID" label="Connect ID">
          <Range type="int" min="1" max="99999999" step="1" default="random"/>
        </Option>
      </Options>
      <Command exec="sshLauncher.exe" timeout="120" delay="0">
        <Arguments>
          <Argument value="$PV_SERVER_HOST$"/>
          <Argument value="$USERNAME$"/>
          <Argument value="'/projects/viz/paraview/bin/paraview_thunderbird_mesa_3.2.1_go"/>
          <Argument value="$NODES$"/>
          <Argument value="$PV_CLIENT_HOST$"/>
          <Argument value="$MINUTES$"/>
          <Argument value="$ACCOUNT$"/>
          <Argument value="--connect-id=$PV_CONNECT_ID$'"/>
        </Arguments>
      </Command>
    </CommandStartup>
  </Server>
</Servers>

Notes
(0016307) Utkarsh Ayachit (administrator) 2009-05-06 11:07	Duplicate of BUG 0008329. Hence resolving this one.

(0016310) Alan Scott (manager) 2009-05-06 13:04	Duplicate

Issue History
Date Modified	Username	Field	Change
2008-06-25 12:08	Jon Goldman	New Issue
2008-06-25 12:08	Jon Goldman	File Added: config-server.jpg
2009-02-17 18:57	Ken Moreland	Status	backlog => tabled
2009-02-17 18:57	Ken Moreland	Assigned To	=> Utkarsh Ayachit
2009-02-17 18:58	Ken Moreland	Category	Development => 3.6
2009-05-06 11:07	Utkarsh Ayachit	Note Added: 0016307
2009-05-06 11:07	Utkarsh Ayachit	Relationship added	duplicate of 0008329
2009-05-06 11:07	Utkarsh Ayachit	Duplicate ID	0 => 8329
2009-05-06 11:07	Utkarsh Ayachit	Status	tabled => @80@
2009-05-06 11:07	Utkarsh Ayachit	Resolution	open => duplicate
2009-05-06 13:04	Alan Scott	Note Added: 0016310
2009-05-06 13:04	Alan Scott	Status	@80@ => closed
2009-05-13 13:44	Utkarsh Ayachit	Target Version	=> 3.6
2011-06-16 13:10	Zack Galbreath	Category	=> (No Category)
