vtkBYUWriter Class Reference

write MOVIE.BYU files. More...

#include <vtkBYUWriter.h>

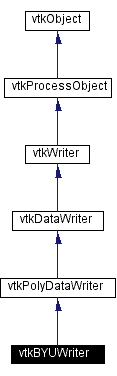

Inheritance diagram for vtkBYUWriter:

Inheritance graph
[legend]

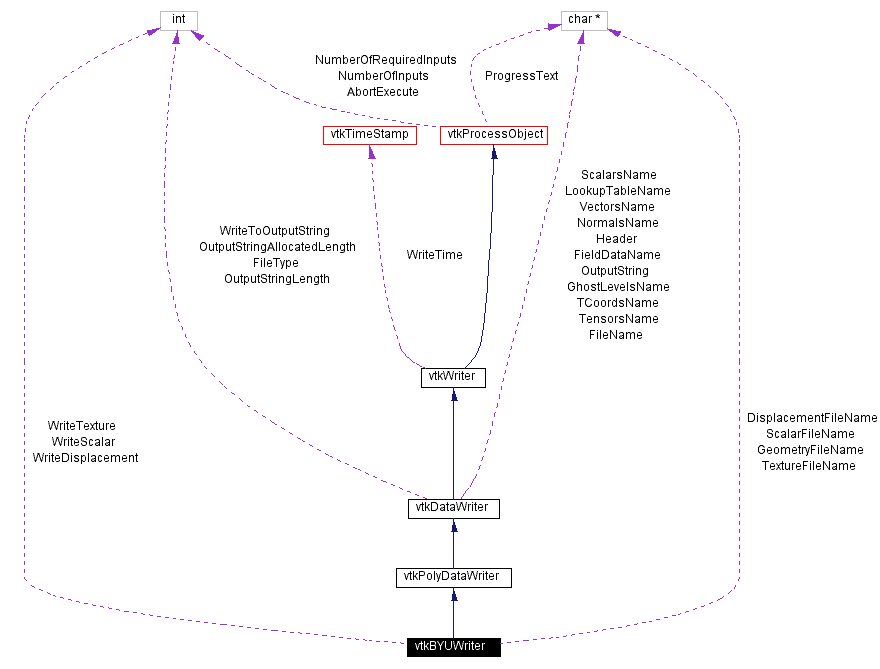

Collaboration diagram for vtkBYUWriter:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetGeometryFileName (const char *)
virtual char * GetGeometryFileName ()
virtual void SetDisplacementFileName (const char *)
virtual char * GetDisplacementFileName ()
virtual void SetScalarFileName (const char *)
virtual char * GetScalarFileName ()
virtual void SetTextureFileName (const char *)
virtual char * GetTextureFileName ()
virtual void SetWriteDisplacement (int)
virtual int GetWriteDisplacement ()
virtual void WriteDisplacementOn ()
virtual void WriteDisplacementOff ()
virtual void SetWriteScalar (int)
virtual int GetWriteScalar ()
virtual void WriteScalarOn ()
virtual void WriteScalarOff ()
virtual void SetWriteTexture (int)
virtual int GetWriteTexture ()
virtual void WriteTextureOn ()
virtual void WriteTextureOff ()

Static Public Methods

vtkBYUWriter * New ()
int IsTypeOf (const char *type)
vtkBYUWriter * SafeDownCast (vtkObject *o)

Protected Methods

 vtkBYUWriter ()
 ~vtkBYUWriter ()
 vtkBYUWriter (const vtkBYUWriter &)
void operator= (const vtkBYUWriter &)
void WriteData ()
void WriteGeometryFile (FILE *fp, int numPts)
void WriteDisplacementFile (int numPts)
void WriteScalarFile (int numPts)
void WriteTextureFile (int numPts)

Protected Attributes

char * GeometryFileName
char * DisplacementFileName
char * ScalarFileName
char * TextureFileName
int WriteDisplacement
int WriteScalar
int WriteTexture

Detailed Description

write MOVIE.BYU files.

Date:
2000/12/10 20:08:30
Revision:
1.35

vtkBYUWriter writes MOVIE.BYU polygonal files. These files consist of a geometry file (.g), a scalar file (.s), a displacement or vector file (.d), and a 2D texture coordinate file (.t). These files must be specified to the object, the appropriate boolean variables must be true, and data must be available from the input for the files to be written. WARNING: this writer does not currently write triangle strips. Use vtkTriangleFilter to convert strips to triangles.

Examples:
vtkBYUWriter (examples)

Definition at line 66 of file vtkBYUWriter.h.


Constructor & Destructor Documentation

vtkBYUWriter::vtkBYUWriter   [protected]


vtkBYUWriter::~vtkBYUWriter   [protected]


vtkBYUWriter::vtkBYUWriter const vtkBYUWriter &    [inline, protected]


Definition at line 108 of file vtkBYUWriter.h.


Member Function Documentation

vtkBYUWriter* vtkBYUWriter::New   [static]


Created object with default header, ASCII format, and default names for scalars, vectors, tensors, normals, and texture coordinates.

Reimplemented from vtkPolyDataWriter.

virtual const char* vtkBYUWriter::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataWriter.

int vtkBYUWriter::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataWriter.

virtual int vtkBYUWriter::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataWriter.

vtkBYUWriter* vtkBYUWriter::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataWriter.

void vtkBYUWriter::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataWriter.

virtual void vtkBYUWriter::SetGeometryFileName const char *    [virtual]


Specify the name of the geometry file to write.

virtual char* vtkBYUWriter::GetGeometryFileName   [virtual]


virtual void vtkBYUWriter::SetDisplacementFileName const char *    [virtual]


Specify the name of the displacement file to write.

virtual char* vtkBYUWriter::GetDisplacementFileName   [virtual]


virtual void vtkBYUWriter::SetScalarFileName const char *    [virtual]


Specify the name of the scalar file to write.

virtual char* vtkBYUWriter::GetScalarFileName   [virtual]


virtual void vtkBYUWriter::SetTextureFileName const char *    [virtual]


Specify the name of the texture file to write.

virtual char* vtkBYUWriter::GetTextureFileName   [virtual]


virtual void vtkBYUWriter::SetWriteDisplacement int    [virtual]


Turn on/off writing the displacement file.

virtual int vtkBYUWriter::GetWriteDisplacement   [virtual]


virtual void vtkBYUWriter::WriteDisplacementOn   [virtual]


virtual void vtkBYUWriter::WriteDisplacementOff   [virtual]


virtual void vtkBYUWriter::SetWriteScalar int    [virtual]


Turn on/off writing the scalar file.

virtual int vtkBYUWriter::GetWriteScalar   [virtual]


virtual void vtkBYUWriter::WriteScalarOn   [virtual]


virtual void vtkBYUWriter::WriteScalarOff   [virtual]


virtual void vtkBYUWriter::SetWriteTexture int    [virtual]


Turn on/off writing the texture file.

virtual int vtkBYUWriter::GetWriteTexture   [virtual]


virtual void vtkBYUWriter::WriteTextureOn   [virtual]


virtual void vtkBYUWriter::WriteTextureOff   [virtual]


void vtkBYUWriter::operator= const vtkBYUWriter &    [inline, protected]


Definition at line 109 of file vtkBYUWriter.h.

void vtkBYUWriter::WriteData   [protected, virtual]


Reimplemented from vtkPolyDataWriter.

void vtkBYUWriter::WriteGeometryFile FILE *    fp,
int    numPts
[protected]


void vtkBYUWriter::WriteDisplacementFile int    numPts [protected]


void vtkBYUWriter::WriteScalarFile int    numPts [protected]


void vtkBYUWriter::WriteTextureFile int    numPts [protected]



Member Data Documentation

char* vtkBYUWriter::GeometryFileName [protected]


Definition at line 113 of file vtkBYUWriter.h.

char* vtkBYUWriter::DisplacementFileName [protected]


Definition at line 114 of file vtkBYUWriter.h.

char* vtkBYUWriter::ScalarFileName [protected]


Definition at line 115 of file vtkBYUWriter.h.

char* vtkBYUWriter::TextureFileName [protected]


Definition at line 116 of file vtkBYUWriter.h.

int vtkBYUWriter::WriteDisplacement [protected]


Definition at line 117 of file vtkBYUWriter.h.

int vtkBYUWriter::WriteScalar [protected]


Definition at line 118 of file vtkBYUWriter.h.

int vtkBYUWriter::WriteTexture [protected]


Definition at line 119 of file vtkBYUWriter.h.


The documentation for this class was generated from the following file:
