vtkDataReader Class Reference

helper superclass for objects that read vtk data files. More...

#include <vtkDataReader.h>

Inheritance diagram for vtkDataReader:

Inheritance graph
[legend]

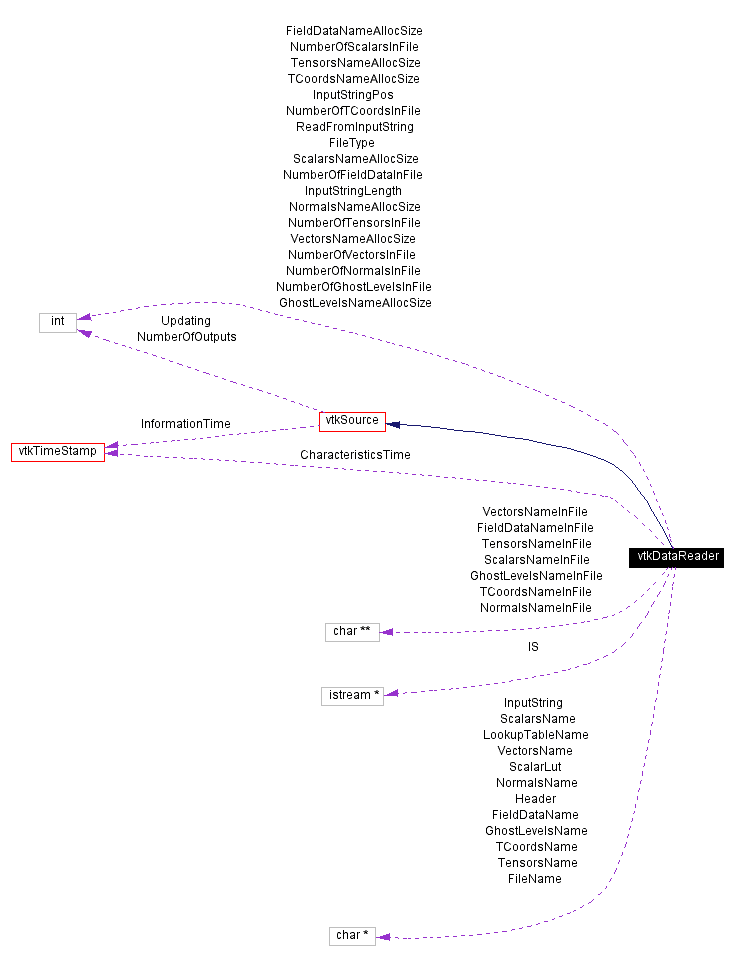

Collaboration diagram for vtkDataReader:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetFileName (const char *)
virtual char * GetFileName ()
int IsFileValid (const char *dstype)
int IsFileStructuredPoints ()
int IsFilePolyData ()
int IsFileStructuredGrid ()
int IsFileUnstructuredGrid ()
int IsFileRectilinearGrid ()
void SetInputString (const char *in)
virtual char * GetInputString ()
void SetInputString (const char *in, int len)
virtual int GetInputStringLength ()
void SetBinaryInputString (const char *, int len)
virtual char * GetHeader ()
virtual void SetReadFromInputString (int)
virtual int GetReadFromInputString ()
virtual void ReadFromInputStringOn ()
virtual void ReadFromInputStringOff ()
virtual int GetFileType ()
int GetNumberOfScalarsInFile ()
int GetNumberOfVectorsInFile ()
int GetNumberOfTensorsInFile ()
int GetNumberOfNormalsInFile ()
int GetNumberOfTCoordsInFile ()
int GetNumberOfFieldDataInFile ()
int GetNumberOfGhostLevelsInFile ()
const char * GetScalarsNameInFile (int i)
const char * GetVectorsNameInFile (int i)
const char * GetTensorsNameInFile (int i)
const char * GetNormalsNameInFile (int i)
const char * GetTCoordsNameInFile (int i)
const char * GetFieldDataNameInFile (int i)
const char * GetGhostLevelsNameInFile (int i)
virtual void SetScalarsName (const char *)
virtual char * GetScalarsName ()
virtual void SetVectorsName (const char *)
virtual char * GetVectorsName ()
virtual void SetTensorsName (const char *)
virtual char * GetTensorsName ()
virtual void SetGhostLevelsName (const char *)
virtual char * GetGhostLevelsName ()
virtual void SetNormalsName (const char *)
virtual char * GetNormalsName ()
virtual void SetTCoordsName (const char *)
virtual char * GetTCoordsName ()
virtual void SetLookupTableName (const char *)
virtual char * GetLookupTableName ()
virtual void SetFieldDataName (const char *)
virtual char * GetFieldDataName ()
int OpenVTKFile ()
int ReadHeader ()
int ReadCellData (vtkDataSet *ds, int numCells)
int ReadPointData (vtkDataSet *ds, int numPts)
int ReadPoints (vtkPointSet *ps, int numPts)
int ReadCells (int size, int *data)
int ReadCells (int size, int *data, int skip1, int read2, int skip3)
int ReadCoordinates (vtkRectilinearGrid *rg, int axes, int numCoords)
vtkDataArrayReadArray (const char *dataType, int numTuples, int numComp)
vtkFieldDataReadFieldData ()
int Read (char *)
int Read (unsigned char *)
int Read (short *)
int Read (unsigned short *)
int Read (int *)
int Read (unsigned int *)
int Read (long *)
int Read (unsigned long *)
int Read (float *)
int Read (double *)
void CloseVTKFile ()
int ReadLine (char result[256])
int ReadString (char result[256])
char * LowerCase (char *)
istream * GetIStream ()

Static Public Methods

vtkDataReader * New ()
int IsTypeOf (const char *type)
vtkDataReader * SafeDownCast (vtkObject *o)

Protected Methods

 vtkDataReader ()
 ~vtkDataReader ()
 vtkDataReader (const vtkDataReader &)
void operator= (const vtkDataReader &)
virtual void SetScalarLut (const char *)
virtual char * GetScalarLut ()
int ReadScalarData (vtkDataSetAttributes *a, int num)
int ReadVectorData (vtkDataSetAttributes *a, int num)
int ReadNormalData (vtkDataSetAttributes *a, int num)
int ReadTensorData (vtkDataSetAttributes *a, int num)
int ReadGhostLevelData (vtkDataSetAttributes *a, int num)
int ReadCoScalarData (vtkDataSetAttributes *a, int num)
int ReadLutData (vtkDataSetAttributes *a)
int ReadTCoordsData (vtkDataSetAttributes *a, int num)
int ReadDataSetData (vtkDataSet *ds)
void InitializeCharacteristics ()
int CharacterizeFile ()
void CheckFor (const char *name, char *line, int &num, char **&array, int &allocSize)

Protected Attributes

char * FileName
int FileType
istream * IS
char * ScalarsName
char * VectorsName
char * TensorsName
char * GhostLevelsName
char * TCoordsName
char * NormalsName
char * LookupTableName
char * FieldDataName
char * ScalarLut
int ReadFromInputString
char * InputString
int InputStringLength
int InputStringPos
char * Header
int NumberOfScalarsInFile
char ** ScalarsNameInFile
int ScalarsNameAllocSize
int NumberOfVectorsInFile
char ** VectorsNameInFile
int VectorsNameAllocSize
int NumberOfTensorsInFile
char ** TensorsNameInFile
int TensorsNameAllocSize
int NumberOfGhostLevelsInFile
char ** GhostLevelsNameInFile
int GhostLevelsNameAllocSize
int NumberOfTCoordsInFile
char ** TCoordsNameInFile
int TCoordsNameAllocSize
int NumberOfNormalsInFile
char ** NormalsNameInFile
int NormalsNameAllocSize
int NumberOfFieldDataInFile
char ** FieldDataNameInFile
int FieldDataNameAllocSize
vtkTimeStamp CharacteristicsTime

Detailed Description

helper superclass for objects that read vtk data files.

Date:
2000/12/10 20:08:34
Revision:
1.59

vtkDataReader is a helper superclass that reads the vtk data file header, dataset type, and attribute data (point and cell attributes such as scalars, vectors, normals, etc.) from a vtk data file. See text for the format of the various vtk file types.

See also:
vtkPolyDataReader vtkStructuredPointsReader vtkStructuredGridReader vtkUnsutructuredGridReader vtkRectilinearGridReader

Definition at line 68 of file vtkDataReader.h.


Constructor & Destructor Documentation

vtkDataReader::vtkDataReader   [protected]


vtkDataReader::~vtkDataReader   [protected]


vtkDataReader::vtkDataReader const vtkDataReader &    [inline, protected]


Definition at line 250 of file vtkDataReader.h.


Member Function Documentation

vtkDataReader* vtkDataReader::New   [static]


Instantiate object with no start, end, or progress methods.

Reimplemented from vtkSource.

Reimplemented in vtkDataObjectReader, vtkDataSetReader, vtkPolyDataReader, vtkRectilinearGridReader, vtkStructuredGridReader, vtkStructuredPointsReader, and vtkUnstructuredGridReader.

virtual const char* vtkDataReader::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkSource.

Reimplemented in vtkDataObjectReader, vtkDataSetReader, vtkPolyDataReader, vtkRectilinearGridReader, vtkStructuredGridReader, vtkStructuredPointsReader, and vtkUnstructuredGridReader.

int vtkDataReader::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkSource.

Reimplemented in vtkDataObjectReader, vtkDataSetReader, vtkPolyDataReader, vtkRectilinearGridReader, vtkStructuredGridReader, vtkStructuredPointsReader, and vtkUnstructuredGridReader.

virtual int vtkDataReader::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkSource.

Reimplemented in vtkDataObjectReader, vtkDataSetReader, vtkPolyDataReader, vtkRectilinearGridReader, vtkStructuredGridReader, vtkStructuredPointsReader, and vtkUnstructuredGridReader.

vtkDataReader* vtkDataReader::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkSource.

Reimplemented in vtkDataObjectReader, vtkDataSetReader, vtkPolyDataReader, vtkRectilinearGridReader, vtkStructuredGridReader, vtkStructuredPointsReader, and vtkUnstructuredGridReader.

void vtkDataReader::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkSource.

Reimplemented in vtkDataObjectReader, vtkDataSetReader, vtkPolyDataReader, vtkRectilinearGridReader, vtkStructuredGridReader, vtkStructuredPointsReader, and vtkUnstructuredGridReader.

virtual void vtkDataReader::SetFileName const char *    [virtual]


Specify file name of vtk data file to read.

virtual char* vtkDataReader::GetFileName   [virtual]


int vtkDataReader::IsFileValid const char *    dstype


Is the file a valid vtk file of the passed dataset type ? The dataset type is passed as a lower case string.

int vtkDataReader::IsFileStructuredPoints   [inline]


Definition at line 82 of file vtkDataReader.h.

int vtkDataReader::IsFilePolyData   [inline]


Definition at line 84 of file vtkDataReader.h.

int vtkDataReader::IsFileStructuredGrid   [inline]


Definition at line 86 of file vtkDataReader.h.

int vtkDataReader::IsFileUnstructuredGrid   [inline]


Definition at line 88 of file vtkDataReader.h.

int vtkDataReader::IsFileRectilinearGrid   [inline]


Definition at line 90 of file vtkDataReader.h.

void vtkDataReader::SetInputString const char *    in


Specify the InputString for use when reading from a character array. Optionally include the length for binary strings.

virtual char* vtkDataReader::GetInputString   [virtual]


void vtkDataReader::SetInputString const char *    in,
int    len


virtual int vtkDataReader::GetInputStringLength   [virtual]


void vtkDataReader::SetBinaryInputString const char *   ,
int    len


virtual char* vtkDataReader::GetHeader   [virtual]


Get the header from the vtk data file.

virtual void vtkDataReader::SetReadFromInputString int    [virtual]


Enable reading from an InputString instead of the default, a file.

virtual int vtkDataReader::GetReadFromInputString   [virtual]


virtual void vtkDataReader::ReadFromInputStringOn   [virtual]


virtual void vtkDataReader::ReadFromInputStringOff   [virtual]


virtual int vtkDataReader::GetFileType   [virtual]


Get the type of file (ASCII or BINARY). Returned value only valid after file has been read.

int vtkDataReader::GetNumberOfScalarsInFile   [inline]


How many attributes of various types are in this file? This requires reading the file, so the filename must be set prior to invoking this operation. (Note: file characteristics are cached, so only a single read is necessary to return file characteristics.)

Definition at line 117 of file vtkDataReader.h.

int vtkDataReader::GetNumberOfVectorsInFile   [inline]


Definition at line 119 of file vtkDataReader.h.

int vtkDataReader::GetNumberOfTensorsInFile   [inline]


Definition at line 121 of file vtkDataReader.h.

int vtkDataReader::GetNumberOfNormalsInFile   [inline]


Definition at line 123 of file vtkDataReader.h.

int vtkDataReader::GetNumberOfTCoordsInFile   [inline]


Definition at line 125 of file vtkDataReader.h.

int vtkDataReader::GetNumberOfFieldDataInFile   [inline]


Definition at line 127 of file vtkDataReader.h.

int vtkDataReader::GetNumberOfGhostLevelsInFile   [inline]


Definition at line 129 of file vtkDataReader.h.

const char* vtkDataReader::GetScalarsNameInFile int    i


What is the name of the ith attribute of a certain type in this file? This requires reading the file, so the filename must be set prior to invoking this operation.

const char* vtkDataReader::GetVectorsNameInFile int    i


const char* vtkDataReader::GetTensorsNameInFile int    i


const char* vtkDataReader::GetNormalsNameInFile int    i


const char* vtkDataReader::GetTCoordsNameInFile int    i


const char* vtkDataReader::GetFieldDataNameInFile int    i


const char* vtkDataReader::GetGhostLevelsNameInFile int    i


virtual void vtkDataReader::SetScalarsName const char *    [virtual]


Set the name of the scalar data to extract. If not specified, first scalar data encountered is extracted.

virtual char* vtkDataReader::GetScalarsName   [virtual]


virtual void vtkDataReader::SetVectorsName const char *    [virtual]


Set the name of the vector data to extract. If not specified, first vector data encountered is extracted.

virtual char* vtkDataReader::GetVectorsName   [virtual]


virtual void vtkDataReader::SetTensorsName const char *    [virtual]


Set the name of the tensor data to extract. If not specified, first tensor data encountered is extracted.

virtual char* vtkDataReader::GetTensorsName   [virtual]


virtual void vtkDataReader::SetGhostLevelsName const char *    [virtual]


Set the name of the ghost level data to extract. If not specified, first ghost level data encountered is extracted.

virtual char* vtkDataReader::GetGhostLevelsName   [virtual]


virtual void vtkDataReader::SetNormalsName const char *    [virtual]


Set the name of the normal data to extract. If not specified, first normal data encountered is extracted.

virtual char* vtkDataReader::GetNormalsName   [virtual]


virtual void vtkDataReader::SetTCoordsName const char *    [virtual]


Set the name of the texture coordinate data to extract. If not specified, first texture coordinate data encountered is extracted.

virtual char* vtkDataReader::GetTCoordsName   [virtual]


virtual void vtkDataReader::SetLookupTableName const char *    [virtual]


Set the name of the lookup table data to extract. If not specified, uses lookup table named by scalar. Otherwise, this specification supersedes.

virtual char* vtkDataReader::GetLookupTableName   [virtual]


virtual void vtkDataReader::SetFieldDataName const char *    [virtual]


Set the name of the field data to extract. If not specified, uses first field data encountered in file.

virtual char* vtkDataReader::GetFieldDataName   [virtual]


int vtkDataReader::OpenVTKFile


Open a vtk data file. Returns zero if error.

int vtkDataReader::ReadHeader


Read the header of a vtk data file. Returns 0 if error.

int vtkDataReader::ReadCellData vtkDataSet   ds,
int    numCells


Read the cell data of a vtk data file. The number of cells (from the dataset) must match the number of cells defined in cell attributes (unless no geometry was defined).

int vtkDataReader::ReadPointData vtkDataSet   ds,
int    numPts


Read the point data of a vtk data file. The number of points (from the dataset) must match the number of points defined in point attributes (unless no geometry was defined).

int vtkDataReader::ReadPoints vtkPointSet   ps,
int    numPts


Read point coordinates. Return 0 if error.

int vtkDataReader::ReadCells int    size,
int *    data


Read a bunch of "cells". Return 0 if error.

int vtkDataReader::ReadCells int    size,
int *    data,
int    skip1,
int    read2,
int    skip3


Read a piece of the cells (for streaming compliance)

int vtkDataReader::ReadCoordinates vtkRectilinearGrid   rg,
int    axes,
int    numCoords


Read the coordinates for a rectilinear grid. The axes parameter specifies which coordinate axes (0,1,2) is being read.

vtkDataArray* vtkDataReader::ReadArray const char *    dataType,
int    numTuples,
int    numComp


Helper functions for reading data.

vtkFieldData* vtkDataReader::ReadFieldData


int vtkDataReader::Read char *


Internal function to read in a value. Returns zero if there was an error.

int vtkDataReader::Read unsigned char *


int vtkDataReader::Read short *


int vtkDataReader::Read unsigned short *


int vtkDataReader::Read int *


int vtkDataReader::Read unsigned int *


int vtkDataReader::Read long *


int vtkDataReader::Read unsigned long *


int vtkDataReader::Read float *


int vtkDataReader::Read double *


void vtkDataReader::CloseVTKFile


Close the vtk file.

int vtkDataReader::ReadLine char    result[256]


Internal function to read in a line up to 256 characters. Returns zero if there was an error.

int vtkDataReader::ReadString char    result[256]


Internal function to read in a string up to 256 characters. Returns zero if there was an error.

char* vtkDataReader::LowerCase char *


Helper method for reading in data.

istream* vtkDataReader::GetIStream   [inline]


Return the istream being used to read in the data.

Definition at line 245 of file vtkDataReader.h.

void vtkDataReader::operator= const vtkDataReader &    [inline, protected]


Definition at line 251 of file vtkDataReader.h.

virtual void vtkDataReader::SetScalarLut const char *    [protected, virtual]


virtual char* vtkDataReader::GetScalarLut   [protected, virtual]


int vtkDataReader::ReadScalarData vtkDataSetAttributes   a,
int    num
[protected]


int vtkDataReader::ReadVectorData vtkDataSetAttributes   a,
int    num
[protected]


int vtkDataReader::ReadNormalData vtkDataSetAttributes   a,
int    num
[protected]


int vtkDataReader::ReadTensorData vtkDataSetAttributes   a,
int    num
[protected]


int vtkDataReader::ReadGhostLevelData vtkDataSetAttributes   a,
int    num
[protected]


int vtkDataReader::ReadCoScalarData vtkDataSetAttributes   a,
int    num
[protected]


int vtkDataReader::ReadLutData vtkDataSetAttributes   a [protected]


int vtkDataReader::ReadTCoordsData vtkDataSetAttributes   a,
int    num
[protected]


int vtkDataReader::ReadDataSetData vtkDataSet   ds [protected]


void vtkDataReader::InitializeCharacteristics   [protected]


int vtkDataReader::CharacterizeFile   [protected]


void vtkDataReader::CheckFor const char *    name,
char *    line,
int &    num,
char **&    array,
int &    allocSize
[protected]



Member Data Documentation

char* vtkDataReader::FileName [protected]


Definition at line 253 of file vtkDataReader.h.

int vtkDataReader::FileType [protected]


Definition at line 254 of file vtkDataReader.h.

istream* vtkDataReader::IS [protected]


Definition at line 255 of file vtkDataReader.h.

char* vtkDataReader::ScalarsName [protected]


Definition at line 257 of file vtkDataReader.h.

char* vtkDataReader::VectorsName [protected]


Definition at line 258 of file vtkDataReader.h.

char* vtkDataReader::TensorsName [protected]


Definition at line 259 of file vtkDataReader.h.

char* vtkDataReader::GhostLevelsName [protected]


Definition at line 260 of file vtkDataReader.h.

char* vtkDataReader::TCoordsName [protected]


Definition at line 261 of file vtkDataReader.h.

char* vtkDataReader::NormalsName [protected]


Definition at line 262 of file vtkDataReader.h.

char* vtkDataReader::LookupTableName [protected]


Definition at line 263 of file vtkDataReader.h.

char* vtkDataReader::FieldDataName [protected]


Definition at line 264 of file vtkDataReader.h.

char* vtkDataReader::ScalarLut [protected]


Definition at line 265 of file vtkDataReader.h.

int vtkDataReader::ReadFromInputString [protected]


Definition at line 267 of file vtkDataReader.h.

char* vtkDataReader::InputString [protected]


Definition at line 268 of file vtkDataReader.h.

int vtkDataReader::InputStringLength [protected]


Definition at line 269 of file vtkDataReader.h.

int vtkDataReader::InputStringPos [protected]


Definition at line 270 of file vtkDataReader.h.

char* vtkDataReader::Header [protected]


Definition at line 275 of file vtkDataReader.h.

int vtkDataReader::NumberOfScalarsInFile [protected]


Definition at line 289 of file vtkDataReader.h.

char** vtkDataReader::ScalarsNameInFile [protected]


Definition at line 290 of file vtkDataReader.h.

int vtkDataReader::ScalarsNameAllocSize [protected]


Definition at line 291 of file vtkDataReader.h.

int vtkDataReader::NumberOfVectorsInFile [protected]


Definition at line 292 of file vtkDataReader.h.

char** vtkDataReader::VectorsNameInFile [protected]


Definition at line 293 of file vtkDataReader.h.

int vtkDataReader::VectorsNameAllocSize [protected]


Definition at line 294 of file vtkDataReader.h.

int vtkDataReader::NumberOfTensorsInFile [protected]


Definition at line 295 of file vtkDataReader.h.

char** vtkDataReader::TensorsNameInFile [protected]


Definition at line 296 of file vtkDataReader.h.

int vtkDataReader::TensorsNameAllocSize [protected]


Definition at line 297 of file vtkDataReader.h.

int vtkDataReader::NumberOfGhostLevelsInFile [protected]


Definition at line 298 of file vtkDataReader.h.

char** vtkDataReader::GhostLevelsNameInFile [protected]


Definition at line 299 of file vtkDataReader.h.

int vtkDataReader::GhostLevelsNameAllocSize [protected]


Definition at line 300 of file vtkDataReader.h.

int vtkDataReader::NumberOfTCoordsInFile [protected]


Definition at line 301 of file vtkDataReader.h.

char** vtkDataReader::TCoordsNameInFile [protected]


Definition at line 302 of file vtkDataReader.h.

int vtkDataReader::TCoordsNameAllocSize [protected]


Definition at line 303 of file vtkDataReader.h.

int vtkDataReader::NumberOfNormalsInFile [protected]


Definition at line 304 of file vtkDataReader.h.

char** vtkDataReader::NormalsNameInFile [protected]


Definition at line 305 of file vtkDataReader.h.

int vtkDataReader::NormalsNameAllocSize [protected]


Definition at line 306 of file vtkDataReader.h.

int vtkDataReader::NumberOfFieldDataInFile [protected]


Definition at line 307 of file vtkDataReader.h.

char** vtkDataReader::FieldDataNameInFile [protected]


Definition at line 308 of file vtkDataReader.h.

int vtkDataReader::FieldDataNameAllocSize [protected]


Definition at line 309 of file vtkDataReader.h.

vtkTimeStamp vtkDataReader::CharacteristicsTime [protected]


Definition at line 310 of file vtkDataReader.h.


The documentation for this class was generated from the following file:
Generated on Wed Nov 21 12:47:18 2001 for VTK by doxygen1.2.11.1 written by Dimitri van Heesch, © 1997-2001
