vtkImageCorrelation Class Reference

Correlation imageof the two inputs. More...

#include <vtkImageCorrelation.h>

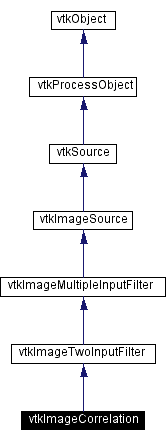

Inheritance diagram for vtkImageCorrelation:

Inheritance graph
[legend]
Collaboration diagram for vtkImageCorrelation:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetDimensionality (int)
virtual int GetDimensionality ()

Static Public Methods

vtkImageCorrelation * New ()
int IsTypeOf (const char *type)
vtkImageCorrelation * SafeDownCast (vtkObject *o)

Protected Methods

 vtkImageCorrelation ()
 ~vtkImageCorrelation ()
 vtkImageCorrelation (const vtkImageCorrelation &)
void operator= (const vtkImageCorrelation &)
void ExecuteInformation (vtkImageData **inDatas, vtkImageData *outData)
virtual void ComputeInputUpdateExtent (int inExt[6], int outExt[6], int whichInput)
void ExecuteInformation ()
void ThreadedExecute (vtkImageData **inDatas, vtkImageData *outData, int extent[6], int id)

Protected Attributes

int Dimensionality

Detailed Description

Correlation imageof the two inputs.

Date:
2000/12/10 20:09:04
Revision:
1.18
Thanks:
Thanks to C. Charles Law who developed this class.
vtkImageCorrelation finds the correlation between two data sets. SetDimensionality determines whether the Correlation will be 3D, 2D or 1D. The default is a 2D Correlation. The Output type will be float. The output size will match the size of the first input. The second input is considered the correlation kernel.
Examples:
vtkImageCorrelation (examples)

Definition at line 65 of file vtkImageCorrelation.h.


Constructor & Destructor Documentation

vtkImageCorrelation::vtkImageCorrelation   [protected]


vtkImageCorrelation::~vtkImageCorrelation   [inline, protected]


Definition at line 78 of file vtkImageCorrelation.h.

vtkImageCorrelation::vtkImageCorrelation const vtkImageCorrelation &    [inline, protected]


Definition at line 79 of file vtkImageCorrelation.h.


Member Function Documentation

vtkImageCorrelation* vtkImageCorrelation::New   [static]


Instantiate object with no start, end, or progress methods.

Reimplemented from vtkImageTwoInputFilter.

virtual const char* vtkImageCorrelation::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageTwoInputFilter.

int vtkImageCorrelation::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageTwoInputFilter.

virtual int vtkImageCorrelation::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageTwoInputFilter.

vtkImageCorrelation* vtkImageCorrelation::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageTwoInputFilter.

void vtkImageCorrelation::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageMultipleInputFilter.

virtual void vtkImageCorrelation::SetDimensionality int    [virtual]


Determines how the input is interpreted (set of 2d slices ...)

virtual int vtkImageCorrelation::GetDimensionality   [virtual]


void vtkImageCorrelation::operator= const vtkImageCorrelation &    [inline, protected]


Definition at line 80 of file vtkImageCorrelation.h.

void vtkImageCorrelation::ExecuteInformation vtkImageData **    inDatas,
vtkImageData   outData
[protected, virtual]


Reimplemented from vtkImageMultipleInputFilter.

virtual void vtkImageCorrelation::ComputeInputUpdateExtent int    inExt[6],
int    outExt[6],
int    whichInput
[protected, virtual]


Reimplemented from vtkImageMultipleInputFilter.

void vtkImageCorrelation::ExecuteInformation   [inline, protected, virtual]


Reimplemented from vtkImageMultipleInputFilter.

Definition at line 86 of file vtkImageCorrelation.h.

void vtkImageCorrelation::ThreadedExecute vtkImageData **    inDatas,
vtkImageData   outData,
int    extent[6],
int    id
[protected, virtual]


The execute method created by the subclass. This is kept public instead of protected since it is called from a non-member thread function.

Reimplemented from vtkImageMultipleInputFilter.


Member Data Documentation

int vtkImageCorrelation::Dimensionality [protected]


Definition at line 82 of file vtkImageCorrelation.h.


The documentation for this class was generated from the following file:
