vtkImageNonMaximumSuppression Class Reference

Performs non-maximum suppression. More...

#include <vtkImageNonMaximumSuppression.h>

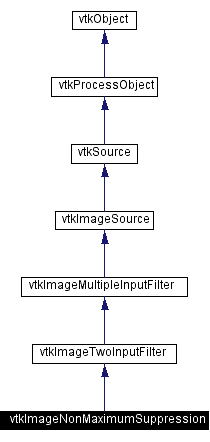

Inheritance diagram for vtkImageNonMaximumSuppression:

Inheritance graph
[legend]

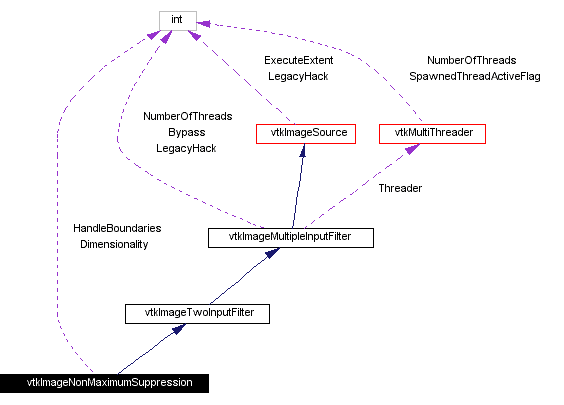

Collaboration diagram for vtkImageNonMaximumSuppression:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void SetMagnitudeInput (vtkImageData *input)
void SetVectorInput (vtkImageData *input)
virtual void SetHandleBoundaries (int)
virtual int GetHandleBoundaries ()
virtual void HandleBoundariesOn ()
virtual void HandleBoundariesOff ()
virtual void SetDimensionality (int)
virtual int GetDimensionality ()

Static Public Methods

vtkImageNonMaximumSuppression * New ()
int IsTypeOf (const char *type)
vtkImageNonMaximumSuppression * SafeDownCast (vtkObject *o)

Protected Methods

 vtkImageNonMaximumSuppression ()
 ~vtkImageNonMaximumSuppression ()
 vtkImageNonMaximumSuppression (const vtkImageNonMaximumSuppression &)
void operator= (const vtkImageNonMaximumSuppression &)
void ExecuteInformation (vtkImageData **inDatas, vtkImageData *outData)
virtual void ComputeInputUpdateExtent (int inExt[6], int outExt[6], int whichInput)
void ExecuteInformation ()
void ThreadedExecute (vtkImageData **inDatas, vtkImageData *outData, int extent[6], int id)

Protected Attributes

int HandleBoundaries
int Dimensionality

Detailed Description

Performs non-maximum suppression.

Date:
2000/12/10 20:09:09
Revision:
1.29
Thanks:
Thanks to C. Charles Law who developed this class.
vtkImageNonMaximumSuppression Sets to zero any pixel that is not a peak. If a pixel has a neighbor along the vector that has larger magnitude, the smaller pixel is set to zero. The filter takes two inputs: a magnitude and a vector. Output is magnitude information and is always in floats. Typically this filter is used with vtkImageGradient and vtkImageGradientMagnitude as inputs.
Examples:
vtkImageNonMaximumSuppression (examples)

Definition at line 66 of file vtkImageNonMaximumSuppression.h.


Constructor & Destructor Documentation

vtkImageNonMaximumSuppression::vtkImageNonMaximumSuppression   [protected]


vtkImageNonMaximumSuppression::~vtkImageNonMaximumSuppression   [inline, protected]


Definition at line 90 of file vtkImageNonMaximumSuppression.h.

vtkImageNonMaximumSuppression::vtkImageNonMaximumSuppression const vtkImageNonMaximumSuppression &    [inline, protected]


Definition at line 91 of file vtkImageNonMaximumSuppression.h.


Member Function Documentation

vtkImageNonMaximumSuppression* vtkImageNonMaximumSuppression::New   [static]


Instantiate object with no start, end, or progress methods.

Reimplemented from vtkImageTwoInputFilter.

virtual const char* vtkImageNonMaximumSuppression::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageTwoInputFilter.

int vtkImageNonMaximumSuppression::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageTwoInputFilter.

virtual int vtkImageNonMaximumSuppression::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageTwoInputFilter.

vtkImageNonMaximumSuppression* vtkImageNonMaximumSuppression::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageTwoInputFilter.

void vtkImageNonMaximumSuppression::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageMultipleInputFilter.

void vtkImageNonMaximumSuppression::SetMagnitudeInput vtkImageData   input [inline]


Set the magnitude and vector inputs.

Definition at line 74 of file vtkImageNonMaximumSuppression.h.

void vtkImageNonMaximumSuppression::SetVectorInput vtkImageData   input [inline]


Definition at line 75 of file vtkImageNonMaximumSuppression.h.

virtual void vtkImageNonMaximumSuppression::SetHandleBoundaries int    [virtual]


If "HandleBoundariesOn" then boundary pixels are duplicated So central differences can get values.

virtual int vtkImageNonMaximumSuppression::GetHandleBoundaries   [virtual]


virtual void vtkImageNonMaximumSuppression::HandleBoundariesOn   [virtual]


virtual void vtkImageNonMaximumSuppression::HandleBoundariesOff   [virtual]


virtual void vtkImageNonMaximumSuppression::SetDimensionality int    [virtual]


Determines how the input is interpreted (set of 2d slices or a 3D volume)

virtual int vtkImageNonMaximumSuppression::GetDimensionality   [virtual]


void vtkImageNonMaximumSuppression::operator= const vtkImageNonMaximumSuppression &    [inline, protected]


Definition at line 92 of file vtkImageNonMaximumSuppression.h.

void vtkImageNonMaximumSuppression::ExecuteInformation vtkImageData **    inDatas,
vtkImageData   outData
[protected, virtual]


Reimplemented from vtkImageMultipleInputFilter.

virtual void vtkImageNonMaximumSuppression::ComputeInputUpdateExtent int    inExt[6],
int    outExt[6],
int    whichInput
[protected, virtual]


Reimplemented from vtkImageMultipleInputFilter.

void vtkImageNonMaximumSuppression::ExecuteInformation   [inline, protected, virtual]


Reimplemented from vtkImageMultipleInputFilter.

Definition at line 100 of file vtkImageNonMaximumSuppression.h.

void vtkImageNonMaximumSuppression::ThreadedExecute vtkImageData **    inDatas,
vtkImageData   outData,
int    extent[6],
int    id
[protected, virtual]


The execute method created by the subclass. This is kept public instead of protected since it is called from a non-member thread function.

Reimplemented from vtkImageMultipleInputFilter.


Member Data Documentation

int vtkImageNonMaximumSuppression::HandleBoundaries [protected]


Definition at line 94 of file vtkImageNonMaximumSuppression.h.

int vtkImageNonMaximumSuppression::Dimensionality [protected]


Definition at line 95 of file vtkImageNonMaximumSuppression.h.


The documentation for this class was generated from the following file:
