vtkVolumeRayCastIsosurfaceFunction Class Reference

An isosurface ray caster for volumes. More...

#include <vtkVolumeRayCastIsosurfaceFunction.h>

Inheritance diagram for vtkVolumeRayCastIsosurfaceFunction:

Inheritance graph
[legend]

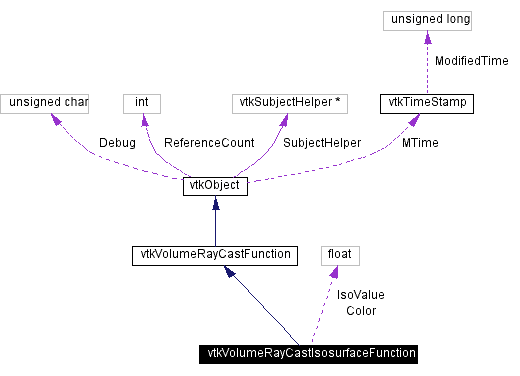

Collaboration diagram for vtkVolumeRayCastIsosurfaceFunction:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent index)
float GetZeroOpacityThreshold (vtkVolume *vol)
virtual void SetIsoValue (float)
virtual float GetIsoValue ()
void CastRay (VTKRayCastRayInfo *rayInfo, VTKRayCastVolumeInfo *volumeInfo)

Static Public Methods

int IsTypeOf (const char *type)
vtkVolumeRayCastIsosurfaceFunction * SafeDownCast (vtkObject *o)
vtkVolumeRayCastIsosurfaceFunction * New ()

Public Attributes

float IsoValue
float Color [3]

Protected Methods

 vtkVolumeRayCastIsosurfaceFunction ()
 ~vtkVolumeRayCastIsosurfaceFunction ()
 vtkVolumeRayCastIsosurfaceFunction (const vtkVolumeRayCastIsosurfaceFunction &)
void operator= (const vtkVolumeRayCastIsosurfaceFunction &)
void SpecificFunctionInitialize (vtkRenderer *ren, vtkVolume *vol, VTKRayCastVolumeInfo *volumeInfo, vtkVolumeRayCastMapper *mapper)

Detailed Description

An isosurface ray caster for volumes.

Date:
2000/12/10 20:08:59
Revision:
1.18

vtkVolumeRayCastIsosurfaceFunction is a volume ray cast function that intersects a ray with an analytic isosurface in a scalar field. The color and shading parameters are defined in the vtkVolumeProperty of the vtkVolume, as well as the interpolation type to use when locating the surface (either a nearest neighbor approach or a tri-linear interpolation approach)

See also:
vtkVolumeRayCastFunction vtkVolumeRayCastMapper vtkVolumeProperty vtkVolumeRayCastCompositeFunction vtkVolumeRayCastMIPFunction vtkVolume vtkVolumeProperty
Examples:
vtkVolumeRayCastIsosurfaceFunction (examples)

Definition at line 67 of file vtkVolumeRayCastIsosurfaceFunction.h.


Constructor & Destructor Documentation

vtkVolumeRayCastIsosurfaceFunction::vtkVolumeRayCastIsosurfaceFunction   [protected]


vtkVolumeRayCastIsosurfaceFunction::~vtkVolumeRayCastIsosurfaceFunction   [protected]


vtkVolumeRayCastIsosurfaceFunction::vtkVolumeRayCastIsosurfaceFunction const vtkVolumeRayCastIsosurfaceFunction &    [inline, protected]


Definition at line 98 of file vtkVolumeRayCastIsosurfaceFunction.h.


Member Function Documentation

virtual const char* vtkVolumeRayCastIsosurfaceFunction::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkVolumeRayCastFunction.

int vtkVolumeRayCastIsosurfaceFunction::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkVolumeRayCastFunction.

virtual int vtkVolumeRayCastIsosurfaceFunction::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkVolumeRayCastFunction.

vtkVolumeRayCastIsosurfaceFunction* vtkVolumeRayCastIsosurfaceFunction::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkVolumeRayCastFunction.

void vtkVolumeRayCastIsosurfaceFunction::PrintSelf ostream &    os,
vtkIndent    index
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

vtkVolumeRayCastIsosurfaceFunction* vtkVolumeRayCastIsosurfaceFunction::New   [static]


Construct a new vtkVolumeRayCastIsosurfaceFunction

Reimplemented from vtkObject.

float vtkVolumeRayCastIsosurfaceFunction::GetZeroOpacityThreshold vtkVolume   vol [virtual]


Get the scalar value below which all scalar values have 0 opacity

Reimplemented from vtkVolumeRayCastFunction.

virtual void vtkVolumeRayCastIsosurfaceFunction::SetIsoValue float    [virtual]


Set/Get the value of IsoValue.

virtual float vtkVolumeRayCastIsosurfaceFunction::GetIsoValue   [virtual]


void vtkVolumeRayCastIsosurfaceFunction::CastRay VTKRayCastRayInfo   rayInfo,
VTKRayCastVolumeInfo   volumeInfo
[virtual]


Reimplemented from vtkVolumeRayCastFunction.

void vtkVolumeRayCastIsosurfaceFunction::operator= const vtkVolumeRayCastIsosurfaceFunction &    [inline, protected]


Definition at line 99 of file vtkVolumeRayCastIsosurfaceFunction.h.

void vtkVolumeRayCastIsosurfaceFunction::SpecificFunctionInitialize vtkRenderer   ren,
vtkVolume   vol,
VTKRayCastVolumeInfo   volumeInfo,
vtkVolumeRayCastMapper   mapper
[protected, virtual]


This method gives the subclass a chance to do any special initialization that it may need to do BTX

Reimplemented from vtkVolumeRayCastFunction.


Member Data Documentation

float vtkVolumeRayCastIsosurfaceFunction::IsoValue


This is the isovalue at which to view a surface

Definition at line 85 of file vtkVolumeRayCastIsosurfaceFunction.h.

float vtkVolumeRayCastIsosurfaceFunction::Color[3]


These variables are filled in by SpecificFunctionInitialize

Definition at line 88 of file vtkVolumeRayCastIsosurfaceFunction.h.


The documentation for this class was generated from the following file:
