vtkArcPlotter Class Reference
plot data along an arbitrary polyline.
More...
#include <vtkArcPlotter.h>
Inheritance diagram for vtkArcPlotter:

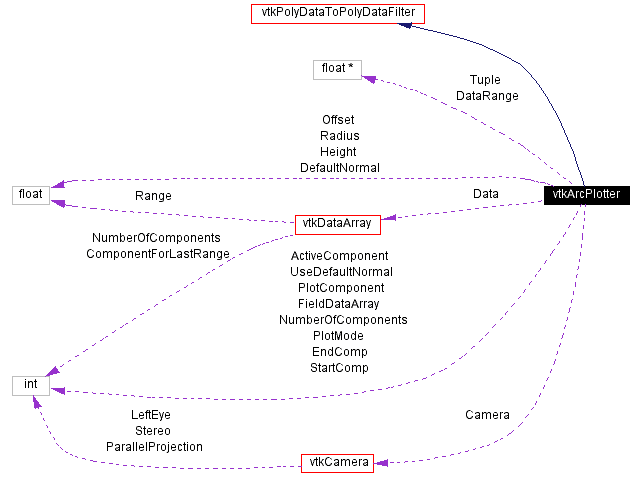

[legend]Collaboration diagram for vtkArcPlotter:
[legend]List of all members.
Public Methods |
| virtual const char * | GetClassName () |
| virtual int | IsA (const char *type) |
| void | PrintSelf (ostream &os, vtkIndent indent) |
| unsigned long | GetMTime () |
|
| virtual void | SetCamera (vtkCamera *) |
| virtual vtkCamera * | GetCamera () |
|
| virtual void | SetPlotMode (int) |
| virtual int | GetPlotMode () |
| void | SetPlotModeToPlotScalars () |
| void | SetPlotModeToPlotVectors () |
| void | SetPlotModeToPlotNormals () |
| void | SetPlotModeToPlotTCoords () |
| void | SetPlotModeToPlotTensors () |
| void | SetPlotModeToPlotFieldData () |
|
| virtual void | SetPlotComponent (int) |
| virtual int | GetPlotComponent () |
|
| virtual void | SetRadius (float) |
| virtual float | GetRadius () |
|
| virtual void | SetHeight (float) |
| virtual float | GetHeight () |
|
| virtual void | SetOffset (float) |
| virtual float | GetOffset () |
|
| virtual void | SetUseDefaultNormal (int) |
| virtual int | GetUseDefaultNormal () |
| virtual void | UseDefaultNormalOn () |
| virtual void | UseDefaultNormalOff () |
|
| virtual void | SetDefaultNormal (float, float, float) |
| virtual void | SetDefaultNormal (float[3]) |
| virtual float * | GetDefaultNormal () |
| virtual void | GetDefaultNormal (float data[3]) |
|
| virtual void | SetFieldDataArray (int) |
| virtual int | GetFieldDataArray () |
Static Public Methods |
| vtkArcPlotter * | New () |
| int | IsTypeOf (const char *type) |
| vtkArcPlotter * | SafeDownCast (vtkObject *o) |
Protected Methods |
| | vtkArcPlotter () |
| | ~vtkArcPlotter () |
| void | Execute () |
| int | OffsetPoint (vtkIdType ptId, vtkPoints *inPts, float n[3], vtkPoints *newPts, float offset, float *range, float val) |
| int | ProcessComponents (vtkIdType numPts, vtkPointData *pd) |
Protected Attributes |
| vtkCamera * | Camera |
| int | PlotMode |
| int | PlotComponent |
| float | Radius |
| float | Height |
| float | Offset |
| float | DefaultNormal [3] |
| int | UseDefaultNormal |
| int | FieldDataArray |
Detailed Description
plot data along an arbitrary polyline.
-
Date:
-
2001/10/11 13:37:23
-
Revision:
-
1.6
vtkArcPlotter performs plotting of attribute data along polylines defined with an input vtkPolyData data object. Any type of attribute data can be plotted including scalars, vectors, tensors, normals, texture coordinates, and field data. Either one or multiple data components can be plotted.
To use this class you must specify an input data set that contains one or more polylines, and some attribute data including which component of the attribute data. (By default, this class processes the first component of scalar data.) You will also need to set an offset radius (the distance of the polyline to the median line of the plot), a width for the plot (the distance that the minimum and maximum plot values are mapped into), an possibly an offset (used to offset attribute data with multiple components).
Normally the filter automatically computes normals for generating the offset arc plot. However, you can specify a default normal and use that instead.
-
See also:
-
vtkXYPlotActor
-
Tests:
-
vtkArcPlotter (Tests)
Definition at line 84 of file vtkArcPlotter.h.
Constructor & Destructor Documentation
| vtkArcPlotter::vtkArcPlotter |
( |
|
) |
[protected] |
|
| vtkArcPlotter::~vtkArcPlotter |
( |
|
) |
[protected] |
|
Member Function Documentation
| vtkArcPlotter* vtkArcPlotter::New |
( |
|
) |
[inline, static] |
|
| virtual const char* vtkArcPlotter::GetClassName |
( |
|
) |
[virtual] |
|
| int vtkArcPlotter::IsTypeOf |
( |
const char * |
type |
) |
[static] |
|
|
|
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkPolyDataToPolyDataFilter. |
| virtual int vtkArcPlotter::IsA |
( |
const char * |
type |
) |
[virtual] |
|
|
|
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkPolyDataToPolyDataFilter. |
| vtkArcPlotter* vtkArcPlotter::SafeDownCast |
( |
vtkObject * |
o |
) |
[static] |
|
| void vtkArcPlotter::PrintSelf |
( |
ostream & |
os, |
|
|
vtkIndent |
indent |
|
) |
[virtual] |
|
|
|
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkSource. |
| virtual void vtkArcPlotter::SetCamera |
( |
vtkCamera * |
|
) |
[virtual] |
|
|
|
Specify a camera used to orient the plot along the arc. If no camera is specified, then the orientation of the plot is arbitrary. |
| virtual vtkCamera* vtkArcPlotter::GetCamera |
( |
|
) |
[virtual] |
|
|
|
Specify a camera used to orient the plot along the arc. If no camera is specified, then the orientation of the plot is arbitrary. |
| virtual void vtkArcPlotter::SetPlotMode |
( |
int |
|
) |
[virtual] |
|
|
|
Specify which data to plot: scalars, vectors, normals, texture coords, tensors, or field data. If the data has more than one component, use the method SetPlotComponent to control which component to plot. |
| virtual int vtkArcPlotter::GetPlotMode |
( |
|
) |
[virtual] |
|
|
|
Specify which data to plot: scalars, vectors, normals, texture coords, tensors, or field data. If the data has more than one component, use the method SetPlotComponent to control which component to plot. |
| void vtkArcPlotter::SetPlotModeToPlotScalars |
( |
|
) |
[inline] |
|
|
|
Specify which data to plot: scalars, vectors, normals, texture coords, tensors, or field data. If the data has more than one component, use the method SetPlotComponent to control which component to plot.
Definition at line 107 of file vtkArcPlotter.h. |
| void vtkArcPlotter::SetPlotModeToPlotVectors |
( |
|
) |
[inline] |
|
|
|
Specify which data to plot: scalars, vectors, normals, texture coords, tensors, or field data. If the data has more than one component, use the method SetPlotComponent to control which component to plot.
Definition at line 108 of file vtkArcPlotter.h. |
| void vtkArcPlotter::SetPlotModeToPlotNormals |
( |
|
) |
[inline] |
|
|
|
Specify which data to plot: scalars, vectors, normals, texture coords, tensors, or field data. If the data has more than one component, use the method SetPlotComponent to control which component to plot.
Definition at line 109 of file vtkArcPlotter.h. |
| void vtkArcPlotter::SetPlotModeToPlotTCoords |
( |
|
) |
[inline] |
|
|
|
Specify which data to plot: scalars, vectors, normals, texture coords, tensors, or field data. If the data has more than one component, use the method SetPlotComponent to control which component to plot.
Definition at line 110 of file vtkArcPlotter.h. |
| void vtkArcPlotter::SetPlotModeToPlotTensors |
( |
|
) |
[inline] |
|
|
|
Specify which data to plot: scalars, vectors, normals, texture coords, tensors, or field data. If the data has more than one component, use the method SetPlotComponent to control which component to plot.
Definition at line 111 of file vtkArcPlotter.h. |
| void vtkArcPlotter::SetPlotModeToPlotFieldData |
( |
|
) |
[inline] |
|
|
|
Specify which data to plot: scalars, vectors, normals, texture coords, tensors, or field data. If the data has more than one component, use the method SetPlotComponent to control which component to plot.
Definition at line 112 of file vtkArcPlotter.h. |
| virtual void vtkArcPlotter::SetPlotComponent |
( |
int |
|
) |
[virtual] |
|
|
|
Set/Get the component number to plot if the data has more than one component. If the value of the plot component is == (-1), then all the components will be plotted. |
| virtual int vtkArcPlotter::GetPlotComponent |
( |
|
) |
[virtual] |
|
|
|
Set/Get the component number to plot if the data has more than one component. If the value of the plot component is == (-1), then all the components will be plotted. |
| virtual void vtkArcPlotter::SetRadius |
( |
float |
|
) |
[virtual] |
|
|
|
Set the radius of the "median" value of the first plotted component. |
| virtual float vtkArcPlotter::GetRadius |
( |
|
) |
[virtual] |
|
|
|
Set the radius of the "median" value of the first plotted component. |
| virtual void vtkArcPlotter::SetHeight |
( |
float |
|
) |
[virtual] |
|
|
|
Set the height of the plot. (The radius combined with the height define the location of the plot relative to the generating polyline.) |
| virtual float vtkArcPlotter::GetHeight |
( |
|
) |
[virtual] |
|
|
|
Set the height of the plot. (The radius combined with the height define the location of the plot relative to the generating polyline.) |
| virtual void vtkArcPlotter::SetOffset |
( |
float |
|
) |
[virtual] |
|
|
|
Specify an offset that translates each subsequent plot (if there is more than one component plotted) from the defining arc (i.e., polyline). |
| virtual float vtkArcPlotter::GetOffset |
( |
|
) |
[virtual] |
|
|
|
Specify an offset that translates each subsequent plot (if there is more than one component plotted) from the defining arc (i.e., polyline). |
| virtual void vtkArcPlotter::SetUseDefaultNormal |
( |
int |
|
) |
[virtual] |
|
|
|
Set a boolean to control whether to use default normals. By default, normals are automatically computed from the generating polyline and camera. |
| virtual int vtkArcPlotter::GetUseDefaultNormal |
( |
|
) |
[virtual] |
|
|
|
Set a boolean to control whether to use default normals. By default, normals are automatically computed from the generating polyline and camera. |
| virtual void vtkArcPlotter::UseDefaultNormalOn |
( |
|
) |
[virtual] |
|
|
|
Set a boolean to control whether to use default normals. By default, normals are automatically computed from the generating polyline and camera. |
| virtual void vtkArcPlotter::UseDefaultNormalOff |
( |
|
) |
[virtual] |
|
|
|
Set a boolean to control whether to use default normals. By default, normals are automatically computed from the generating polyline and camera. |
| virtual void vtkArcPlotter::SetDefaultNormal |
( |
float |
, |
|
|
float |
, |
|
|
float |
|
|
) |
[virtual] |
|
|
|
Set the default normal to use if you do not wish automatic normal calculation. The arc plot will be generated using this normal. |
| virtual void vtkArcPlotter::SetDefaultNormal |
( |
float |
[3] |
) |
[virtual] |
|
|
|
Set the default normal to use if you do not wish automatic normal calculation. The arc plot will be generated using this normal. |
| virtual float* vtkArcPlotter::GetDefaultNormal |
( |
|
) |
[virtual] |
|
|
|
Set the default normal to use if you do not wish automatic normal calculation. The arc plot will be generated using this normal. |
| virtual void vtkArcPlotter::GetDefaultNormal |
( |
float |
data[3] |
) |
[virtual] |
|
|
|
Set the default normal to use if you do not wish automatic normal calculation. The arc plot will be generated using this normal. |
| virtual void vtkArcPlotter::SetFieldDataArray |
( |
int |
|
) |
[virtual] |
|
|
|
Set/Get the field data array to plot. This instance variable is only applicable if field data is plotted. |
| virtual int vtkArcPlotter::GetFieldDataArray |
( |
|
) |
[virtual] |
|
|
|
Set/Get the field data array to plot. This instance variable is only applicable if field data is plotted. |
| unsigned long vtkArcPlotter::GetMTime |
( |
|
) |
[virtual] |
|
|
|
New GetMTime because of camera dependency.
Reimplemented from vtkObject. |
| void vtkArcPlotter::Execute |
( |
|
) |
[protected, virtual] |
|
|
|
This method is the old style execute method
Reimplemented from vtkSource. |
| int vtkArcPlotter::OffsetPoint |
( |
vtkIdType |
ptId, |
|
|
vtkPoints * |
inPts, |
|
|
float |
n[3], |
|
|
vtkPoints * |
newPts, |
|
|
float |
offset, |
|
|
float * |
range, |
|
|
float |
val |
|
) |
[protected] |
|
Member Data Documentation
int vtkArcPlotter::PlotMode [protected]
|
|
int vtkArcPlotter::PlotComponent [protected]
|
|
float vtkArcPlotter::Radius [protected]
|
|
float vtkArcPlotter::Height [protected]
|
|
float vtkArcPlotter::Offset [protected]
|
|
float vtkArcPlotter::DefaultNormal[3] [protected]
|
|
int vtkArcPlotter::UseDefaultNormal [protected]
|
|
int vtkArcPlotter::FieldDataArray [protected]
|
|
The documentation for this class was generated from the following file:
