vtkAxes Class Reference

create an x-y-z axes. More...

#include <vtkAxes.h>

Inheritance diagram for vtkAxes:

Inheritance graph
[legend]

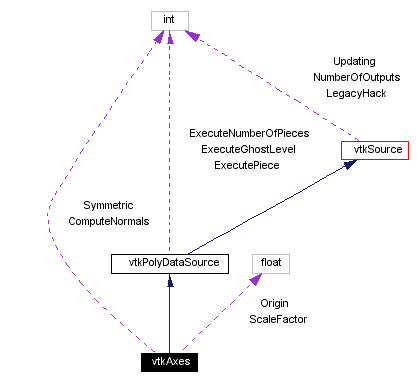

Collaboration diagram for vtkAxes:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetOrigin (float, float, float)
virtual void SetOrigin (float[3])
virtual float * GetOrigin ()
virtual void GetOrigin (float data[3])
virtual void SetScaleFactor (float)
virtual float GetScaleFactor ()
virtual void SetSymmetric (int)
virtual int GetSymmetric ()
virtual void SymmetricOn ()
virtual void SymmetricOff ()
virtual void SetComputeNormals (int)
virtual int GetComputeNormals ()
virtual void ComputeNormalsOn ()
virtual void ComputeNormalsOff ()

Static Public Methods

vtkAxes * New ()
int IsTypeOf (const char *type)
vtkAxes * SafeDownCast (vtkObject *o)

Protected Methods

 vtkAxes ()
 ~vtkAxes ()
void Execute ()
int ComputeDivisionExtents (vtkDataObject *output, int idx, int numDivisions)

Protected Attributes

float Origin [3]
float ScaleFactor
int Symmetric
int ComputeNormals

Detailed Description

create an x-y-z axes.

Date:
2001/11/13 14:13:48
Revision:
1.37

vtkAxes creates three lines that form an x-y-z axes. The origin of the axes is user specified (0,0,0 is default), and the size is specified with a scale factor. Three scalar values are generated for the three lines and can be used (via color map) to indicate a particular coordinate axis.

Examples:
vtkAxes (Examples)
Tests:
vtkAxes (Tests)

Definition at line 63 of file vtkAxes.h.


Constructor & Destructor Documentation

vtkAxes::vtkAxes   [protected]


vtkAxes::~vtkAxes   [inline, protected]


Definition at line 99 of file vtkAxes.h.


Member Function Documentation

vtkAxes* vtkAxes::New   [static]


Instantiate object with no start, end, or progress methods.

Reimplemented from vtkPolyDataSource.

virtual const char* vtkAxes::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataSource.

int vtkAxes::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataSource.

virtual int vtkAxes::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataSource.

vtkAxes* vtkAxes::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataSource.

void vtkAxes::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkSource.

virtual void vtkAxes::SetOrigin float   ,
float   ,
float
[virtual]


Set the origin of the axes.

virtual void vtkAxes::SetOrigin float   [3] [virtual]


Set the origin of the axes.

virtual float* vtkAxes::GetOrigin   [virtual]


Set the origin of the axes.

virtual void vtkAxes::GetOrigin float    data[3] [virtual]


Set the origin of the axes.

virtual void vtkAxes::SetScaleFactor float    [virtual]


Set the scale factor of the axes. Used to control size.

virtual float vtkAxes::GetScaleFactor   [virtual]


Set the scale factor of the axes. Used to control size.

virtual void vtkAxes::SetSymmetric int    [virtual]


If Symetric is on, the the axis continue to negative values.

virtual int vtkAxes::GetSymmetric   [virtual]


If Symetric is on, the the axis continue to negative values.

virtual void vtkAxes::SymmetricOn   [virtual]


If Symetric is on, the the axis continue to negative values.

virtual void vtkAxes::SymmetricOff   [virtual]


If Symetric is on, the the axis continue to negative values.

virtual void vtkAxes::SetComputeNormals int    [virtual]


Option for computing normals. By default they are computed.

virtual int vtkAxes::GetComputeNormals   [virtual]


Option for computing normals. By default they are computed.

virtual void vtkAxes::ComputeNormalsOn   [virtual]


Option for computing normals. By default they are computed.

virtual void vtkAxes::ComputeNormalsOff   [virtual]


Option for computing normals. By default they are computed.

void vtkAxes::Execute   [protected, virtual]


This method is the old style execute method

Reimplemented from vtkSource.

int vtkAxes::ComputeDivisionExtents vtkDataObject   output,
int    idx,
int    numDivisions
[protected]



Member Data Documentation

float vtkAxes::Origin[3] [protected]


Definition at line 106 of file vtkAxes.h.

float vtkAxes::ScaleFactor [protected]


Definition at line 107 of file vtkAxes.h.

int vtkAxes::Symmetric [protected]


Definition at line 109 of file vtkAxes.h.

int vtkAxes::ComputeNormals [protected]


Definition at line 110 of file vtkAxes.h.


The documentation for this class was generated from the following file:
