vtkColorTransferFunction Class Reference

Defines a transfer function for mapping a property to an RGB color value. More...

#include <vtkColorTransferFunction.h>

Inheritance diagram for vtkColorTransferFunction:

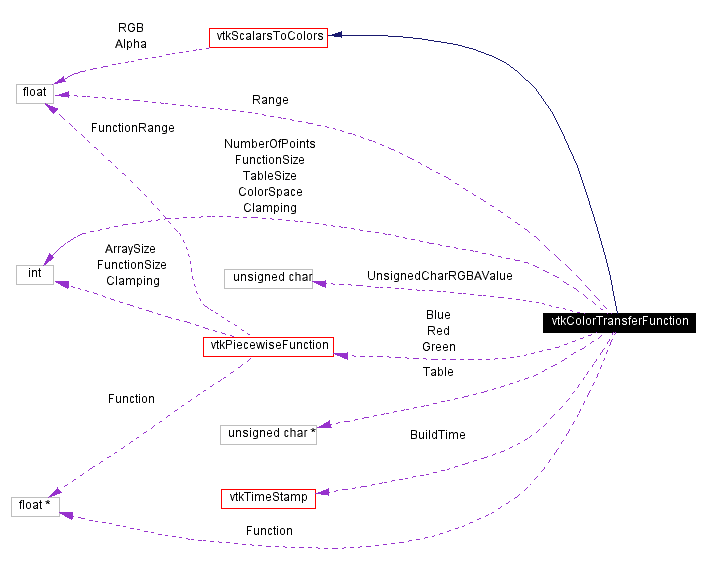

[legend]Collaboration diagram for vtkColorTransferFunction:

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	DeepCopy (vtkColorTransferFunction *f)
void	PrintSelf (ostream &os, vtkIndent indent)
int	GetSize ()
virtual unsigned char *	MapValue (float v)
void	BuildFunctionFromTable (float x1, float x2, int size, float *table)
float *	GetDataPointer ()

void	AddRGBPoint (float x, float r, float g, float b)
void	AddHSVPoint (float x, float h, float s, float v)

void	AddRGBSegment (float x1, float r1, float g1, float b1, float x2, float r2, float g2, float b2)
void	AddHSVSegment (float x1, float h1, float s1, float v1, float x2, float h2, float s2, float v2)

void	RemovePoint (float x)
void	RemoveAllPoints ()

float *	GetColor (float x)
void	GetColor (float x, float rgb[3])

float	GetRedValue (float x)
float	GetGreenValue (float x)
float	GetBlueValue (float x)

virtual float *	GetRange ()
virtual void	GetRange (float &, float &)
virtual void	GetRange (float[2])

void	GetTable (float x1, float x2, int n, float *table)
const unsigned char *	GetTable (float x1, float x2, int n)

virtual void	SetClamping (int)
virtual int	GetClamping ()
virtual void	ClampingOn ()
virtual void	ClampingOff ()

virtual void	SetColorSpace (int)
void	SetColorSpaceToRGB ()
void	SetColorSpaceToHSV ()
virtual int	GetColorSpace ()

virtual void	MapScalarsThroughTable2 (void input, unsigned char output, int inputDataType, int numberOfValues, int inputIncrement, int outputIncrement)
Static Public Methods
vtkColorTransferFunction *	New ()
int	IsTypeOf (const char *type)
vtkColorTransferFunction *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkColorTransferFunction ()
	~vtkColorTransferFunction ()
void	RGBToHSV (float r, float g, float b, float &h, float &s, float &v)
void	HSVToRGB (float h, float s, float v, float &r, float &g, float &b)

virtual void	SetRange (float, float)
void	SetRange (float rng[2])
Protected Attributes
int	Clamping
int	ColorSpace
float *	Function
int	FunctionSize
int	NumberOfPoints
unsigned char	UnsignedCharRGBAValue [4]
float	Range [2]
vtkPiecewiseFunction *	Red
vtkPiecewiseFunction *	Green
vtkPiecewiseFunction *	Blue
vtkTimeStamp	BuildTime
unsigned char *	Table
int	TableSize

Detailed Description

Defines a transfer function for mapping a property to an RGB color value.

Date:: 2001/11/13 14:12:55

Revision:: 1.34

vtkColorTransferFunction encapsulates three vtkPiecewiseFunction instances to provide a full RGB transfer function.

See also:: vtkPiecewiseFunction

Examples:: vtkColorTransferFunction (Examples)

Tests:: vtkColorTransferFunction (Tests)

Definition at line 69 of file vtkColorTransferFunction.h.

Constructor & Destructor Documentation

vtkColorTransferFunction::vtkColorTransferFunction ( ) [protected]

vtkColorTransferFunction::~vtkColorTransferFunction ( ) [protected]

Member Function Documentation

vtkColorTransferFunction* vtkColorTransferFunction::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.
Reimplemented from vtkObject.

virtual const char* vtkColorTransferFunction::GetClassName ( ) [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkScalarsToColors.

int vtkColorTransferFunction::IsTypeOf ( const char * type ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkScalarsToColors.

virtual int vtkColorTransferFunction::IsA ( const char * type ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkScalarsToColors.

vtkColorTransferFunction* vtkColorTransferFunction::SafeDownCast ( vtkObject * o ) [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkScalarsToColors.

void vtkColorTransferFunction::DeepCopy ( vtkColorTransferFunction * f )

void vtkColorTransferFunction::PrintSelf ( ostream & os,

vtkIndent indent

) [virtual]

Print method for vtkColorTransferFunction
Reimplemented from vtkScalarsToColors.

int vtkColorTransferFunction::GetSize ( ) [inline]

How many points are there defining this function?
Definition at line 80 of file vtkColorTransferFunction.h.

void vtkColorTransferFunction::AddRGBPoint ( float x,

float r,

float g,

float b

)

Add a point to the function defined in RGB or HSV

void vtkColorTransferFunction::AddHSVPoint ( float x,

float h,

float s,

float v

)

Add a point to the function defined in RGB or HSV

void vtkColorTransferFunction::AddRGBSegment ( float x1,

float r1,

float g1,

float b1,

float x2,

float r2,

float g2,

float b2

)

Add two points to the function and remove all the points between them

void vtkColorTransferFunction::AddHSVSegment ( float x1,

float h1,

float s1,

float v1,

float x2,

float h2,

float s2,

float v2

)

Add two points to the function and remove all the points between them

void vtkColorTransferFunction::RemovePoint ( float x )

Remove a point / remove all points

void vtkColorTransferFunction::RemoveAllPoints ( )

Remove a point / remove all points

float* vtkColorTransferFunction::GetColor ( float x ) [inline]

Returns an RGB color for the specified scalar value (from vtkScalarsToColors)
Reimplemented from vtkScalarsToColors.
Definition at line 105 of file vtkColorTransferFunction.h.

void vtkColorTransferFunction::GetColor ( float x,

float rgb[3]

) [virtual]

Returns an RGB color for the specified scalar value (from vtkScalarsToColors)
Reimplemented from vtkScalarsToColors.

float vtkColorTransferFunction::GetRedValue ( float x )

Get the color components individually.

float vtkColorTransferFunction::GetGreenValue ( float x )

Get the color components individually.

float vtkColorTransferFunction::GetBlueValue ( float x )

Get the color components individually.

virtual unsigned char* vtkColorTransferFunction::MapValue ( float v ) [virtual]

Map one value through the lookup table.
Reimplemented from vtkScalarsToColors.

virtual float* vtkColorTransferFunction::GetRange ( ) [virtual]

Returns min and max position of all function points.
Reimplemented from vtkScalarsToColors.

virtual void vtkColorTransferFunction::GetRange ( float & ,

float &

) [virtual]

Returns min and max position of all function points.

virtual void vtkColorTransferFunction::GetRange ( float [2] ) [virtual]

Returns min and max position of all function points.

void vtkColorTransferFunction::GetTable ( float x1,

float x2,

int n,

float * table

)

Fills in a table of n function values between x1 and x2

const unsigned char* vtkColorTransferFunction::GetTable ( float x1,

float x2,

int n

)

Fills in a table of n function values between x1 and x2

void vtkColorTransferFunction::BuildFunctionFromTable ( float x1,

float x2,

int size,

float * table

)

Construct a color transfer function from a table. Function range is is set to [x1, x2], each function size is set to size, and function points are regularly spaced between x1 and x2. Parameter "table" is assumed to be a block of memory of size [3*size]

virtual void vtkColorTransferFunction::SetClamping ( int ) [virtual]

Sets and gets the clamping value for this transfer function.

virtual int vtkColorTransferFunction::GetClamping ( ) [virtual]

Sets and gets the clamping value for this transfer function.

virtual void vtkColorTransferFunction::ClampingOn ( ) [virtual]

Sets and gets the clamping value for this transfer function.

virtual void vtkColorTransferFunction::ClampingOff ( ) [virtual]

Sets and gets the clamping value for this transfer function.

virtual void vtkColorTransferFunction::SetColorSpace ( int ) [virtual]

How should we interpolate - in RGB, or HSV

void vtkColorTransferFunction::SetColorSpaceToRGB ( ) [inline]

How should we interpolate - in RGB, or HSV
Definition at line 147 of file vtkColorTransferFunction.h.

void vtkColorTransferFunction::SetColorSpaceToHSV ( ) [inline]

How should we interpolate - in RGB, or HSV
Definition at line 148 of file vtkColorTransferFunction.h.

virtual int vtkColorTransferFunction::GetColorSpace ( ) [virtual]

How should we interpolate - in RGB, or HSV

float* vtkColorTransferFunction::GetDataPointer ( ) [inline]

Returns a list of all nodes
Definition at line 153 of file vtkColorTransferFunction.h.

virtual void vtkColorTransferFunction::MapScalarsThroughTable2 ( void * input,

unsigned char * output,

int inputDataType,

int numberOfValues,

int inputIncrement,

int outputIncrement

) [virtual]

map a set of scalars through the lookup table
Reimplemented from vtkScalarsToColors.

void vtkColorTransferFunction::RGBToHSV ( float r,

float g,

float b,

float & h,

float & s,

float & v

) [protected]

void vtkColorTransferFunction::HSVToRGB ( float h,

float s,

float v,

float & r,

float & g,

float & b

) [protected]

virtual void vtkColorTransferFunction::SetRange ( float min,

float max

) [inline, protected, virtual]

Set the range of scalars being mapped. The set has no functionality in this subclass of vtkScalarsToColors.
Reimplemented from vtkScalarsToColors.
Definition at line 202 of file vtkColorTransferFunction.h.

void vtkColorTransferFunction::SetRange ( float rng[2] ) [inline, protected]

Set the range of scalars being mapped. The set has no functionality in this subclass of vtkScalarsToColors.
Reimplemented from vtkScalarsToColors.
Definition at line 203 of file vtkColorTransferFunction.h.

Member Data Documentation

int vtkColorTransferFunction::Clamping [protected]

Definition at line 170 of file vtkColorTransferFunction.h.

int vtkColorTransferFunction::ColorSpace [protected]

Definition at line 173 of file vtkColorTransferFunction.h.

float* vtkColorTransferFunction::Function [protected]

Definition at line 176 of file vtkColorTransferFunction.h.

int vtkColorTransferFunction::FunctionSize [protected]

Definition at line 177 of file vtkColorTransferFunction.h.

int vtkColorTransferFunction::NumberOfPoints [protected]

Definition at line 178 of file vtkColorTransferFunction.h.

unsigned char vtkColorTransferFunction::UnsignedCharRGBAValue[4] [protected]

Definition at line 185 of file vtkColorTransferFunction.h.

float vtkColorTransferFunction::Range[2] [protected]

Definition at line 188 of file vtkColorTransferFunction.h.

vtkPiecewiseFunction* vtkColorTransferFunction::Red [protected]

Definition at line 192 of file vtkColorTransferFunction.h.

vtkPiecewiseFunction* vtkColorTransferFunction::Green [protected]

Definition at line 193 of file vtkColorTransferFunction.h.

vtkPiecewiseFunction* vtkColorTransferFunction::Blue [protected]

Definition at line 194 of file vtkColorTransferFunction.h.

vtkTimeStamp vtkColorTransferFunction::BuildTime [protected]

Definition at line 195 of file vtkColorTransferFunction.h.

unsigned char* vtkColorTransferFunction::Table [protected]

Definition at line 196 of file vtkColorTransferFunction.h.

int vtkColorTransferFunction::TableSize [protected]

Definition at line 197 of file vtkColorTransferFunction.h.

The documentation for this class was generated from the following file:

Filtering/vtkColorTransferFunction.h
