vtkCursor3D Class Reference

generate a 3D cursor representation. More...

#include <vtkCursor3D.h>

Inheritance diagram for vtkCursor3D:

Inheritance graph
[legend]

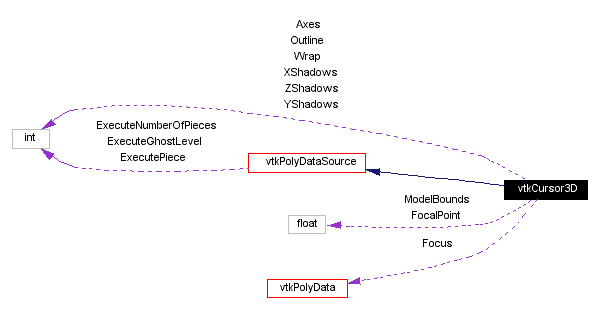

Collaboration diagram for vtkCursor3D:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
vtkPolyData * GetFocus ()
void SetModelBounds (float xmin, float xmax, float ymin, float ymax, float zmin, float zmax)
void SetModelBounds (float bounds[6])
virtual float * GetModelBounds ()
virtual void GetModelBounds (float data[6])
virtual void SetFocalPoint (float, float, float)
virtual void SetFocalPoint (float[3])
virtual float * GetFocalPoint ()
virtual void GetFocalPoint (float data[3])
virtual void SetOutline (int)
virtual int GetOutline ()
virtual void OutlineOn ()
virtual void OutlineOff ()
virtual void SetAxes (int)
virtual int GetAxes ()
virtual void AxesOn ()
virtual void AxesOff ()
virtual void SetXShadows (int)
virtual int GetXShadows ()
virtual void XShadowsOn ()
virtual void XShadowsOff ()
virtual void SetYShadows (int)
virtual int GetYShadows ()
virtual void YShadowsOn ()
virtual void YShadowsOff ()
virtual void SetZShadows (int)
virtual int GetZShadows ()
virtual void ZShadowsOn ()
virtual void ZShadowsOff ()
virtual void SetWrap (int)
virtual int GetWrap ()
virtual void WrapOn ()
virtual void WrapOff ()
void AllOn ()
void AllOff ()

Static Public Methods

int IsTypeOf (const char *type)
vtkCursor3D * SafeDownCast (vtkObject *o)
vtkCursor3D * New ()

Protected Methods

 vtkCursor3D ()
 ~vtkCursor3D ()
void Execute ()

Protected Attributes

vtkPolyData * Focus
float ModelBounds [6]
float FocalPoint [3]
int Outline
int Axes
int XShadows
int YShadows
int ZShadows
int Wrap

Detailed Description

generate a 3D cursor representation.

Date:
2001/11/13 14:13:49
Revision:
1.37

vtkCursor3D is an object that generates a 3D representation of a cursor. The cursor consists of a wireframe bounding box, three intersecting axes lines that meet at the cursor focus, and "shadows" or projections of the axes against the sides of the bounding box. Each of these components can be turned on/off.

This filter generates two output datasets. The first (Output) is just the geometric representation of the cursor. The second (Focus) is a single point at the focal point.

Tests:
vtkCursor3D (Tests)

Definition at line 65 of file vtkCursor3D.h.

Constructor & Destructor Documentation

vtkCursor3D::vtkCursor3D (    )  [protected]


vtkCursor3D::~vtkCursor3D (    )  [protected]


Member Function Documentation

virtual const char* vtkCursor3D::GetClassName (    )  [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataSource.

int vtkCursor3D::IsTypeOf (  const char *    type )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataSource.

virtual int vtkCursor3D::IsA (  const char *    type )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataSource.

vtkCursor3D* vtkCursor3D::SafeDownCast (  vtkObject *    o )  [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataSource.

void vtkCursor3D::PrintSelf (  ostream &    os,
vtkIndent    indent
)  [virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkSource.

vtkCursor3D* vtkCursor3D::New (    )  [static]


Construct with model bounds = (-1,1,-1,1,-1,1), focal point = (0,0,0), all parts of cursor visible, and wrapping off.

Reimplemented from vtkPolyDataSource.

void vtkCursor3D::SetModelBounds (  float    xmin,
float    xmax,
float    ymin,
float    ymax,
float    zmin,
float    zmax
)


Set / get the boundary of the 3D cursor.

void vtkCursor3D::SetModelBounds (  float    bounds[6] )


Set / get the boundary of the 3D cursor.

virtual float* vtkCursor3D::GetModelBounds (    )  [virtual]


Set / get the boundary of the 3D cursor.

virtual void vtkCursor3D::GetModelBounds (  float    data[6] )  [virtual]


Set / get the boundary of the 3D cursor.

virtual void vtkCursor3D::SetFocalPoint (  float   ,
float   ,
float
)  [virtual]


Specify the position of cursor focus.

virtual void vtkCursor3D::SetFocalPoint (  float   [3] )  [virtual]


Specify the position of cursor focus.

virtual float* vtkCursor3D::GetFocalPoint (    )  [virtual]


Specify the position of cursor focus.

virtual void vtkCursor3D::GetFocalPoint (  float    data[3] )  [virtual]


Specify the position of cursor focus.

virtual void vtkCursor3D::SetOutline (  int    )  [virtual]


Turn on/off the wireframe bounding box.

virtual int vtkCursor3D::GetOutline (    )  [virtual]


Turn on/off the wireframe bounding box.

virtual void vtkCursor3D::OutlineOn (    )  [virtual]


Turn on/off the wireframe bounding box.

virtual void vtkCursor3D::OutlineOff (    )  [virtual]


Turn on/off the wireframe bounding box.

virtual void vtkCursor3D::SetAxes (  int    )  [virtual]


Turn on/off the wireframe axes.

virtual int vtkCursor3D::GetAxes (    )  [virtual]


Turn on/off the wireframe axes.

virtual void vtkCursor3D::AxesOn (    )  [virtual]


Turn on/off the wireframe axes.

virtual void vtkCursor3D::AxesOff (    )  [virtual]


Turn on/off the wireframe axes.

virtual void vtkCursor3D::SetXShadows (  int    )  [virtual]


Turn on/off the wireframe x-shadows.

virtual int vtkCursor3D::GetXShadows (    )  [virtual]


Turn on/off the wireframe x-shadows.

virtual void vtkCursor3D::XShadowsOn (    )  [virtual]


Turn on/off the wireframe x-shadows.

virtual void vtkCursor3D::XShadowsOff (    )  [virtual]


Turn on/off the wireframe x-shadows.

virtual void vtkCursor3D::SetYShadows (  int    )  [virtual]


Turn on/off the wireframe y-shadows.

virtual int vtkCursor3D::GetYShadows (    )  [virtual]


Turn on/off the wireframe y-shadows.

virtual void vtkCursor3D::YShadowsOn (    )  [virtual]


Turn on/off the wireframe y-shadows.

virtual void vtkCursor3D::YShadowsOff (    )  [virtual]


Turn on/off the wireframe y-shadows.

virtual void vtkCursor3D::SetZShadows (  int    )  [virtual]


Turn on/off the wireframe z-shadows.

virtual int vtkCursor3D::GetZShadows (    )  [virtual]


Turn on/off the wireframe z-shadows.

virtual void vtkCursor3D::ZShadowsOn (    )  [virtual]


Turn on/off the wireframe z-shadows.

virtual void vtkCursor3D::ZShadowsOff (    )  [virtual]


Turn on/off the wireframe z-shadows.

virtual void vtkCursor3D::SetWrap (  int    )  [virtual]


Turn on/off cursor wrapping. If the cursor focus moves outside the specified bounds, the cursor will either be restrained against the nearest "wall" (Wrap=off), or it will wrap around (Wrap=on).

virtual int vtkCursor3D::GetWrap (    )  [virtual]


Turn on/off cursor wrapping. If the cursor focus moves outside the specified bounds, the cursor will either be restrained against the nearest "wall" (Wrap=off), or it will wrap around (Wrap=on).

virtual void vtkCursor3D::WrapOn (    )  [virtual]


Turn on/off cursor wrapping. If the cursor focus moves outside the specified bounds, the cursor will either be restrained against the nearest "wall" (Wrap=off), or it will wrap around (Wrap=on).

virtual void vtkCursor3D::WrapOff (    )  [virtual]


Turn on/off cursor wrapping. If the cursor focus moves outside the specified bounds, the cursor will either be restrained against the nearest "wall" (Wrap=off), or it will wrap around (Wrap=on).

vtkPolyData* vtkCursor3D::GetFocus (    )  [inline]


Get the focus for this filter.

Definition at line 134 of file vtkCursor3D.h.

void vtkCursor3D::AllOn (    )


Turn every part of the 3D cursor on or off.

void vtkCursor3D::AllOff (    )


Turn every part of the 3D cursor on or off.

void vtkCursor3D::Execute (    )  [protected, virtual]


This method is the old style execute method

Reimplemented from vtkSource.

Member Data Documentation

vtkPolyData* vtkCursor3D::Focus [protected]


Definition at line 148 of file vtkCursor3D.h.

float vtkCursor3D::ModelBounds[6] [protected]


Definition at line 149 of file vtkCursor3D.h.

float vtkCursor3D::FocalPoint[3] [protected]


Definition at line 150 of file vtkCursor3D.h.

int vtkCursor3D::Outline [protected]


Definition at line 151 of file vtkCursor3D.h.

int vtkCursor3D::Axes [protected]


Definition at line 152 of file vtkCursor3D.h.

int vtkCursor3D::XShadows [protected]


Definition at line 153 of file vtkCursor3D.h.

int vtkCursor3D::YShadows [protected]


Definition at line 154 of file vtkCursor3D.h.

int vtkCursor3D::ZShadows [protected]


Definition at line 155 of file vtkCursor3D.h.

int vtkCursor3D::Wrap [protected]


Definition at line 156 of file vtkCursor3D.h.

The documentation for this class was generated from the following file:
