vtkDashedStreamLine Class Reference

generate constant-time dashed streamline in arbitrary dataset. More...

#include <vtkDashedStreamLine.h>

Inheritance diagram for vtkDashedStreamLine:

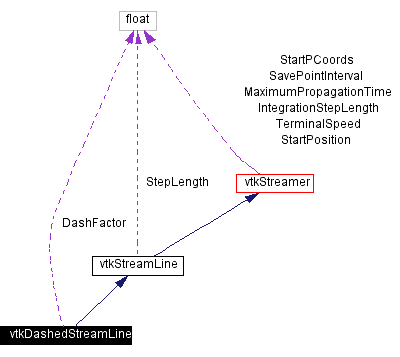

[legend]Collaboration diagram for vtkDashedStreamLine:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetDashFactor (float)
virtual float	GetDashFactor ()
Static Public Methods
vtkDashedStreamLine *	New ()
int	IsTypeOf (const char *type)
vtkDashedStreamLine *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkDashedStreamLine ()
	~vtkDashedStreamLine ()
void	Execute ()
Protected Attributes
float	DashFactor

---

Detailed Description

generate constant-time dashed streamline in arbitrary dataset.

Date:

2001/10/11 13:36:54

Revision:

1.31

vtkDashedStreamLine is a filter that generates a "dashed" streamline for an arbitrary dataset. The streamline consists of a series of dashes, each of which represents (approximately) a constant time increment. Thus, in the resulting visual representation, relatively long dashes represent areas of high velocity, and small dashes represent areas of low velocity.

vtkDashedStreamLine introduces the instance variable DashFactor. DashFactor interacts with its superclass' instance variable StepLength to create the dashes. DashFactor is the percentage of the StepLength line segment that is visible. Thus, if the DashFactor=0.75, the dashes will be "three-quarters on" and "one-quarter off".

See also:

vtkStreamer vtkStreamLine vtkStreamPoints

Tests:

vtkDashedStreamLine (Tests)

Definition at line 70 of file vtkDashedStreamLine.h.

---

Constructor & Destructor Documentation

vtkDashedStreamLine::vtkDashedStreamLine (    )  [protected]

vtkDashedStreamLine::~vtkDashedStreamLine (    )  [inline, protected]

Definition at line 87 of file vtkDashedStreamLine.h.

---

Member Function Documentation

vtkDashedStreamLine* vtkDashedStreamLine::New (    )  [static]

Construct object with step size set to 1.0. Reimplemented from vtkStreamLine.

virtual const char* vtkDashedStreamLine::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkStreamLine.

int vtkDashedStreamLine::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkStreamLine.

virtual int vtkDashedStreamLine::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkStreamLine.

vtkDashedStreamLine* vtkDashedStreamLine::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkStreamLine.

void vtkDashedStreamLine::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkStreamLine.

virtual void vtkDashedStreamLine::SetDashFactor (  float    )  [virtual]

For each dash, specify the fraction of the dash that is "on". A factor of 1.0 will result in a continuous line, a factor of 0.5 will result in dashed that are half on and half off.

virtual float vtkDashedStreamLine::GetDashFactor (    )  [virtual]

For each dash, specify the fraction of the dash that is "on". A factor of 1.0 will result in a continuous line, a factor of 0.5 will result in dashed that are half on and half off.

void vtkDashedStreamLine::Execute (    )  [protected, virtual]

This method is the old style execute method Reimplemented from vtkStreamLine.

---

Member Data Documentation

float vtkDashedStreamLine::DashFactor [protected]

Definition at line 93 of file vtkDashedStreamLine.h.

---

The documentation for this class was generated from the following file:

• Graphics/vtkDashedStreamLine.h

---
