vtkExtractUnstructuredGrid Class Reference

extract subset of unstructured grid geometry. More...

#include <vtkExtractUnstructuredGrid.h>

Inheritance diagram for vtkExtractUnstructuredGrid:

Inheritance graph
[legend]

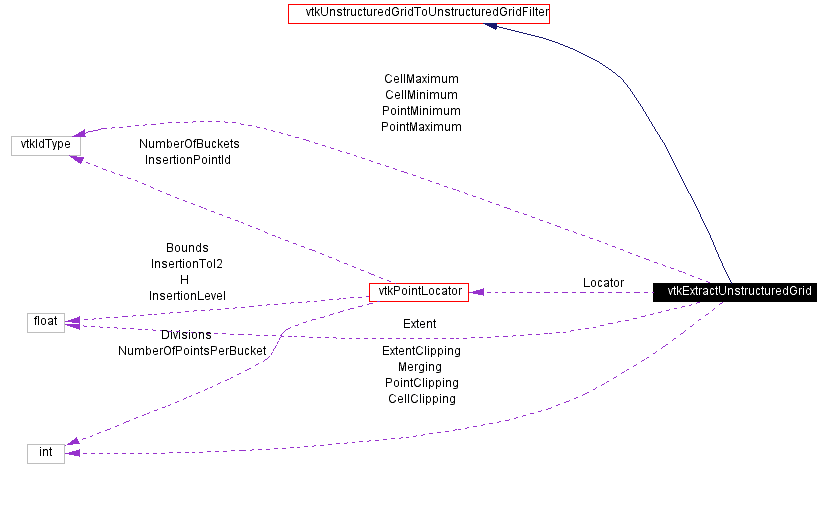

Collaboration diagram for vtkExtractUnstructuredGrid:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void CreateDefaultLocator ()
unsigned long GetMTime ()
virtual void SetPointClipping (int)
virtual int GetPointClipping ()
virtual void PointClippingOn ()
virtual void PointClippingOff ()
virtual void SetCellClipping (int)
virtual int GetCellClipping ()
virtual void CellClippingOn ()
virtual void CellClippingOff ()
virtual void SetExtentClipping (int)
virtual int GetExtentClipping ()
virtual void ExtentClippingOn ()
virtual void ExtentClippingOff ()
virtual void SetPointMinimum (vtkIdType)
virtual vtkIdType GetPointMinimum ()
virtual void SetPointMaximum (vtkIdType)
virtual vtkIdType GetPointMaximum ()
virtual void SetCellMinimum (vtkIdType)
virtual vtkIdType GetCellMinimum ()
virtual void SetCellMaximum (vtkIdType)
virtual vtkIdType GetCellMaximum ()
void SetExtent (float xMin, float xMax, float yMin, float yMax, float zMin, float zMax)
void SetExtent (float extent[6])
float * GetExtent ()
virtual void SetMerging (int)
virtual int GetMerging ()
virtual void MergingOn ()
virtual void MergingOff ()
void SetLocator (vtkPointLocator *locator)
virtual vtkPointLocatorGetLocator ()

Static Public Methods

int IsTypeOf (const char *type)
vtkExtractUnstructuredGrid * SafeDownCast (vtkObject *o)
vtkExtractUnstructuredGrid * New ()

Protected Methods

 vtkExtractUnstructuredGrid ()
 ~vtkExtractUnstructuredGrid ()
void Execute ()

Protected Attributes

vtkIdType PointMinimum
vtkIdType PointMaximum
vtkIdType CellMinimum
vtkIdType CellMaximum
float Extent [6]
int PointClipping
int CellClipping
int ExtentClipping
int Merging
vtkPointLocatorLocator

Detailed Description

extract subset of unstructured grid geometry.

Date:
2001/11/13 14:13:49
Revision:
1.24

vtkExtractUnstructuredGrid is a general-purpose filter to extract geometry (and associated data) from an unstructured grid dataset. The extraction process is controlled by specifying a range of point ids, cell ids, or a bounding box (referred to as "Extent"). Those cells lying within these regions are sent to the output. The user has the choice of merging coincident points (Merging is on) or using the original point set (Merging is off).

Warning:
If merging is off, the input points are copied through to the output. This means unused points may be present in the output data. If merging is on, then coincident points with different point attribute values are merged.
See also:
vtkImageDataGeometryFilter vtkStructuredGridGeometryFilter vtkRectilinearGridGeometryFilter vtkExtractGeometry vtkExtractVOI
Examples:
vtkExtractUnstructuredGrid (Examples)
Tests:
vtkExtractUnstructuredGrid (Tests)

Definition at line 77 of file vtkExtractUnstructuredGrid.h.


Constructor & Destructor Documentation

vtkExtractUnstructuredGrid::vtkExtractUnstructuredGrid   [protected]


vtkExtractUnstructuredGrid::~vtkExtractUnstructuredGrid   [inline, protected]


Definition at line 169 of file vtkExtractUnstructuredGrid.h.


Member Function Documentation

virtual const char* vtkExtractUnstructuredGrid::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridToUnstructuredGridFilter.

int vtkExtractUnstructuredGrid::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridToUnstructuredGridFilter.

virtual int vtkExtractUnstructuredGrid::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridToUnstructuredGridFilter.

vtkExtractUnstructuredGrid* vtkExtractUnstructuredGrid::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridToUnstructuredGridFilter.

void vtkExtractUnstructuredGrid::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkSource.

vtkExtractUnstructuredGrid* vtkExtractUnstructuredGrid::New   [static]


Construct with all types of clipping turned off.

Reimplemented from vtkUnstructuredGridSource.

virtual void vtkExtractUnstructuredGrid::SetPointClipping int    [virtual]


Turn on/off selection of geometry by point id.

virtual int vtkExtractUnstructuredGrid::GetPointClipping   [virtual]


Turn on/off selection of geometry by point id.

virtual void vtkExtractUnstructuredGrid::PointClippingOn   [virtual]


Turn on/off selection of geometry by point id.

virtual void vtkExtractUnstructuredGrid::PointClippingOff   [virtual]


Turn on/off selection of geometry by point id.

virtual void vtkExtractUnstructuredGrid::SetCellClipping int    [virtual]


Turn on/off selection of geometry by cell id.

virtual int vtkExtractUnstructuredGrid::GetCellClipping   [virtual]


Turn on/off selection of geometry by cell id.

virtual void vtkExtractUnstructuredGrid::CellClippingOn   [virtual]


Turn on/off selection of geometry by cell id.

virtual void vtkExtractUnstructuredGrid::CellClippingOff   [virtual]


Turn on/off selection of geometry by cell id.

virtual void vtkExtractUnstructuredGrid::SetExtentClipping int    [virtual]


Turn on/off selection of geometry via bounding box.

virtual int vtkExtractUnstructuredGrid::GetExtentClipping   [virtual]


Turn on/off selection of geometry via bounding box.

virtual void vtkExtractUnstructuredGrid::ExtentClippingOn   [virtual]


Turn on/off selection of geometry via bounding box.

virtual void vtkExtractUnstructuredGrid::ExtentClippingOff   [virtual]


Turn on/off selection of geometry via bounding box.

virtual void vtkExtractUnstructuredGrid::SetPointMinimum vtkIdType    [virtual]


Specify the minimum point id for point id selection.

virtual vtkIdType vtkExtractUnstructuredGrid::GetPointMinimum   [virtual]


Specify the minimum point id for point id selection.

virtual void vtkExtractUnstructuredGrid::SetPointMaximum vtkIdType    [virtual]


Specify the maximum point id for point id selection.

virtual vtkIdType vtkExtractUnstructuredGrid::GetPointMaximum   [virtual]


Specify the maximum point id for point id selection.

virtual void vtkExtractUnstructuredGrid::SetCellMinimum vtkIdType    [virtual]


Specify the minimum cell id for point id selection.

virtual vtkIdType vtkExtractUnstructuredGrid::GetCellMinimum   [virtual]


Specify the minimum cell id for point id selection.

virtual void vtkExtractUnstructuredGrid::SetCellMaximum vtkIdType    [virtual]


Specify the maximum cell id for point id selection.

virtual vtkIdType vtkExtractUnstructuredGrid::GetCellMaximum   [virtual]


Specify the maximum cell id for point id selection.

void vtkExtractUnstructuredGrid::SetExtent float    xMin,
float    xMax,
float    yMin,
float    yMax,
float    zMin,
float    zMax


Specify a (xmin,xmax, ymin,ymax, zmin,zmax) bounding box to clip data.

void vtkExtractUnstructuredGrid::SetExtent float    extent[6]


Set / get a (xmin,xmax, ymin,ymax, zmin,zmax) bounding box to clip data.

float* vtkExtractUnstructuredGrid::GetExtent   [inline]


Set / get a (xmin,xmax, ymin,ymax, zmin,zmax) bounding box to clip data.

Definition at line 142 of file vtkExtractUnstructuredGrid.h.

virtual void vtkExtractUnstructuredGrid::SetMerging int    [virtual]


Turn on/off merging of coincident points. Note that is merging is on, points with different point attributes (e.g., normals) are merged, which may cause rendering artifacts.

virtual int vtkExtractUnstructuredGrid::GetMerging   [virtual]


Turn on/off merging of coincident points. Note that is merging is on, points with different point attributes (e.g., normals) are merged, which may cause rendering artifacts.

virtual void vtkExtractUnstructuredGrid::MergingOn   [virtual]


Turn on/off merging of coincident points. Note that is merging is on, points with different point attributes (e.g., normals) are merged, which may cause rendering artifacts.

virtual void vtkExtractUnstructuredGrid::MergingOff   [virtual]


Turn on/off merging of coincident points. Note that is merging is on, points with different point attributes (e.g., normals) are merged, which may cause rendering artifacts.

void vtkExtractUnstructuredGrid::SetLocator vtkPointLocator   locator


Set / get a spatial locator for merging points. By default an instance of vtkMergePoints is used.

virtual vtkPointLocator* vtkExtractUnstructuredGrid::GetLocator   [virtual]


Set / get a spatial locator for merging points. By default an instance of vtkMergePoints is used.

void vtkExtractUnstructuredGrid::CreateDefaultLocator void


Create default locator. Used to create one when none is specified.

unsigned long vtkExtractUnstructuredGrid::GetMTime   [virtual]


Return the MTime also considering the locator.

Reimplemented from vtkObject.

void vtkExtractUnstructuredGrid::Execute   [protected, virtual]


This method is the old style execute method

Reimplemented from vtkSource.


Member Data Documentation

vtkIdType vtkExtractUnstructuredGrid::PointMinimum [protected]


Definition at line 173 of file vtkExtractUnstructuredGrid.h.

vtkIdType vtkExtractUnstructuredGrid::PointMaximum [protected]


Definition at line 174 of file vtkExtractUnstructuredGrid.h.

vtkIdType vtkExtractUnstructuredGrid::CellMinimum [protected]


Definition at line 175 of file vtkExtractUnstructuredGrid.h.

vtkIdType vtkExtractUnstructuredGrid::CellMaximum [protected]


Definition at line 176 of file vtkExtractUnstructuredGrid.h.

float vtkExtractUnstructuredGrid::Extent[6] [protected]


Definition at line 177 of file vtkExtractUnstructuredGrid.h.

int vtkExtractUnstructuredGrid::PointClipping [protected]


Definition at line 178 of file vtkExtractUnstructuredGrid.h.

int vtkExtractUnstructuredGrid::CellClipping [protected]


Definition at line 179 of file vtkExtractUnstructuredGrid.h.

int vtkExtractUnstructuredGrid::ExtentClipping [protected]


Definition at line 180 of file vtkExtractUnstructuredGrid.h.

int vtkExtractUnstructuredGrid::Merging [protected]


Definition at line 182 of file vtkExtractUnstructuredGrid.h.

vtkPointLocator* vtkExtractUnstructuredGrid::Locator [protected]


Definition at line 183 of file vtkExtractUnstructuredGrid.h.


The documentation for this class was generated from the following file:
