vtkFileOutputWindow Class Reference

File Specific output window class. More...

#include <vtkFileOutputWindow.h>

Inheritance diagram for vtkFileOutputWindow:

Inheritance graph
[legend]

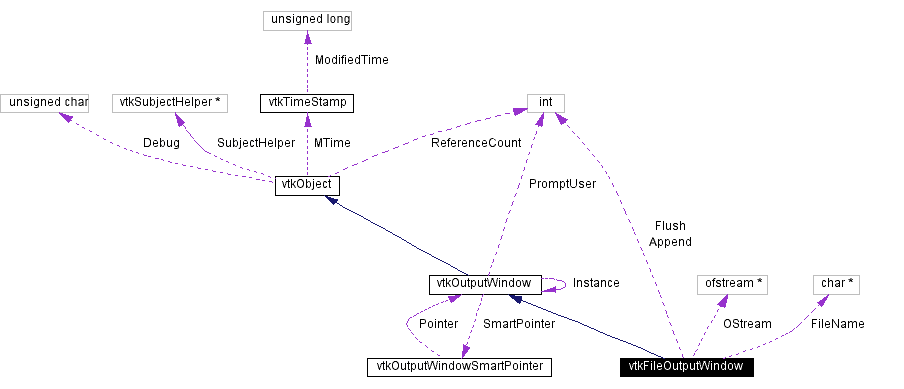

Collaboration diagram for vtkFileOutputWindow:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
virtual void PrintSelf (ostream &os, vtkIndent indent)
virtual void DisplayText (const char *)
virtual void SetFileName (const char *)
virtual char * GetFileName ()
virtual void SetFlush (int)
virtual int GetFlush ()
virtual void FlushOn ()
virtual void FlushOff ()
virtual void SetAppend (int)
virtual int GetAppend ()
virtual void AppendOn ()
virtual void AppendOff ()

Static Public Methods

int IsTypeOf (const char *type)
vtkFileOutputWindow * SafeDownCast (vtkObject *o)
vtkFileOutputWindow * New ()

Protected Methods

 vtkFileOutputWindow ()
virtual ~vtkFileOutputWindow ()
void Initialize ()

Protected Attributes

char * FileName
ofstream * OStream
int Flush
int Append

Detailed Description

File Specific output window class.

Date:
2001/11/13 14:09:25
Revision:
1.8

Writes debug/warning/error output to a log file instead of the console. To use this class, instantiate it and then call SetInstance(this).

Tests:
vtkFileOutputWindow (Tests)

Definition at line 60 of file vtkFileOutputWindow.h.


Constructor & Destructor Documentation

vtkFileOutputWindow::vtkFileOutputWindow   [protected]


virtual vtkFileOutputWindow::~vtkFileOutputWindow   [protected, virtual]



Member Function Documentation

virtual const char* vtkFileOutputWindow::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkOutputWindow.

Reimplemented in vtkXMLFileOutputWindow.

int vtkFileOutputWindow::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkOutputWindow.

Reimplemented in vtkXMLFileOutputWindow.

virtual int vtkFileOutputWindow::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkOutputWindow.

Reimplemented in vtkXMLFileOutputWindow.

vtkFileOutputWindow* vtkFileOutputWindow::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkOutputWindow.

Reimplemented in vtkXMLFileOutputWindow.

vtkFileOutputWindow* vtkFileOutputWindow::New   [static]


This is a singleton pattern New. There will only be ONE reference to a vtkOutputWindow object per process. Clients that call this must call Delete on the object so that the reference counting will work. The single instance will be unreferenced when the program exits.

Reimplemented from vtkOutputWindow.

Reimplemented in vtkXMLFileOutputWindow.

virtual void vtkFileOutputWindow::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Print ObjectFactor to stream.

Reimplemented from vtkOutputWindow.

virtual void vtkFileOutputWindow::DisplayText const char *    [virtual]


New lines are converted to carriage return new lines.

Reimplemented from vtkOutputWindow.

Reimplemented in vtkXMLFileOutputWindow.

virtual void vtkFileOutputWindow::SetFileName const char *    [virtual]


virtual char* vtkFileOutputWindow::GetFileName   [virtual]


virtual void vtkFileOutputWindow::SetFlush int    [virtual]


to the log file.

virtual int vtkFileOutputWindow::GetFlush   [virtual]


to the log file.

virtual void vtkFileOutputWindow::FlushOn   [virtual]


to the log file.

virtual void vtkFileOutputWindow::FlushOff   [virtual]


to the log file.

virtual void vtkFileOutputWindow::SetAppend int    [virtual]


opened in append mode. Otherwise, if the log file exists, it will be overwritten each time the vtkFileOutputWindow is created.

virtual int vtkFileOutputWindow::GetAppend   [virtual]


opened in append mode. Otherwise, if the log file exists, it will be overwritten each time the vtkFileOutputWindow is created.

virtual void vtkFileOutputWindow::AppendOn   [virtual]


opened in append mode. Otherwise, if the log file exists, it will be overwritten each time the vtkFileOutputWindow is created.

virtual void vtkFileOutputWindow::AppendOff   [virtual]


opened in append mode. Otherwise, if the log file exists, it will be overwritten each time the vtkFileOutputWindow is created.

void vtkFileOutputWindow::Initialize   [protected]


Reimplemented in vtkXMLFileOutputWindow.


Member Data Documentation

char* vtkFileOutputWindow::FileName [protected]


Definition at line 96 of file vtkFileOutputWindow.h.

ofstream* vtkFileOutputWindow::OStream [protected]


Definition at line 97 of file vtkFileOutputWindow.h.

int vtkFileOutputWindow::Flush [protected]


Definition at line 98 of file vtkFileOutputWindow.h.

int vtkFileOutputWindow::Append [protected]


Definition at line 99 of file vtkFileOutputWindow.h.


The documentation for this class was generated from the following file:
