vtkImageEllipsoidSource Class Reference

Create a binary image of an ellipsoid. More...

#include <vtkImageEllipsoidSource.h>

Inheritance diagram for vtkImageEllipsoidSource:

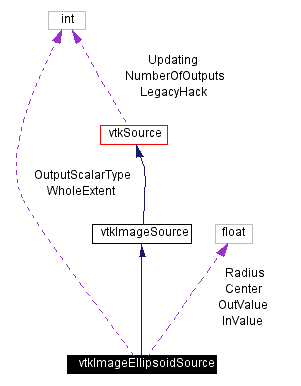

[legend]Collaboration diagram for vtkImageEllipsoidSource:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	SetWholeExtent (int extent[6])
void	SetWholeExtent (int minX, int maxX, int minY, int maxY, int minZ, int maxZ)
void	GetWholeExtent (int extent[6])
int *	GetWholeExtent ()
virtual void	SetCenter (float, float, float)
virtual void	SetCenter (float[3])
virtual float *	GetCenter ()
virtual void	GetCenter (float &, float &, float &)
virtual void	GetCenter (float[3])
virtual void	SetRadius (float, float, float)
virtual void	SetRadius (float[3])
virtual float *	GetRadius ()
virtual void	GetRadius (float &, float &, float &)
virtual void	GetRadius (float[3])
virtual void	SetInValue (float)
virtual float	GetInValue ()
virtual void	SetOutValue (float)
virtual float	GetOutValue ()
virtual void	SetOutputScalarType (int)
virtual int	GetOutputScalarType ()
void	SetOutputScalarTypeToDouble ()
void	SetOutputScalarTypeToFloat ()
void	SetOutputScalarTypeToLong ()
void	SetOutputScalarTypeToUnsignedLong ()
void	SetOutputScalarTypeToInt ()
void	SetOutputScalarTypeToUnsignedInt ()
void	SetOutputScalarTypeToShort ()
void	SetOutputScalarTypeToUnsignedShort ()
void	SetOutputScalarTypeToChar ()
void	SetOutputScalarTypeToUnsignedChar ()
Static Public Methods
vtkImageEllipsoidSource *	New ()
int	IsTypeOf (const char *type)
vtkImageEllipsoidSource *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkImageEllipsoidSource ()
	~vtkImageEllipsoidSource ()
virtual void	ExecuteInformation ()
virtual void	ExecuteData (vtkDataObject *outData)
Protected Attributes
int	WholeExtent [6]
float	Center [3]
float	Radius [3]
float	InValue
float	OutValue
int	OutputScalarType

---

Detailed Description

Create a binary image of an ellipsoid.

Date:

2001/11/13 14:32:33

Revision:

1.23

Thanks:

Thanks to C. Charles Law who developed this class.

vtkImageEllipsoidSource creates a binary image of a ellipsoid. It was created as an example of a simple source, and to test the mask filter. It is also used internally in vtkImageDilateErode3D.

Tests:

vtkImageEllipsoidSource (Tests)

Definition at line 60 of file vtkImageEllipsoidSource.h.

---

Constructor & Destructor Documentation

vtkImageEllipsoidSource::vtkImageEllipsoidSource (    )  [protected]

vtkImageEllipsoidSource::~vtkImageEllipsoidSource (    )  [protected]

---

Member Function Documentation

vtkImageEllipsoidSource* vtkImageEllipsoidSource::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkImageSource.

virtual const char* vtkImageEllipsoidSource::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageSource.

int vtkImageEllipsoidSource::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageSource.

virtual int vtkImageEllipsoidSource::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageSource.

vtkImageEllipsoidSource* vtkImageEllipsoidSource::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageSource.

void vtkImageEllipsoidSource::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkSource.

void vtkImageEllipsoidSource::SetWholeExtent (  int    extent[6] )

Set/Get the extent of the whole output image.

void vtkImageEllipsoidSource::SetWholeExtent (  int    minX, int    maxX, int    minY, int    maxY, int    minZ, int    maxZ )

Set/Get the extent of the whole output image.

void vtkImageEllipsoidSource::GetWholeExtent (  int    extent[6] )

Set/Get the extent of the whole output image.

int* vtkImageEllipsoidSource::GetWholeExtent (    )  [inline]

Set/Get the extent of the whole output image. Definition at line 73 of file vtkImageEllipsoidSource.h.

virtual void vtkImageEllipsoidSource::SetCenter (  float   , float   , float    )  [virtual]

Set/Get the center of the ellipsoid.

virtual void vtkImageEllipsoidSource::SetCenter (  float   [3] )  [virtual]

Set/Get the center of the ellipsoid.

virtual float* vtkImageEllipsoidSource::GetCenter (    )  [virtual]

Set/Get the center of the ellipsoid.

virtual void vtkImageEllipsoidSource::GetCenter (  float &   , float &   , float &    )  [virtual]

Set/Get the center of the ellipsoid.

virtual void vtkImageEllipsoidSource::GetCenter (  float   [3] )  [virtual]

Set/Get the center of the ellipsoid.

virtual void vtkImageEllipsoidSource::SetRadius (  float   , float   , float    )  [virtual]

Set/Get the radius of the ellipsoid.

virtual void vtkImageEllipsoidSource::SetRadius (  float   [3] )  [virtual]

Set/Get the radius of the ellipsoid.

virtual float* vtkImageEllipsoidSource::GetRadius (    )  [virtual]

Set/Get the radius of the ellipsoid.

virtual void vtkImageEllipsoidSource::GetRadius (  float &   , float &   , float &    )  [virtual]

Set/Get the radius of the ellipsoid.

virtual void vtkImageEllipsoidSource::GetRadius (  float   [3] )  [virtual]

Set/Get the radius of the ellipsoid.

virtual void vtkImageEllipsoidSource::SetInValue (  float    )  [virtual]

Set/Get the inside pixel values.

virtual float vtkImageEllipsoidSource::GetInValue (    )  [virtual]

Set/Get the inside pixel values.

virtual void vtkImageEllipsoidSource::SetOutValue (  float    )  [virtual]

Set/Get the outside pixel values.

virtual float vtkImageEllipsoidSource::GetOutValue (    )  [virtual]

Set/Get the outside pixel values.

virtual void vtkImageEllipsoidSource::SetOutputScalarType (  int    )  [virtual]

Set what type of scalar data this source should generate.

virtual int vtkImageEllipsoidSource::GetOutputScalarType (    )  [virtual]

Set what type of scalar data this source should generate.

void vtkImageEllipsoidSource::SetOutputScalarTypeToDouble (    )  [inline]

Set what type of scalar data this source should generate. Definition at line 104 of file vtkImageEllipsoidSource.h.

void vtkImageEllipsoidSource::SetOutputScalarTypeToFloat (    )  [inline]

Set what type of scalar data this source should generate. Definition at line 106 of file vtkImageEllipsoidSource.h.

void vtkImageEllipsoidSource::SetOutputScalarTypeToLong (    )  [inline]

Set what type of scalar data this source should generate. Definition at line 108 of file vtkImageEllipsoidSource.h.

void vtkImageEllipsoidSource::SetOutputScalarTypeToUnsignedLong (    )  [inline]

Set what type of scalar data this source should generate. Definition at line 110 of file vtkImageEllipsoidSource.h.

void vtkImageEllipsoidSource::SetOutputScalarTypeToInt (    )  [inline]

Set what type of scalar data this source should generate. Definition at line 112 of file vtkImageEllipsoidSource.h.

void vtkImageEllipsoidSource::SetOutputScalarTypeToUnsignedInt (    )  [inline]

Set what type of scalar data this source should generate. Definition at line 114 of file vtkImageEllipsoidSource.h.

void vtkImageEllipsoidSource::SetOutputScalarTypeToShort (    )  [inline]

Set what type of scalar data this source should generate. Definition at line 116 of file vtkImageEllipsoidSource.h.

void vtkImageEllipsoidSource::SetOutputScalarTypeToUnsignedShort (    )  [inline]

Set what type of scalar data this source should generate. Definition at line 118 of file vtkImageEllipsoidSource.h.

void vtkImageEllipsoidSource::SetOutputScalarTypeToChar (    )  [inline]

Set what type of scalar data this source should generate. Definition at line 120 of file vtkImageEllipsoidSource.h.

void vtkImageEllipsoidSource::SetOutputScalarTypeToUnsignedChar (    )  [inline]

Set what type of scalar data this source should generate. Definition at line 122 of file vtkImageEllipsoidSource.h.

virtual void vtkImageEllipsoidSource::ExecuteInformation (    )  [protected, virtual]

Reimplemented from vtkSource.

virtual void vtkImageEllipsoidSource::ExecuteData (  vtkDataObject *    outData )  [protected, virtual]

---

Member Data Documentation

int vtkImageEllipsoidSource::WholeExtent[6] [protected]

Definition at line 130 of file vtkImageEllipsoidSource.h.

float vtkImageEllipsoidSource::Center[3] [protected]

Definition at line 131 of file vtkImageEllipsoidSource.h.

float vtkImageEllipsoidSource::Radius[3] [protected]

Definition at line 132 of file vtkImageEllipsoidSource.h.

float vtkImageEllipsoidSource::InValue [protected]

Definition at line 133 of file vtkImageEllipsoidSource.h.

float vtkImageEllipsoidSource::OutValue [protected]

Definition at line 134 of file vtkImageEllipsoidSource.h.

int vtkImageEllipsoidSource::OutputScalarType [protected]

Definition at line 135 of file vtkImageEllipsoidSource.h.

---

The documentation for this class was generated from the following file:

• Imaging/vtkImageEllipsoidSource.h

---
