vtkMutexLock Class Reference

mutual exclusion locking class. More...

#include <vtkMutexLock.h>

Inheritance diagram for vtkMutexLock:

Inheritance graph
[legend]

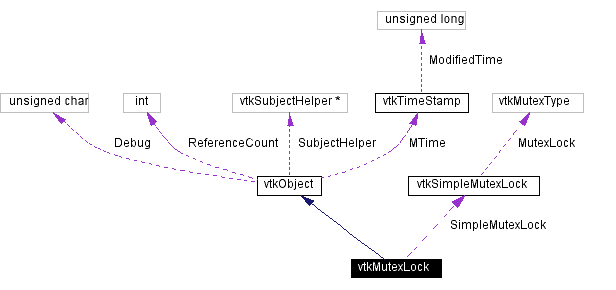

Collaboration diagram for vtkMutexLock:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void Lock (void)
void Unlock (void)

Static Public Methods

vtkMutexLock * New ()
int IsTypeOf (const char *type)
vtkMutexLock * SafeDownCast (vtkObject *o)

Protected Methods

 vtkMutexLock ()

Protected Attributes

vtkSimpleMutexLock SimpleMutexLock

Detailed Description

mutual exclusion locking class.

Date:
2001/10/11 13:36:18
Revision:
1.21

vtkMutexLock allows the locking of variables which are accessed through different threads. This header file also defines vtkSimpleMutexLock which is not a subclass of vtkObject.

Definition at line 110 of file vtkMutexLock.h.


Constructor & Destructor Documentation

vtkMutexLock::vtkMutexLock   [inline, protected]


Definition at line 126 of file vtkMutexLock.h.


Member Function Documentation

vtkMutexLock* vtkMutexLock::New   [static]


Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkMutexLock::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

int vtkMutexLock::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkMutexLock::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

vtkMutexLock* vtkMutexLock::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

void vtkMutexLock::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

void vtkMutexLock::Lock void    [inline]


Lock the vtkMutexLock

Definition at line 133 of file vtkMutexLock.h.

void vtkMutexLock::Unlock void    [inline]


Unlock the vtkMutexLock

Definition at line 138 of file vtkMutexLock.h.


Member Data Documentation

vtkSimpleMutexLock vtkMutexLock::SimpleMutexLock [protected]


Definition at line 125 of file vtkMutexLock.h.


The documentation for this class was generated from the following file:
