vtkObjectFactory Class Reference

abstract base class for vtkObjectFactories. More...

#include <vtkObjectFactory.h>

Inheritance diagram for vtkObjectFactory:

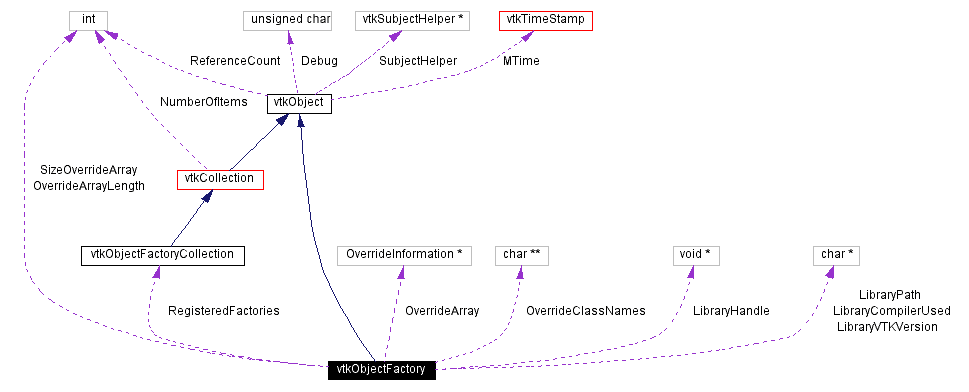

[legend]Collaboration diagram for vtkObjectFactory:

[legend]List of all members.

Public Types
typedef vtkObject *(*	CreateFunction )()
Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	PrintSelf (ostream &os, vtkIndent indent)
virtual const char *	GetVTKSourceVersion ()=0
virtual const char *	GetDescription ()=0
virtual int	GetNumberOfOverrides ()
virtual const char *	GetClassOverrideName (int index)
virtual const char *	GetClassOverrideWithName (int index)
virtual int	GetEnableFlag (int index)
virtual const char *	GetOverrideDescription (int index)
virtual void	Disable (const char *className)
virtual void	SetEnableFlag (int flag, const char *className, const char *subclassName)
virtual int	GetEnableFlag (const char *className, const char *subclassName)
virtual int	HasOverride (const char *className)
virtual int	HasOverride (const char *className, const char *subclassName)
virtual char *	GetLibraryPath ()
Static Public Methods
vtkObjectFactoryCollection *	GetRegisteredFactories ()
int	HasOverrideAny (const char *className)
int	IsTypeOf (const char *type)
vtkObjectFactory *	SafeDownCast (vtkObject *o)
vtkObject *	CreateInstance (const char *vtkclassname)
void	ReHash ()
void	RegisterFactory (vtkObjectFactory *)
void	UnRegisterFactory (vtkObjectFactory *)
void	UnRegisterAllFactories ()
void	GetOverrideInformation (const char *name, vtkOverrideInformationCollection *)
void	SetAllEnableFlags (int flag, const char *className)
void	SetAllEnableFlags (int flag, const char *className, const char *subclassName)
Protected Methods
virtual vtkObject *	CreateObject (const char *vtkclassname)
	vtkObjectFactory ()
	~vtkObjectFactory ()
void	RegisterOverride (const char *classOverride, const char *overrideClassName, const char *description, int enableFlag, CreateFunction createFunction)
Protected Attributes
OverrideInformation *	OverrideArray
char **	OverrideClassNames
int	SizeOverrideArray
int	OverrideArrayLength

---

Detailed Description

abstract base class for vtkObjectFactories.

Date:

2001/11/13 14:09:27

Revision:

1.20

Thanks:

Thanks to William A. Hoffman who developed this class

vtkObjectFactory is used to create vtk objects. The base class vtkObjectFactory contains a static method CreateInstance which is used to create vtk objects from the list of registered vtkObjectFactory sub-classes. The first time CreateInstance is called, all dll's or shared libraries in the environment variable VTK_AUTOLOAD_PATH are loaded into the current process. The C functions vtkLoad, vtkGetFactoryCompilerUsed, and vtkGetFactoryVersion are called on each dll. To implement these functions in a shared library or dll, use the macro: VTK_FACTORY_INTERFACE_IMPLEMENT. VTK_AUTOLOAD_PATH is an environment variable containing a colon separated (semi-colon on win32) list of paths.

The vtkObjectFactory can be use to override the creation of any object in VTK with a sub-class of that object. The factories can be registered either at run time with the VTK_AUTOLOAD_PATH, or at compile time with the vtkObjectFactory::RegisterFactory method.

Examples:

vtkObjectFactory (Examples)

Tests:

vtkObjectFactory (Tests)

Definition at line 83 of file vtkObjectFactory.h.

---

Member Typedef Documentation

typedef vtkObject*(* vtkObjectFactory::CreateFunction)()

---

Constructor & Destructor Documentation

vtkObjectFactory::vtkObjectFactory (    )  [protected]

vtkObjectFactory::~vtkObjectFactory (    )  [protected]

---

Member Function Documentation

vtkObject* vtkObjectFactory::CreateInstance (  const char *    vtkclassname )  [static]

Create and return an instance of the named vtk object. Each loaded vtkObjectFactory will be asked in the order the factory was in the VTK_AUTOLOAD_PATH. After the first factory returns the object no other factories are asked. Referenced by vtkRayCaster::New().

void vtkObjectFactory::ReHash (    )  [static]

Create and return an instance of the named vtk object. Each loaded vtkObjectFactory will be asked in the order the factory was in the VTK_AUTOLOAD_PATH. After the first factory returns the object no other factories are asked.

void vtkObjectFactory::RegisterFactory (  vtkObjectFactory *    )  [static]

Create and return an instance of the named vtk object. Each loaded vtkObjectFactory will be asked in the order the factory was in the VTK_AUTOLOAD_PATH. After the first factory returns the object no other factories are asked.

void vtkObjectFactory::UnRegisterFactory (  vtkObjectFactory *    )  [static]

Create and return an instance of the named vtk object. Each loaded vtkObjectFactory will be asked in the order the factory was in the VTK_AUTOLOAD_PATH. After the first factory returns the object no other factories are asked.

void vtkObjectFactory::UnRegisterAllFactories (    )  [static]

Create and return an instance of the named vtk object. Each loaded vtkObjectFactory will be asked in the order the factory was in the VTK_AUTOLOAD_PATH. After the first factory returns the object no other factories are asked.

vtkObjectFactoryCollection* vtkObjectFactory::GetRegisteredFactories (    )  [static]

Return the list of all registered factories. This is NOT a copy, do not remove items from this list!

int vtkObjectFactory::HasOverrideAny (  const char *    className )  [static]

return 1 if one of the registered factories overrides the given class name

void vtkObjectFactory::GetOverrideInformation (  const char *    name, vtkOverrideInformationCollection *    )  [static]

Fill the given collection with all the overrides for the class with the given name.

void vtkObjectFactory::SetAllEnableFlags (  int    flag, const char *    className )  [static]

Set the enable flag for a given named class for all registered factories.

void vtkObjectFactory::SetAllEnableFlags (  int    flag, const char *    className, const char *    subclassName )  [static]

Set the enable flag for a given named class for all registered factories.

virtual const char* vtkObjectFactory::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkObject. Reimplemented in vtkParallelFactory, and vtkKitwareObjectFactory.

int vtkObjectFactory::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkObject. Reimplemented in vtkParallelFactory, and vtkKitwareObjectFactory.

virtual int vtkObjectFactory::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkObject. Reimplemented in vtkParallelFactory, and vtkKitwareObjectFactory.

vtkObjectFactory* vtkObjectFactory::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkObject. Reimplemented in vtkParallelFactory, and vtkKitwareObjectFactory.

virtual void vtkObjectFactory::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Print ObjectFactory to stream. Reimplemented from vtkObject. Reimplemented in vtkParallelFactory, and vtkKitwareObjectFactory.

virtual const char* vtkObjectFactory::GetVTKSourceVersion (    )  [pure virtual]

All sub-classes of vtkObjectFactory should must return the version of VTK they were built with. This should be implemented with the macro VTK_SOURCE_VERSION and NOT a call to vtkVersion::GetVTKSourceVersion. As the version needs to be compiled into the file as a string constant. This is critical to determine possible incompatible dynamic factory loads. Reimplemented in vtkParallelFactory, and vtkKitwareObjectFactory.

virtual const char* vtkObjectFactory::GetDescription (    )  [pure virtual]

Return a descriptive string describing the factory. Reimplemented in vtkParallelFactory.

virtual int vtkObjectFactory::GetNumberOfOverrides (    )  [virtual]

Return number of overrides this factory can create.

virtual const char* vtkObjectFactory::GetClassOverrideName (  int    index )  [virtual]

Return the name of a class override at the given index.

virtual const char* vtkObjectFactory::GetClassOverrideWithName (  int    index )  [virtual]

Return the name of the class that will override the class at the given index

virtual int vtkObjectFactory::GetEnableFlag (  int    index )  [virtual]

Return the enable flag for the class at the given index.

virtual const char* vtkObjectFactory::GetOverrideDescription (  int    index )  [virtual]

Return the description for a the class override at the given index.

virtual void vtkObjectFactory::SetEnableFlag (  int    flag, const char *    className, const char *    subclassName )  [virtual]

Set and Get the Enable flag for the specific override of className. if subclassName is null, then it is ignored.

virtual int vtkObjectFactory::GetEnableFlag (  const char *    className, const char *    subclassName )  [virtual]

Set and Get the Enable flag for the specific override of className. if subclassName is null, then it is ignored.

virtual int vtkObjectFactory::HasOverride (  const char *    className )  [virtual]

Return 1 if this factory overrides the given class name, 0 otherwise.

virtual int vtkObjectFactory::HasOverride (  const char *    className, const char *    subclassName )  [virtual]

Return 1 if this factory overrides the given class name, 0 otherwise.

virtual void vtkObjectFactory::Disable (  const char *    className )  [virtual]

Set all enable flags for the given class to 0. This will mean that the factory will stop producing class with the given name.

virtual char* vtkObjectFactory::GetLibraryPath (    )  [virtual]

This returns the path to a dynamically loaded factory.

void vtkObjectFactory::RegisterOverride (  const char *    classOverride, const char *    overrideClassName, const char *    description, int    enableFlag, CreateFunction    createFunction )  [protected]

Register object creation information with the factory.

virtual vtkObject* vtkObjectFactory::CreateObject (  const char *    vtkclassname )  [protected, virtual]

This method is provided by sub-classes of vtkObjectFactory. It should create the named vtk object or return 0 if that object is not supported by the factory implementation. Reimplemented in vtkKitwareObjectFactory.

---

Member Data Documentation

OverrideInformation* vtkObjectFactory::OverrideArray [protected]

Definition at line 232 of file vtkObjectFactory.h.

char** vtkObjectFactory::OverrideClassNames [protected]

Definition at line 233 of file vtkObjectFactory.h.

int vtkObjectFactory::SizeOverrideArray [protected]

Definition at line 234 of file vtkObjectFactory.h.

int vtkObjectFactory::OverrideArrayLength [protected]

Definition at line 235 of file vtkObjectFactory.h.

---

The documentation for this class was generated from the following file:

• Common/vtkObjectFactory.h

---
