vtkPPolyDataNormals Class Reference

compute normals for polygonal mesh. More...

#include <vtkPPolyDataNormals.h>

Inheritance diagram for vtkPPolyDataNormals:

Inheritance graph
[legend]

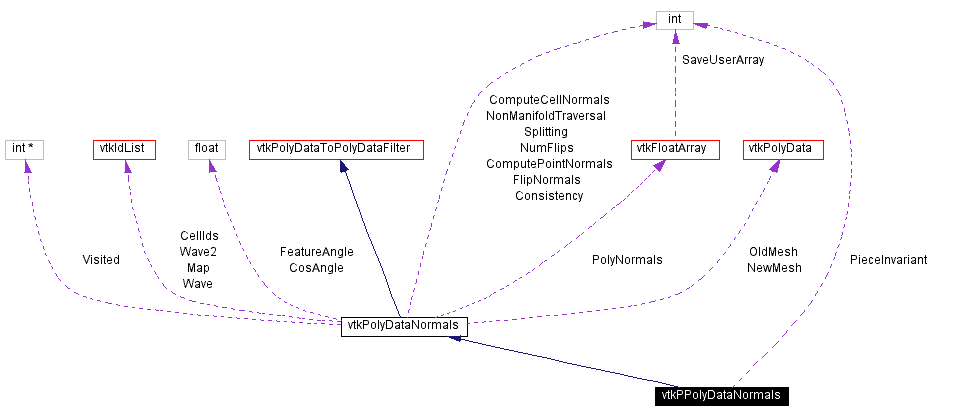

Collaboration diagram for vtkPPolyDataNormals:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetPieceInvariant (int)
virtual int GetPieceInvariant ()
virtual void PieceInvariantOn ()
virtual void PieceInvariantOff ()

Static Public Methods

int IsTypeOf (const char *type)
vtkPPolyDataNormals * SafeDownCast (vtkObject *o)
vtkPPolyDataNormals * New ()

Protected Methods

 vtkPPolyDataNormals ()
 ~vtkPPolyDataNormals ()
virtual void Execute ()
void ComputeInputUpdateExtents (vtkDataObject *output)

Protected Attributes

int PieceInvariant

Detailed Description

compute normals for polygonal mesh.

Date:
2001/10/11 13:38:00
Revision:
1.5

Definition at line 53 of file vtkPPolyDataNormals.h.


Constructor & Destructor Documentation

vtkPPolyDataNormals::vtkPPolyDataNormals   [protected]


vtkPPolyDataNormals::~vtkPPolyDataNormals   [inline, protected]


Definition at line 71 of file vtkPPolyDataNormals.h.


Member Function Documentation

virtual const char* vtkPPolyDataNormals::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataNormals.

int vtkPPolyDataNormals::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataNormals.

virtual int vtkPPolyDataNormals::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataNormals.

vtkPPolyDataNormals* vtkPPolyDataNormals::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataNormals.

void vtkPPolyDataNormals::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataNormals.

vtkPPolyDataNormals* vtkPPolyDataNormals::New   [static]


Construct with feature angle=30, splitting and consistency turned on, flipNormals turned off, and non-manifold traversal turned on. ComputePointNormals is on and ComputeCellNormals is off.

Reimplemented from vtkPolyDataNormals.

virtual void vtkPPolyDataNormals::SetPieceInvariant int    [virtual]


To get piece invariance, this filter has to request an extra ghost level. By default piece invariance is on.

virtual int vtkPPolyDataNormals::GetPieceInvariant   [virtual]


To get piece invariance, this filter has to request an extra ghost level. By default piece invariance is on.

virtual void vtkPPolyDataNormals::PieceInvariantOn   [virtual]


To get piece invariance, this filter has to request an extra ghost level. By default piece invariance is on.

virtual void vtkPPolyDataNormals::PieceInvariantOff   [virtual]


To get piece invariance, this filter has to request an extra ghost level. By default piece invariance is on.

virtual void vtkPPolyDataNormals::Execute   [protected, virtual]


This method is the old style execute method

Reimplemented from vtkPolyDataNormals.

void vtkPPolyDataNormals::ComputeInputUpdateExtents vtkDataObject   output [protected, virtual]


What is the input update extent that is required to produce the desired output? By default, the whole input is always required but this is overridden in many subclasses.

Reimplemented from vtkPolyDataSource.


Member Data Documentation

int vtkPPolyDataNormals::PieceInvariant [protected]


Definition at line 77 of file vtkPPolyDataNormals.h.


The documentation for this class was generated from the following file:
