vtkPSphereSource Class Reference

sphere source that supports pieces. More...

#include <vtkPSphereSource.h>

Inheritance diagram for vtkPSphereSource:

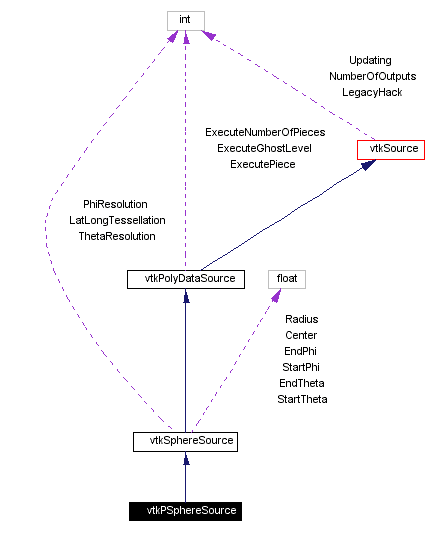

[legend]Collaboration diagram for vtkPSphereSource:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
unsigned long	GetEstimatedMemorySize ()
Static Public Methods
int	IsTypeOf (const char *type)
vtkPSphereSource *	SafeDownCast (vtkObject *o)
vtkPSphereSource *	New ()
Protected Methods
	vtkPSphereSource ()
	~vtkPSphereSource ()
void	Execute ()

---

Detailed Description

sphere source that supports pieces.

Date:

2001/10/11 13:38:00

Revision:

1.6

Definition at line 52 of file vtkPSphereSource.h.

---

Constructor & Destructor Documentation

vtkPSphereSource::vtkPSphereSource (    )  [inline, protected]

Definition at line 66 of file vtkPSphereSource.h.

vtkPSphereSource::~vtkPSphereSource (    )  [inline, protected]

Definition at line 67 of file vtkPSphereSource.h.

---

Member Function Documentation

virtual const char* vtkPSphereSource::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkSphereSource.

int vtkPSphereSource::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkSphereSource.

virtual int vtkPSphereSource::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkSphereSource.

vtkPSphereSource* vtkPSphereSource::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkSphereSource.

vtkPSphereSource* vtkPSphereSource::New (    )  [static]

Construct sphere with radius=0.5 and default resolution 8 in both Phi and Theta directions. Theta ranges from (0,360) and phi (0,180) degrees. Reimplemented from vtkSphereSource.

unsigned long vtkPSphereSource::GetEstimatedMemorySize (    )

Get the estimated memory size in 1024 bytes

void vtkPSphereSource::Execute (    )  [protected, virtual]

This method is the old style execute method Reimplemented from vtkSphereSource.

---

The documentation for this class was generated from the following file:

• Parallel/vtkPSphereSource.h

---
