vtkQuadric Class Reference

evaluate implicit quadric function. More...

#include <vtkQuadric.h>

Inheritance diagram for vtkQuadric:

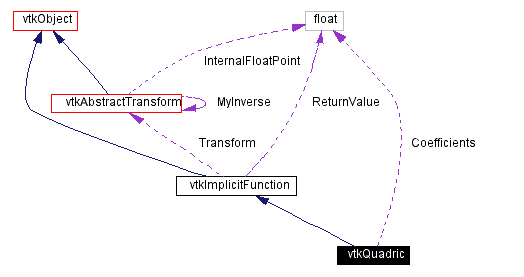

[legend]Collaboration diagram for vtkQuadric:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	EvaluateGradient (float x[3], float g[3])
float	EvaluateFunction (float x[3])
float	EvaluateFunction (float x, float y, float z)
void	SetCoefficients (float a[10])
void	SetCoefficients (float a0, float a1, float a2, float a3, float a4, float a5, float a6, float a7, float a8, float a9)
virtual float *	GetCoefficients ()
virtual void	GetCoefficients (float data[10])
Static Public Methods
int	IsTypeOf (const char *type)
vtkQuadric *	SafeDownCast (vtkObject *o)
vtkQuadric *	New ()
Protected Methods
	vtkQuadric ()
	~vtkQuadric ()
Protected Attributes
float	Coefficients [10]

---

Detailed Description

evaluate implicit quadric function.

Date:

2001/10/11 13:36:23

Revision:

1.5

vtkQuadric evaluates the quadric function F(x,y,z) = a0*x^2 + a1*y^2 + a2*z^2 + a3*x*y + a4*y*z + a5*x*z + a6*x + a7*y + a8*z + a9. vtkQuadric is a concrete implementation of vtkImplicitFunction.

Examples:

vtkQuadric (Examples)

Tests:

vtkQuadric (Tests)

Definition at line 62 of file vtkQuadric.h.

---

Constructor & Destructor Documentation

vtkQuadric::vtkQuadric (    )  [protected]

vtkQuadric::~vtkQuadric (    )  [inline, protected]

Definition at line 91 of file vtkQuadric.h.

---

Member Function Documentation

virtual const char* vtkQuadric::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImplicitFunction.

int vtkQuadric::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImplicitFunction.

virtual int vtkQuadric::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImplicitFunction.

vtkQuadric* vtkQuadric::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImplicitFunction.

void vtkQuadric::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkImplicitFunction.

vtkQuadric* vtkQuadric::New (    )  [static]

Construct quadric with all coefficients = 1. Reimplemented from vtkObject.

float vtkQuadric::EvaluateFunction (  float    x[3] )  [virtual]

Evaluate quadric equation. Reimplemented from vtkImplicitFunction.

float vtkQuadric::EvaluateFunction (  float    x, float    y, float    z )  [inline]

Evaluate quadric equation. Reimplemented from vtkImplicitFunction. Definition at line 74 of file vtkQuadric.h.

void vtkQuadric::EvaluateGradient (  float    x[3], float    g[3] )  [virtual]

Evaluate the gradient to the quadric equation. Reimplemented from vtkImplicitFunction.

void vtkQuadric::SetCoefficients (  float    a[10] )

Set / get the 10 coefficients of the quadric equation.

void vtkQuadric::SetCoefficients (  float    a0, float    a1, float    a2, float    a3, float    a4, float    a5, float    a6, float    a7, float    a8, float    a9 )

Set / get the 10 coefficients of the quadric equation.

virtual float* vtkQuadric::GetCoefficients (    )  [virtual]

Set / get the 10 coefficients of the quadric equation.

virtual void vtkQuadric::GetCoefficients (  float    data[10] )  [virtual]

Set / get the 10 coefficients of the quadric equation.

---

Member Data Documentation

float vtkQuadric::Coefficients[10] [protected]

Definition at line 93 of file vtkQuadric.h.

---

The documentation for this class was generated from the following file:

• Common/vtkQuadric.h

---
