vtkRTAnalyticSource Class Reference

Create an image for regression testing. More...

#include <vtkRTAnalyticSource.h>

Inheritance diagram for vtkRTAnalyticSource:

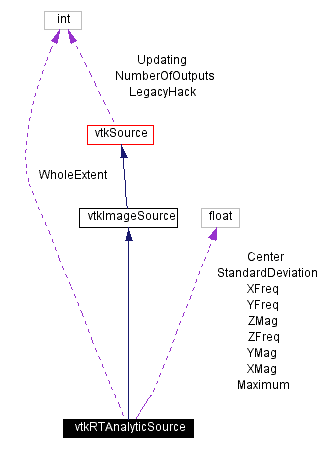

[legend]Collaboration diagram for vtkRTAnalyticSource:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetXMag (float)
virtual float	GetXMag ()
virtual void	SetYMag (float)
virtual float	GetYMag ()
virtual void	SetZMag (float)
virtual float	GetZMag ()
void	SetWholeExtent (int xMinx, int xMax, int yMin, int yMax, int zMin, int zMax)
virtual int *	GetWholeExtent ()
virtual void	GetWholeExtent (int &, int &, int &, int &, int &, int &)
virtual void	GetWholeExtent (int[6])
virtual void	SetCenter (float, float, float)
virtual void	SetCenter (float[3])
virtual float *	GetCenter ()
virtual void	GetCenter (float &, float &, float &)
virtual void	GetCenter (float[3])
virtual void	SetMaximum (float)
virtual float	GetMaximum ()
virtual void	SetStandardDeviation (float)
virtual float	GetStandardDeviation ()
virtual void	SetXFreq (float)
virtual float	GetXFreq ()
virtual void	SetYFreq (float)
virtual float	GetYFreq ()
virtual void	SetZFreq (float)
virtual float	GetZFreq ()
Static Public Methods
vtkRTAnalyticSource *	New ()
int	IsTypeOf (const char *type)
vtkRTAnalyticSource *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkRTAnalyticSource ()
	~vtkRTAnalyticSource ()
virtual void	ExecuteInformation ()
virtual void	ExecuteData (vtkDataObject *data)
Protected Attributes
float	XFreq
float	YFreq
float	ZFreq
float	XMag
float	YMag
float	ZMag
float	StandardDeviation
int	WholeExtent [6]
float	Center [3]
float	Maximum

---

Detailed Description

Create an image for regression testing.

Date:

2001/11/13 14:25:57

Revision:

1.7

Thanks:

Thanks to C. Charles Law who developed this class.

vtkRTAnalyticSource just produces images with pixel values determined by a Maximum*Gaussian*XMag*sin(XFreq*x)*sin(YFreq*y)*cos(ZFreq*z)

Examples:

vtkRTAnalyticSource (Examples)

Tests:

vtkRTAnalyticSource (Tests)

Definition at line 62 of file vtkRTAnalyticSource.h.

---

Constructor & Destructor Documentation

vtkRTAnalyticSource::vtkRTAnalyticSource (    )  [protected]

vtkRTAnalyticSource::~vtkRTAnalyticSource (    )  [inline, protected]

Definition at line 113 of file vtkRTAnalyticSource.h.

---

Member Function Documentation

vtkRTAnalyticSource* vtkRTAnalyticSource::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkImageSource.

virtual const char* vtkRTAnalyticSource::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageSource.

int vtkRTAnalyticSource::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageSource.

virtual int vtkRTAnalyticSource::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageSource.

vtkRTAnalyticSource* vtkRTAnalyticSource::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageSource.

void vtkRTAnalyticSource::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkSource.

void vtkRTAnalyticSource::SetWholeExtent (  int    xMinx, int    xMax, int    yMin, int    yMax, int    zMin, int    zMax )

Set/Get the extent of the whole output image.

virtual int* vtkRTAnalyticSource::GetWholeExtent (    )  [virtual]

Set/Get the extent of the whole output image.

virtual void vtkRTAnalyticSource::GetWholeExtent (  int &   , int &   , int &   , int &   , int &   , int &    )  [virtual]

Set/Get the extent of the whole output image.

virtual void vtkRTAnalyticSource::GetWholeExtent (  int   [6] )  [virtual]

Set/Get the extent of the whole output image.

virtual void vtkRTAnalyticSource::SetCenter (  float   , float   , float    )  [virtual]

Set/Get the center of function.

virtual void vtkRTAnalyticSource::SetCenter (  float   [3] )  [virtual]

Set/Get the center of function.

virtual float* vtkRTAnalyticSource::GetCenter (    )  [virtual]

Set/Get the center of function.

virtual void vtkRTAnalyticSource::GetCenter (  float &   , float &   , float &    )  [virtual]

Set/Get the center of function.

virtual void vtkRTAnalyticSource::GetCenter (  float   [3] )  [virtual]

Set/Get the center of function.

virtual void vtkRTAnalyticSource::SetMaximum (  float    )  [virtual]

Set/Get the Maximum value of the function.

virtual float vtkRTAnalyticSource::GetMaximum (    )  [virtual]

Set/Get the Maximum value of the function.

virtual void vtkRTAnalyticSource::SetStandardDeviation (  float    )  [virtual]

Set/Get the standard deviation of the function.

virtual float vtkRTAnalyticSource::GetStandardDeviation (    )  [virtual]

Set/Get the standard deviation of the function.

virtual void vtkRTAnalyticSource::SetXFreq (  float    )  [virtual]

Set the natural frequencies in x,y and z

virtual float vtkRTAnalyticSource::GetXFreq (    )  [virtual]

Set the natural frequencies in x,y and z

virtual void vtkRTAnalyticSource::SetYFreq (  float    )  [virtual]

Set the natural frequencies in x,y and z

virtual float vtkRTAnalyticSource::GetYFreq (    )  [virtual]

Set the natural frequencies in x,y and z

virtual void vtkRTAnalyticSource::SetZFreq (  float    )  [virtual]

Set the natural frequencies in x,y and z

virtual float vtkRTAnalyticSource::GetZFreq (    )  [virtual]

Set the natural frequencies in x,y and z

virtual void vtkRTAnalyticSource::SetXMag (  float    )  [virtual]

virtual float vtkRTAnalyticSource::GetXMag (    )  [virtual]

virtual void vtkRTAnalyticSource::SetYMag (  float    )  [virtual]

virtual float vtkRTAnalyticSource::GetYMag (    )  [virtual]

virtual void vtkRTAnalyticSource::SetZMag (  float    )  [virtual]

virtual float vtkRTAnalyticSource::GetZMag (    )  [virtual]

virtual void vtkRTAnalyticSource::ExecuteInformation (    )  [protected, virtual]

Reimplemented from vtkSource.

virtual void vtkRTAnalyticSource::ExecuteData (  vtkDataObject *    data )  [protected, virtual]

---

Member Data Documentation

float vtkRTAnalyticSource::XFreq [protected]

Definition at line 115 of file vtkRTAnalyticSource.h.

float vtkRTAnalyticSource::YFreq [protected]

Definition at line 116 of file vtkRTAnalyticSource.h.

float vtkRTAnalyticSource::ZFreq [protected]

Definition at line 117 of file vtkRTAnalyticSource.h.

float vtkRTAnalyticSource::XMag [protected]

Definition at line 118 of file vtkRTAnalyticSource.h.

float vtkRTAnalyticSource::YMag [protected]

Definition at line 119 of file vtkRTAnalyticSource.h.

float vtkRTAnalyticSource::ZMag [protected]

Definition at line 120 of file vtkRTAnalyticSource.h.

float vtkRTAnalyticSource::StandardDeviation [protected]

Definition at line 121 of file vtkRTAnalyticSource.h.

int vtkRTAnalyticSource::WholeExtent[6] [protected]

Definition at line 122 of file vtkRTAnalyticSource.h.

float vtkRTAnalyticSource::Center[3] [protected]

Definition at line 123 of file vtkRTAnalyticSource.h.

float vtkRTAnalyticSource::Maximum [protected]

Definition at line 124 of file vtkRTAnalyticSource.h.

---

The documentation for this class was generated from the following file:

• Parallel/vtkRTAnalyticSource.h

---
