vtkSampleFunction Class Reference

sample an implicit function over a structured point set. More...

#include <vtkSampleFunction.h>

Inheritance diagram for vtkSampleFunction:

Inheritance graph
[legend]

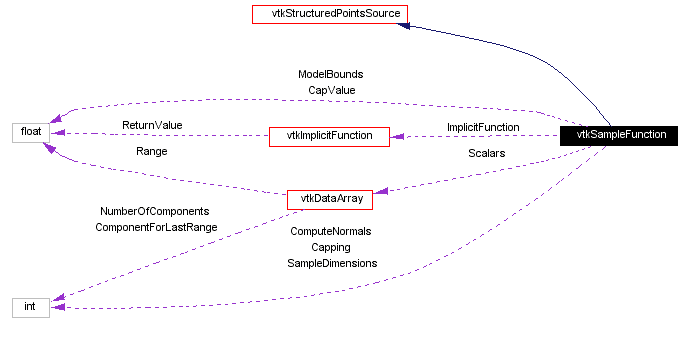

Collaboration diagram for vtkSampleFunction:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void SetSampleDimensions (int i, int j, int k)
unsigned long GetMTime ()
virtual void SetImplicitFunction (vtkImplicitFunction *)
virtual vtkImplicitFunctionGetImplicitFunction ()
virtual void SetScalars (vtkDataArray *)
void SetSampleDimensions (int dim[3])
virtual int * GetSampleDimensions ()
virtual void GetSampleDimensions (int data[3])
virtual void SetModelBounds (float, float, float, float, float, float)
virtual void SetModelBounds (float[6])
virtual float * GetModelBounds ()
virtual void GetModelBounds (float data[6])
virtual void SetCapping (int)
virtual int GetCapping ()
virtual void CappingOn ()
virtual void CappingOff ()
virtual void SetCapValue (float)
virtual float GetCapValue ()
virtual void SetComputeNormals (int)
virtual int GetComputeNormals ()
virtual void ComputeNormalsOn ()
virtual void ComputeNormalsOff ()

Static Public Methods

int IsTypeOf (const char *type)
vtkSampleFunction * SafeDownCast (vtkObject *o)
vtkSampleFunction * New ()

Protected Methods

 vtkSampleFunction ()
 ~vtkSampleFunction ()
void Execute ()
void ExecuteInformation ()
void Cap (vtkDataArray *s)

Protected Attributes

int SampleDimensions [3]
float ModelBounds [6]
vtkDataArrayScalars
int Capping
float CapValue
vtkImplicitFunctionImplicitFunction
int ComputeNormals

Detailed Description

sample an implicit function over a structured point set.

Date:
2001/11/02 16:42:55
Revision:
1.41

vtkSampleFunction is a source object that evaluates an implicit function and normals at each point in a vtkStructuredPoints. The user can specify the sample dimensions and location in space to perform the sampling. To create closed surfaces (in conjunction with the vtkContourFilter), capping can be turned on to set a particular value on the boundaries of the sample space.

See also:
vtkImplicitModeller
Examples:
vtkSampleFunction (Examples)
Tests:
vtkSampleFunction (Tests)

Definition at line 69 of file vtkSampleFunction.h.


Constructor & Destructor Documentation

vtkSampleFunction::vtkSampleFunction   [protected]


vtkSampleFunction::~vtkSampleFunction   [protected]



Member Function Documentation

virtual const char* vtkSampleFunction::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkStructuredPointsSource.

int vtkSampleFunction::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkStructuredPointsSource.

virtual int vtkSampleFunction::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkStructuredPointsSource.

vtkSampleFunction* vtkSampleFunction::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkStructuredPointsSource.

void vtkSampleFunction::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkSource.

vtkSampleFunction* vtkSampleFunction::New   [static]


Construct with ModelBounds=(-1,1,-1,1,-1,1), SampleDimensions=(50,50,50), Capping turned off, and normal generation on.

Reimplemented from vtkStructuredPointsSource.

virtual void vtkSampleFunction::SetImplicitFunction vtkImplicitFunction   [virtual]


Specify the implicit function to use to generate data.

virtual vtkImplicitFunction* vtkSampleFunction::GetImplicitFunction   [virtual]


Specify the implicit function to use to generate data.

virtual void vtkSampleFunction::SetScalars vtkDataArray   [virtual]


Control the type of the scalars object by explicitly providing a scalar object. vtkSampleFunction() will allocate space (as necessary) in the scalar object.

void vtkSampleFunction::SetSampleDimensions int    i,
int    j,
int    k


Specify the dimensions of the data on which to sample.

void vtkSampleFunction::SetSampleDimensions int    dim[3]


Specify the dimensions of the data on which to sample.

virtual int* vtkSampleFunction::GetSampleDimensions   [virtual]


Specify the dimensions of the data on which to sample.

virtual void vtkSampleFunction::GetSampleDimensions int    data[3] [virtual]


Specify the dimensions of the data on which to sample.

virtual void vtkSampleFunction::SetModelBounds float   ,
float   ,
float   ,
float   ,
float   ,
float
[virtual]


Specify the region in space over which the sampling occurs.

virtual void vtkSampleFunction::SetModelBounds float   [6] [virtual]


Specify the region in space over which the sampling occurs.

virtual float* vtkSampleFunction::GetModelBounds   [virtual]


Specify the region in space over which the sampling occurs.

virtual void vtkSampleFunction::GetModelBounds float    data[6] [virtual]


Specify the region in space over which the sampling occurs.

virtual void vtkSampleFunction::SetCapping int    [virtual]


Turn on/off capping. If capping is on, then the outer boundaries of the structured point set are set to cap value. This can be used to insure surfaces are closed.

virtual int vtkSampleFunction::GetCapping   [virtual]


Turn on/off capping. If capping is on, then the outer boundaries of the structured point set are set to cap value. This can be used to insure surfaces are closed.

virtual void vtkSampleFunction::CappingOn   [virtual]


Turn on/off capping. If capping is on, then the outer boundaries of the structured point set are set to cap value. This can be used to insure surfaces are closed.

virtual void vtkSampleFunction::CappingOff   [virtual]


Turn on/off capping. If capping is on, then the outer boundaries of the structured point set are set to cap value. This can be used to insure surfaces are closed.

virtual void vtkSampleFunction::SetCapValue float    [virtual]


Set the cap value.

virtual float vtkSampleFunction::GetCapValue   [virtual]


Set the cap value.

virtual void vtkSampleFunction::SetComputeNormals int    [virtual]


Turn on/off the computation of normals.

virtual int vtkSampleFunction::GetComputeNormals   [virtual]


Turn on/off the computation of normals.

virtual void vtkSampleFunction::ComputeNormalsOn   [virtual]


Turn on/off the computation of normals.

virtual void vtkSampleFunction::ComputeNormalsOff   [virtual]


Turn on/off the computation of normals.

unsigned long vtkSampleFunction::GetMTime   [virtual]


Return the MTime also considering the implicit function.

Reimplemented from vtkObject.

void vtkSampleFunction::Execute   [protected, virtual]


This method is the old style execute method

Reimplemented from vtkSource.

void vtkSampleFunction::ExecuteInformation   [protected, virtual]


Reimplemented from vtkStructuredPointsSource.

void vtkSampleFunction::Cap vtkDataArray   s [protected]



Member Data Documentation

int vtkSampleFunction::SampleDimensions[3] [protected]


Definition at line 141 of file vtkSampleFunction.h.

float vtkSampleFunction::ModelBounds[6] [protected]


Definition at line 142 of file vtkSampleFunction.h.

vtkDataArray* vtkSampleFunction::Scalars [protected]


Definition at line 143 of file vtkSampleFunction.h.

int vtkSampleFunction::Capping [protected]


Definition at line 144 of file vtkSampleFunction.h.

float vtkSampleFunction::CapValue [protected]


Definition at line 145 of file vtkSampleFunction.h.

vtkImplicitFunction* vtkSampleFunction::ImplicitFunction [protected]


Definition at line 146 of file vtkSampleFunction.h.

int vtkSampleFunction::ComputeNormals [protected]


Definition at line 147 of file vtkSampleFunction.h.
