vtkTensor Class Reference

supporting class to enable assignment and referencing of tensors. More...

#include <vtkTensor.h>

Inheritance diagram for vtkTensor:

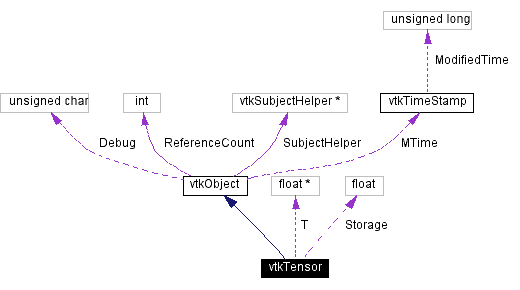

[legend]Collaboration diagram for vtkTensor:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	Initialize ()
float	GetComponent (int i, int j)
void	DeepCopy (vtkTensor *t)
	operator float * ()
void	SetComponent (int i, int j, float v)
void	AddComponent (int i, int j, float v)
float *	GetColumn (int j)
Static Public Methods
vtkTensor *	New ()
int	IsTypeOf (const char *type)
vtkTensor *	SafeDownCast (vtkObject *o)
Public Attributes
float *	T
Protected Methods
	vtkTensor ()
	~vtkTensor ()
Protected Attributes
float	Storage [9]

---

Detailed Description

supporting class to enable assignment and referencing of tensors.

Date:

2001/10/11 13:36:26

Revision:

1.35

vtkTensor is a floating point representation of an nxn tensor. vtkTensor provides methods for assignment and reference of tensor components. It does it in such a way as to minimize data copying.

Warning:

vtkTensor performs its operations using pointer reference. You are responsible for supplying data storage (if necessary) if local copies of data are being made.

Definition at line 61 of file vtkTensor.h.

---

Constructor & Destructor Documentation

vtkTensor::vtkTensor (    )  [protected]

vtkTensor::~vtkTensor (    )  [inline, protected]

Definition at line 100 of file vtkTensor.h.

---

Member Function Documentation

vtkTensor* vtkTensor::New (    )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkObject.

virtual const char* vtkTensor::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkObject.

int vtkTensor::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkObject.

virtual int vtkTensor::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkObject.

vtkTensor* vtkTensor::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkObject.

void vtkTensor::Initialize (    )  [inline]

Initialize tensor components to 0.0. Definition at line 108 of file vtkTensor.h.

float vtkTensor::GetComponent (  int    i, int    j )  [inline]

Get the tensor component (i,j). Definition at line 71 of file vtkTensor.h.

void vtkTensor::SetComponent (  int    i, int    j, float    v )  [inline]

Set the value of the tensor component (i,j). Definition at line 75 of file vtkTensor.h.

void vtkTensor::AddComponent (  int    i, int    j, float    v )  [inline]

Add to the value of the tensor component at location (i,j). Definition at line 80 of file vtkTensor.h.

float* vtkTensor::GetColumn (  int    j )  [inline]

Return column vector from tensor. (Assumes 2D matrix form and 0-offset.) Definition at line 86 of file vtkTensor.h.

void vtkTensor::DeepCopy (  vtkTensor *    t )  [inline]

Deep copy of one tensor to another tensor. Definition at line 119 of file vtkTensor.h.

vtkTensor::operator float * (    )  [inline]

Provide float * type conversion. Definition at line 93 of file vtkTensor.h.

---

Member Data Documentation

float* vtkTensor::T

Data member left public for efficiency. Definition at line 96 of file vtkTensor.h. Referenced by DeepCopy().

float vtkTensor::Storage[9] [protected]

Definition at line 102 of file vtkTensor.h.

---

The documentation for this class was generated from the following file:

• Common/vtkTensor.h

---
