vtkTransformConcatenation Class Reference

#include <vtkAbstractTransform.h>

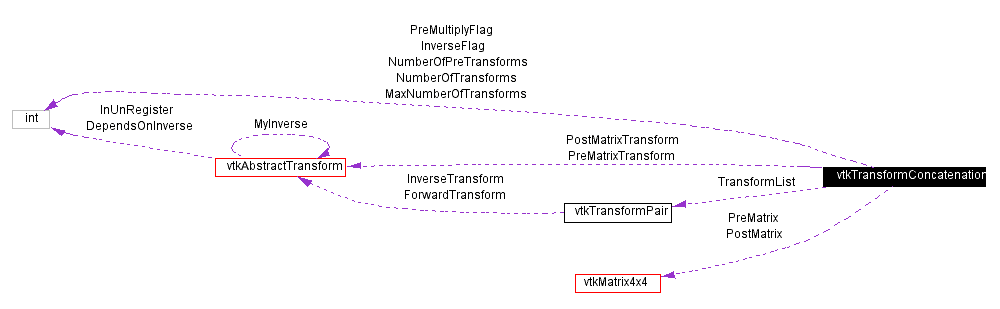

Collaboration diagram for vtkTransformConcatenation:

[legend]List of all members.

Public Methods
void	Delete ()
void	Concatenate (vtkAbstractTransform *transform)
void	Concatenate (const double elements[16])
void	SetPreMultiplyFlag (int flag)
int	GetPreMultiplyFlag ()
void	Translate (double x, double y, double z)
void	Rotate (double angle, double x, double y, double z)
void	Scale (double x, double y, double z)
void	Inverse ()
int	GetInverseFlag ()
void	Identity ()
void	DeepCopy (vtkTransformConcatenation *transform)
int	GetNumberOfTransforms ()
int	GetNumberOfPreTransforms ()
int	GetNumberOfPostTransforms ()
vtkAbstractTransform *	GetTransform (int i)
unsigned long	GetMaxMTime ()
void	PrintSelf (ostream &os, vtkIndent indent)
Static Public Methods
vtkTransformConcatenation *	New ()
Protected Methods
	vtkTransformConcatenation ()
	~vtkTransformConcatenation ()
Protected Attributes
int	InverseFlag
int	PreMultiplyFlag
vtkMatrix4x4 *	PreMatrix
vtkMatrix4x4 *	PostMatrix
vtkAbstractTransform *	PreMatrixTransform
vtkAbstractTransform *	PostMatrixTransform
int	NumberOfTransforms
int	NumberOfPreTransforms
int	MaxNumberOfTransforms
vtkTransformPair *	TransformList

---

Constructor & Destructor Documentation

vtkTransformConcatenation::vtkTransformConcatenation (    )  [protected]

vtkTransformConcatenation::~vtkTransformConcatenation (    )  [protected]

---

Member Function Documentation

vtkTransformConcatenation* vtkTransformConcatenation::New (    )  [inline, static]

Definition at line 346 of file vtkAbstractTransform.h.

void vtkTransformConcatenation::Delete (    )  [inline]

Definition at line 348 of file vtkAbstractTransform.h.

void vtkTransformConcatenation::Concatenate (  vtkAbstractTransform *    transform )

void vtkTransformConcatenation::Concatenate (  const double    elements[16] )

void vtkTransformConcatenation::SetPreMultiplyFlag (  int    flag )  [inline]

Definition at line 357 of file vtkAbstractTransform.h.

int vtkTransformConcatenation::GetPreMultiplyFlag (    )  [inline]

Definition at line 358 of file vtkAbstractTransform.h.

void vtkTransformConcatenation::Translate (  double    x, double    y, double    z )

void vtkTransformConcatenation::Rotate (  double    angle, double    x, double    y, double    z )

void vtkTransformConcatenation::Scale (  double    x, double    y, double    z )

void vtkTransformConcatenation::Inverse (    )

int vtkTransformConcatenation::GetInverseFlag (    )  [inline]

Definition at line 369 of file vtkAbstractTransform.h.

void vtkTransformConcatenation::Identity (    )

void vtkTransformConcatenation::DeepCopy (  vtkTransformConcatenation *    transform )

int vtkTransformConcatenation::GetNumberOfTransforms (    )  [inline]

Definition at line 378 of file vtkAbstractTransform.h.

int vtkTransformConcatenation::GetNumberOfPreTransforms (    )  [inline]

Definition at line 383 of file vtkAbstractTransform.h.

int vtkTransformConcatenation::GetNumberOfPostTransforms (    )  [inline]

Definition at line 386 of file vtkAbstractTransform.h.

vtkAbstractTransform* vtkTransformConcatenation::GetTransform (  int    i )

unsigned long vtkTransformConcatenation::GetMaxMTime (    )

void vtkTransformConcatenation::PrintSelf (  ostream &    os, vtkIndent    indent )

---

Member Data Documentation

int vtkTransformConcatenation::InverseFlag [protected]

Definition at line 401 of file vtkAbstractTransform.h.

int vtkTransformConcatenation::PreMultiplyFlag [protected]

Definition at line 402 of file vtkAbstractTransform.h.

vtkMatrix4x4* vtkTransformConcatenation::PreMatrix [protected]

Definition at line 404 of file vtkAbstractTransform.h.

vtkMatrix4x4* vtkTransformConcatenation::PostMatrix [protected]

Definition at line 405 of file vtkAbstractTransform.h.

vtkAbstractTransform* vtkTransformConcatenation::PreMatrixTransform [protected]

Definition at line 406 of file vtkAbstractTransform.h.

vtkAbstractTransform* vtkTransformConcatenation::PostMatrixTransform [protected]

Definition at line 407 of file vtkAbstractTransform.h.

int vtkTransformConcatenation::NumberOfTransforms [protected]

Definition at line 409 of file vtkAbstractTransform.h.

int vtkTransformConcatenation::NumberOfPreTransforms [protected]

Definition at line 410 of file vtkAbstractTransform.h.

int vtkTransformConcatenation::MaxNumberOfTransforms [protected]

Definition at line 411 of file vtkAbstractTransform.h.

vtkTransformPair* vtkTransformConcatenation::TransformList [protected]

Definition at line 412 of file vtkAbstractTransform.h.

---

The documentation for this class was generated from the following file:

• Common/vtkAbstractTransform.h

---
