vtkTransformToGrid Class Reference

create a grid for a vtkGridTransform. More...

#include <vtkTransformToGrid.h>

Inheritance diagram for vtkTransformToGrid:

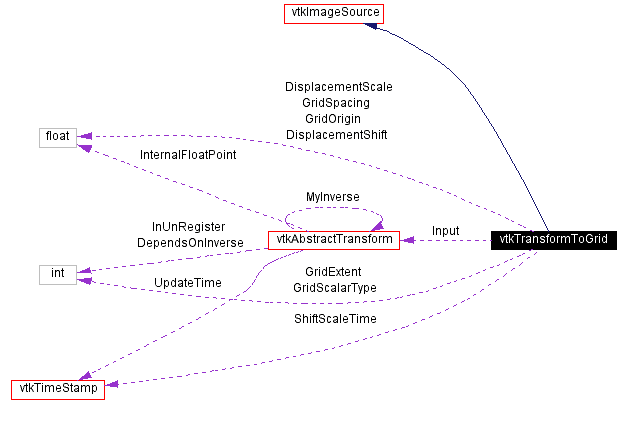

[legend]Collaboration diagram for vtkTransformToGrid:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetInput (vtkAbstractTransform *)
virtual vtkAbstractTransform *	GetInput ()
virtual void	SetGridExtent (int, int, int, int, int, int)
virtual void	SetGridExtent (int[6])
virtual int *	GetGridExtent ()
virtual void	GetGridExtent (int &, int &, int &, int &, int &, int &)
virtual void	GetGridExtent (int[6])
virtual void	SetGridOrigin (float, float, float)
virtual void	SetGridOrigin (float[3])
virtual float *	GetGridOrigin ()
virtual void	GetGridOrigin (float &, float &, float &)
virtual void	GetGridOrigin (float[3])
virtual void	SetGridSpacing (float, float, float)
virtual void	SetGridSpacing (float[3])
virtual float *	GetGridSpacing ()
virtual void	GetGridSpacing (float &, float &, float &)
virtual void	GetGridSpacing (float[3])
virtual void	SetGridScalarType (int)
virtual int	GetGridScalarType ()
void	SetGridScalarTypeToFloat ()
void	SetGridScalarTypeToShort ()
void	SetGridScalarTypeToUnsignedShort ()
void	SetGridScalarTypeToUnsignedChar ()
void	SetGridScalarTypeToChar ()
float	GetDisplacementScale ()
float	GetDisplacementShift ()
Static Public Methods
vtkTransformToGrid *	New ()
int	IsTypeOf (const char *type)
vtkTransformToGrid *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkTransformToGrid ()
	~vtkTransformToGrid ()
void	ExecuteInformation ()
void	ExecuteData (vtkDataObject *data)
void	UpdateShiftScale ()
unsigned long	GetMTime ()
Protected Attributes
vtkAbstractTransform *	Input
int	GridScalarType
int	GridExtent [6]
float	GridOrigin [3]
float	GridSpacing [3]
float	DisplacementScale
float	DisplacementShift
vtkTimeStamp	ShiftScaleTime

---

Detailed Description

create a grid for a vtkGridTransform.

Date:

2001/10/11 13:37:26

Revision:

1.7

Thanks:

Thanks to David G. Gobbi who developed this class.

vtkTransformToGrid takes any transform as input and produces a grid for use by a vtkGridTransform. This can be used, for example, to invert a grid transform, concatenate two grid transforms, or to convert a thin plate spline transform into a grid transform.

See also:

vtkGridTransform vtkThinPlateSplineTransform vtkAbstractTransform

Tests:

vtkTransformToGrid (Tests)

Definition at line 64 of file vtkTransformToGrid.h.

---

Constructor & Destructor Documentation

vtkTransformToGrid::vtkTransformToGrid (    )  [protected]

vtkTransformToGrid::~vtkTransformToGrid (    )  [protected]

---

Member Function Documentation

vtkTransformToGrid* vtkTransformToGrid::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkImageSource.

virtual const char* vtkTransformToGrid::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageSource.

int vtkTransformToGrid::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageSource.

virtual int vtkTransformToGrid::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageSource.

vtkTransformToGrid* vtkTransformToGrid::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageSource.

void vtkTransformToGrid::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkSource.

virtual void vtkTransformToGrid::SetInput (  vtkAbstractTransform *    )  [virtual]

Set/Get the transform which will be converted into a grid.

virtual vtkAbstractTransform* vtkTransformToGrid::GetInput (    )  [virtual]

Set/Get the transform which will be converted into a grid.

virtual void vtkTransformToGrid::SetGridExtent (  int   , int   , int   , int   , int   , int    )  [virtual]

Get/Set the extent of the grid.

virtual void vtkTransformToGrid::SetGridExtent (  int   [6] )  [virtual]

Get/Set the extent of the grid.

virtual int* vtkTransformToGrid::GetGridExtent (    )  [virtual]

Get/Set the extent of the grid.

virtual void vtkTransformToGrid::GetGridExtent (  int &   , int &   , int &   , int &   , int &   , int &    )  [virtual]

Get/Set the extent of the grid.

virtual void vtkTransformToGrid::GetGridExtent (  int   [6] )  [virtual]

Get/Set the extent of the grid.

virtual void vtkTransformToGrid::SetGridOrigin (  float   , float   , float    )  [virtual]

Get/Set the origin of the grid.

virtual void vtkTransformToGrid::SetGridOrigin (  float   [3] )  [virtual]

Get/Set the origin of the grid.

virtual float* vtkTransformToGrid::GetGridOrigin (    )  [virtual]

Get/Set the origin of the grid.

virtual void vtkTransformToGrid::GetGridOrigin (  float &   , float &   , float &    )  [virtual]

Get/Set the origin of the grid.

virtual void vtkTransformToGrid::GetGridOrigin (  float   [3] )  [virtual]

Get/Set the origin of the grid.

virtual void vtkTransformToGrid::SetGridSpacing (  float   , float   , float    )  [virtual]

Get/Set the spacing between samples in the grid.

virtual void vtkTransformToGrid::SetGridSpacing (  float   [3] )  [virtual]

Get/Set the spacing between samples in the grid.

virtual float* vtkTransformToGrid::GetGridSpacing (    )  [virtual]

Get/Set the spacing between samples in the grid.

virtual void vtkTransformToGrid::GetGridSpacing (  float &   , float &   , float &    )  [virtual]

Get/Set the spacing between samples in the grid.

virtual void vtkTransformToGrid::GetGridSpacing (  float   [3] )  [virtual]

Get/Set the spacing between samples in the grid.

virtual void vtkTransformToGrid::SetGridScalarType (  int    )  [virtual]

Get/Set the scalar type of the grid. The default is float.

virtual int vtkTransformToGrid::GetGridScalarType (    )  [virtual]

Get/Set the scalar type of the grid. The default is float.

void vtkTransformToGrid::SetGridScalarTypeToFloat (    )  [inline]

Get/Set the scalar type of the grid. The default is float. Definition at line 99 of file vtkTransformToGrid.h.

void vtkTransformToGrid::SetGridScalarTypeToShort (    )  [inline]

Get/Set the scalar type of the grid. The default is float. Definition at line 100 of file vtkTransformToGrid.h.

void vtkTransformToGrid::SetGridScalarTypeToUnsignedShort (    )  [inline]

Get/Set the scalar type of the grid. The default is float. Definition at line 101 of file vtkTransformToGrid.h.

void vtkTransformToGrid::SetGridScalarTypeToUnsignedChar (    )  [inline]

Get/Set the scalar type of the grid. The default is float. Definition at line 103 of file vtkTransformToGrid.h.

void vtkTransformToGrid::SetGridScalarTypeToChar (    )  [inline]

Get/Set the scalar type of the grid. The default is float. Definition at line 105 of file vtkTransformToGrid.h.

float vtkTransformToGrid::GetDisplacementScale (    )  [inline]

Get the scale and shift to convert integer grid elements into real values: dx = scale*di + shift. If the grid is of float type, then scale = 1 and shift = 0. Definition at line 113 of file vtkTransformToGrid.h.

float vtkTransformToGrid::GetDisplacementShift (    )  [inline]

Get the scale and shift to convert integer grid elements into real values: dx = scale*di + shift. If the grid is of float type, then scale = 1 and shift = 0. Definition at line 115 of file vtkTransformToGrid.h.

void vtkTransformToGrid::ExecuteInformation (    )  [protected, virtual]

Reimplemented from vtkSource.

void vtkTransformToGrid::ExecuteData (  vtkDataObject *    data )  [protected]

void vtkTransformToGrid::UpdateShiftScale (    )  [protected]

Internal method to calculate the shift and scale values which will provide maximum grid precision for a particular integer type.

unsigned long vtkTransformToGrid::GetMTime (    )  [protected, virtual]

Return this object's modified time. Reimplemented from vtkObject.

---

Member Data Documentation

vtkAbstractTransform* vtkTransformToGrid::Input [protected]

Definition at line 133 of file vtkTransformToGrid.h.

int vtkTransformToGrid::GridScalarType [protected]

Definition at line 135 of file vtkTransformToGrid.h.

int vtkTransformToGrid::GridExtent[6] [protected]

Definition at line 136 of file vtkTransformToGrid.h.

float vtkTransformToGrid::GridOrigin[3] [protected]

Definition at line 137 of file vtkTransformToGrid.h.

float vtkTransformToGrid::GridSpacing[3] [protected]

Definition at line 138 of file vtkTransformToGrid.h.

float vtkTransformToGrid::DisplacementScale [protected]

Definition at line 140 of file vtkTransformToGrid.h.

float vtkTransformToGrid::DisplacementShift [protected]

Definition at line 141 of file vtkTransformToGrid.h.

vtkTimeStamp vtkTransformToGrid::ShiftScaleTime [protected]

Definition at line 142 of file vtkTransformToGrid.h.

---

The documentation for this class was generated from the following file:

• Hybrid/vtkTransformToGrid.h

---
