vtkTriangleFilter Class Reference

create triangle polygons from input polygons and triangle strips. More...

#include <vtkTriangleFilter.h>

Inheritance diagram for vtkTriangleFilter:

Inheritance graph
[legend]

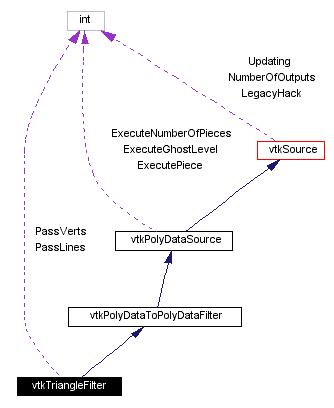

Collaboration diagram for vtkTriangleFilter:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void PassVertsOn ()
virtual void PassVertsOff ()
virtual void SetPassVerts (int)
virtual int GetPassVerts ()
virtual void PassLinesOn ()
virtual void PassLinesOff ()
virtual void SetPassLines (int)
virtual int GetPassLines ()

Static Public Methods

vtkTriangleFilter * New ()
int IsTypeOf (const char *type)
vtkTriangleFilter * SafeDownCast (vtkObject *o)

Protected Methods

 vtkTriangleFilter ()
 ~vtkTriangleFilter ()
void Execute ()

Protected Attributes

int PassVerts
int PassLines

Detailed Description

create triangle polygons from input polygons and triangle strips.

Date:
2001/10/11 13:37:20
Revision:
1.32

vtkTriangleFilter generates triangles from input polygons and triangle strips. The filter also will pass through vertices and lines, if requested.

Examples:
vtkTriangleFilter (Examples)
Tests:
vtkTriangleFilter (Tests)

Definition at line 62 of file vtkTriangleFilter.h.


Constructor & Destructor Documentation

vtkTriangleFilter::vtkTriangleFilter   [inline, protected]


Definition at line 84 of file vtkTriangleFilter.h.

vtkTriangleFilter::~vtkTriangleFilter   [inline, protected]


Definition at line 85 of file vtkTriangleFilter.h.


Member Function Documentation

vtkTriangleFilter* vtkTriangleFilter::New   [static]


Instantiate object with no start, end, or progress methods.

Reimplemented from vtkPolyDataSource.

virtual const char* vtkTriangleFilter::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataToPolyDataFilter.

int vtkTriangleFilter::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataToPolyDataFilter.

virtual int vtkTriangleFilter::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataToPolyDataFilter.

vtkTriangleFilter* vtkTriangleFilter::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataToPolyDataFilter.

void vtkTriangleFilter::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkSource.

virtual void vtkTriangleFilter::PassVertsOn   [virtual]


Turn on/off passing vertices through filter.

virtual void vtkTriangleFilter::PassVertsOff   [virtual]


Turn on/off passing vertices through filter.

virtual void vtkTriangleFilter::SetPassVerts int    [virtual]


Turn on/off passing vertices through filter.

virtual int vtkTriangleFilter::GetPassVerts   [virtual]


Turn on/off passing vertices through filter.

virtual void vtkTriangleFilter::PassLinesOn   [virtual]


Turn on/off passing lines through filter.

virtual void vtkTriangleFilter::PassLinesOff   [virtual]


Turn on/off passing lines through filter.

virtual void vtkTriangleFilter::SetPassLines int    [virtual]


Turn on/off passing lines through filter.

virtual int vtkTriangleFilter::GetPassLines   [virtual]


Turn on/off passing lines through filter.

void vtkTriangleFilter::Execute   [protected, virtual]


This method is the old style execute method

Reimplemented from vtkSource.


Member Data Documentation

int vtkTriangleFilter::PassVerts [protected]


Definition at line 90 of file vtkTriangleFilter.h.

int vtkTriangleFilter::PassLines [protected]


Definition at line 91 of file vtkTriangleFilter.h.


The documentation for this class was generated from the following file:
