vtkUGFacetReader Class Reference

read EDS Unigraphics facet files. More...

#include <vtkUGFacetReader.h>

Inheritance diagram for vtkUGFacetReader:

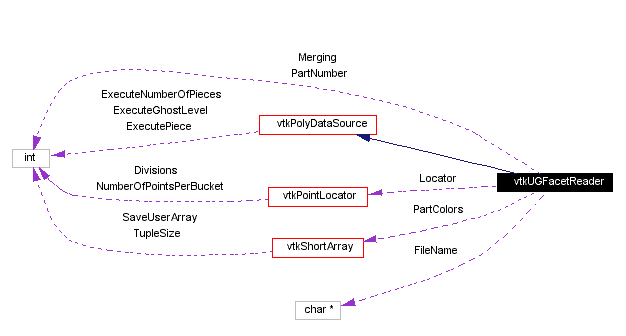

[legend]Collaboration diagram for vtkUGFacetReader:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
unsigned long	GetMTime ()
int	GetNumberOfParts ()
short	GetPartColorIndex (int partId)
void	CreateDefaultLocator ()
virtual void	SetFileName (const char *)
virtual char *	GetFileName ()
virtual void	SetPartNumber (int)
virtual int	GetPartNumber ()
virtual void	SetMerging (int)
virtual int	GetMerging ()
virtual void	MergingOn ()
virtual void	MergingOff ()
void	SetLocator (vtkPointLocator *locator)
virtual vtkPointLocator *	GetLocator ()
Static Public Methods
int	IsTypeOf (const char *type)
vtkUGFacetReader *	SafeDownCast (vtkObject *o)
vtkUGFacetReader *	New ()
Protected Methods
	vtkUGFacetReader ()
	~vtkUGFacetReader ()
void	Execute ()
Protected Attributes
char *	FileName
vtkShortArray *	PartColors
int	PartNumber
int	Merging
vtkPointLocator *	Locator

---

Detailed Description

read EDS Unigraphics facet files.

Date:

2001/10/11 13:37:35

Revision:

1.35

vtkUGFacetReader is a source object that reads Unigraphics facet files. Unigraphics is a solid modeling system; facet files are the polygonal plot files it uses to create 3D plots.

Tests:

vtkUGFacetReader (Tests)

Definition at line 61 of file vtkUGFacetReader.h.

---

Constructor & Destructor Documentation

vtkUGFacetReader::vtkUGFacetReader (    )  [protected]

vtkUGFacetReader::~vtkUGFacetReader (    )  [protected]

---

Member Function Documentation

virtual const char* vtkUGFacetReader::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataSource.

int vtkUGFacetReader::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataSource.

virtual int vtkUGFacetReader::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataSource.

vtkUGFacetReader* vtkUGFacetReader::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataSource.

void vtkUGFacetReader::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkSource.

vtkUGFacetReader* vtkUGFacetReader::New (    )  [static]

Construct object to extract all parts, and with point merging turned on. Reimplemented from vtkPolyDataSource.

unsigned long vtkUGFacetReader::GetMTime (    )  [virtual]

Overload standard modified time function. If locator is modified, then this object is modified as well. Reimplemented from vtkObject.

virtual void vtkUGFacetReader::SetFileName (  const char *    )  [virtual]

Specify Unigraphics file name.

virtual char* vtkUGFacetReader::GetFileName (    )  [virtual]

Specify Unigraphics file name.

int vtkUGFacetReader::GetNumberOfParts (    )

Special methods for interrogating the data file.

short vtkUGFacetReader::GetPartColorIndex (  int    partId )

Retrieve color index for the parts in the file.

virtual void vtkUGFacetReader::SetPartNumber (  int    )  [virtual]

Specify the desired part to extract. The part number must range between [0,NumberOfParts-1]. If the value is =(-1), then all parts will be extracted. If the value is <(-1), then no parts will be extracted but the part colors will be updated.

virtual int vtkUGFacetReader::GetPartNumber (    )  [virtual]

Specify the desired part to extract. The part number must range between [0,NumberOfParts-1]. If the value is =(-1), then all parts will be extracted. If the value is <(-1), then no parts will be extracted but the part colors will be updated.

virtual void vtkUGFacetReader::SetMerging (  int    )  [virtual]

Turn on/off merging of points/triangles.

virtual int vtkUGFacetReader::GetMerging (    )  [virtual]

Turn on/off merging of points/triangles.

virtual void vtkUGFacetReader::MergingOn (    )  [virtual]

Turn on/off merging of points/triangles.

virtual void vtkUGFacetReader::MergingOff (    )  [virtual]

Turn on/off merging of points/triangles.

void vtkUGFacetReader::SetLocator (  vtkPointLocator *    locator )

Specify a spatial locator for merging points. By default an instance of vtkMergePoints is used.

virtual vtkPointLocator* vtkUGFacetReader::GetLocator (    )  [virtual]

Specify a spatial locator for merging points. By default an instance of vtkMergePoints is used.

void vtkUGFacetReader::CreateDefaultLocator (  void    )

Create default locator. Used to create one when none is specified.

void vtkUGFacetReader::Execute (    )  [protected, virtual]

This method is the old style execute method Reimplemented from vtkSource.

---

Member Data Documentation

char* vtkUGFacetReader::FileName [protected]

Definition at line 119 of file vtkUGFacetReader.h.

vtkShortArray* vtkUGFacetReader::PartColors [protected]

Definition at line 120 of file vtkUGFacetReader.h.

int vtkUGFacetReader::PartNumber [protected]

Definition at line 121 of file vtkUGFacetReader.h.

int vtkUGFacetReader::Merging [protected]

Definition at line 122 of file vtkUGFacetReader.h.

vtkPointLocator* vtkUGFacetReader::Locator [protected]

Definition at line 123 of file vtkUGFacetReader.h.

---

The documentation for this class was generated from the following file:

• IO/vtkUGFacetReader.h

---
