vtkWarpLens Class Reference

deform geometry by applying lens distortion. More...

#include <vtkWarpLens.h>

Inheritance diagram for vtkWarpLens:

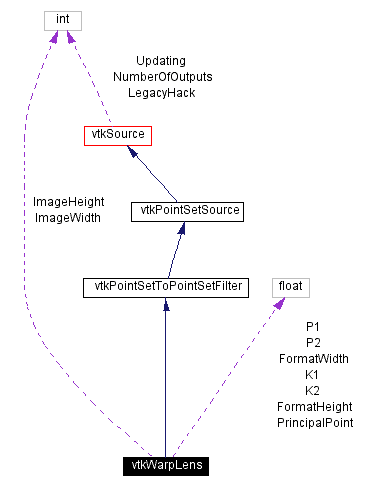

[legend]Collaboration diagram for vtkWarpLens:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	SetKappa (float kappa)
float	GetKappa ()
void	SetCenter (float centerX, float centerY)
float *	GetCenter ()
virtual void	SetPrincipalPoint (float, float)
void	SetPrincipalPoint (float[2])
virtual float *	GetPrincipalPoint ()
virtual void	GetPrincipalPoint (float data[2])
virtual void	SetK1 (float)
virtual float	GetK1 ()
virtual void	SetK2 (float)
virtual float	GetK2 ()
virtual void	SetP1 (float)
virtual float	GetP1 ()
virtual void	SetP2 (float)
virtual float	GetP2 ()
virtual void	SetFormatWidth (float)
virtual float	GetFormatWidth ()
virtual void	SetFormatHeight (float)
virtual float	GetFormatHeight ()
virtual void	SetImageWidth (int)
virtual int	GetImageWidth ()
virtual void	SetImageHeight (int)
virtual int	GetImageHeight ()
Static Public Methods
vtkWarpLens *	New ()
int	IsTypeOf (const char *type)
vtkWarpLens *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkWarpLens ()
	~vtkWarpLens ()
void	Execute ()
Protected Attributes
float	PrincipalPoint [2]
float	K1
float	K2
float	P1
float	P2
float	FormatWidth
float	FormatHeight
int	ImageWidth
int	ImageHeight

---

Detailed Description

deform geometry by applying lens distortion.

Date:

2001/11/13 14:13:51

Revision:

1.21

vtkWarpLens is a filter that modifies point coordinates by moving in accord with a lens distortion model.

Tests:

vtkWarpLens (Tests)

Definition at line 58 of file vtkWarpLens.h.

---

Constructor & Destructor Documentation

vtkWarpLens::vtkWarpLens (    )  [protected]

vtkWarpLens::~vtkWarpLens (    )  [inline, protected]

Definition at line 120 of file vtkWarpLens.h.

---

Member Function Documentation

vtkWarpLens* vtkWarpLens::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkPointSetSource.

virtual const char* vtkWarpLens::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPointSetToPointSetFilter.

int vtkWarpLens::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPointSetToPointSetFilter.

virtual int vtkWarpLens::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPointSetToPointSetFilter.

vtkWarpLens* vtkWarpLens::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPointSetToPointSetFilter.

void vtkWarpLens::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkSource.

void vtkWarpLens::SetKappa (  float    kappa )

Specify second order symmetric radial lens distortion parameter. This is obsoleted by newer instance variables.

float vtkWarpLens::GetKappa (    )

Specify second order symmetric radial lens distortion parameter. This is obsoleted by newer instance variables.

void vtkWarpLens::SetCenter (  float    centerX, float    centerY )

Specify the center of radial distortion in pixels. This is obsoleted by newer instance variables.

float* vtkWarpLens::GetCenter (    )

Specify the center of radial distortion in pixels. This is obsoleted by newer instance variables.

virtual void vtkWarpLens::SetPrincipalPoint (  float   , float    )  [virtual]

Specify the calibrated principal point of the camera/lens

void vtkWarpLens::SetPrincipalPoint (  float   [2] )

Specify the calibrated principal point of the camera/lens

virtual float* vtkWarpLens::GetPrincipalPoint (    )  [virtual]

Specify the calibrated principal point of the camera/lens

virtual void vtkWarpLens::GetPrincipalPoint (  float    data[2] )  [virtual]

Specify the calibrated principal point of the camera/lens

virtual void vtkWarpLens::SetK1 (  float    )  [virtual]

Specify the symmetric radial distortion parameters for the lens

virtual float vtkWarpLens::GetK1 (    )  [virtual]

Specify the symmetric radial distortion parameters for the lens

virtual void vtkWarpLens::SetK2 (  float    )  [virtual]

Specify the symmetric radial distortion parameters for the lens

virtual float vtkWarpLens::GetK2 (    )  [virtual]

Specify the symmetric radial distortion parameters for the lens

virtual void vtkWarpLens::SetP1 (  float    )  [virtual]

Specify the decentering distortion parameters for the lens

virtual float vtkWarpLens::GetP1 (    )  [virtual]

Specify the decentering distortion parameters for the lens

virtual void vtkWarpLens::SetP2 (  float    )  [virtual]

Specify the decentering distortion parameters for the lens

virtual float vtkWarpLens::GetP2 (    )  [virtual]

Specify the decentering distortion parameters for the lens

virtual void vtkWarpLens::SetFormatWidth (  float    )  [virtual]

Specify the imager format width / height in mm

virtual float vtkWarpLens::GetFormatWidth (    )  [virtual]

Specify the imager format width / height in mm

virtual void vtkWarpLens::SetFormatHeight (  float    )  [virtual]

Specify the imager format width / height in mm

virtual float vtkWarpLens::GetFormatHeight (    )  [virtual]

Specify the imager format width / height in mm

virtual void vtkWarpLens::SetImageWidth (  int    )  [virtual]

Specify the image width / height in pixels

virtual int vtkWarpLens::GetImageWidth (    )  [virtual]

Specify the image width / height in pixels

virtual void vtkWarpLens::SetImageHeight (  int    )  [virtual]

Specify the image width / height in pixels

virtual int vtkWarpLens::GetImageHeight (    )  [virtual]

Specify the image width / height in pixels

void vtkWarpLens::Execute (    )  [protected, virtual]

This method is the old style execute method Reimplemented from vtkSource.

---

Member Data Documentation

float vtkWarpLens::PrincipalPoint[2] [protected]

Definition at line 124 of file vtkWarpLens.h.

float vtkWarpLens::K1 [protected]

Definition at line 125 of file vtkWarpLens.h.

float vtkWarpLens::K2 [protected]

Definition at line 126 of file vtkWarpLens.h.

float vtkWarpLens::P1 [protected]

Definition at line 127 of file vtkWarpLens.h.

float vtkWarpLens::P2 [protected]

Definition at line 128 of file vtkWarpLens.h.

float vtkWarpLens::FormatWidth [protected]

Definition at line 129 of file vtkWarpLens.h.

float vtkWarpLens::FormatHeight [protected]

Definition at line 130 of file vtkWarpLens.h.

int vtkWarpLens::ImageWidth [protected]

Definition at line 131 of file vtkWarpLens.h.

int vtkWarpLens::ImageHeight [protected]

Definition at line 132 of file vtkWarpLens.h.

---

The documentation for this class was generated from the following file:

• Graphics/vtkWarpLens.h

---
