vtkWin32TextMapper Class Reference

2D Text annotation support for windows. More...

#include <vtkWin32TextMapper.h>

Inheritance diagram for vtkWin32TextMapper:

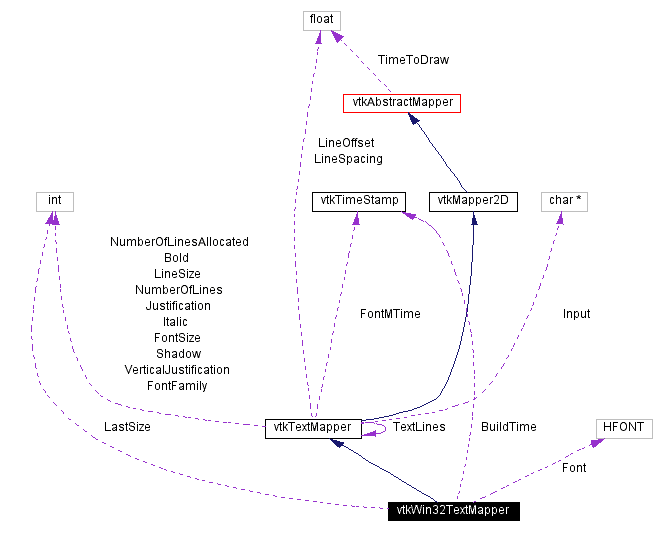

[legend]Collaboration diagram for vtkWin32TextMapper:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	GetSize (vtkViewport *viewport, int size[2])
Static Public Methods
int	IsTypeOf (const char *type)
vtkWin32TextMapper *	SafeDownCast (vtkObject *o)
vtkWin32TextMapper *	New ()
Protected Methods
	vtkWin32TextMapper ()
	~vtkWin32TextMapper ()
Protected Attributes
vtkTimeStamp	BuildTime
int	LastSize [2]
HFONT	Font

---

Detailed Description

2D Text annotation support for windows.

Date:

2001/10/11 13:38:34

Revision:

1.22

Thanks:

Thanks to Matt Turek who developed this class.

vtkWin32TextMapper provides 2D text annotation support for vtk under Xwindows. Normally the user should use vtktextMapper which in turn will use this class.

See also:

vtkTextMapper

Definition at line 60 of file vtkWin32TextMapper.h.

---

Constructor & Destructor Documentation

vtkWin32TextMapper::vtkWin32TextMapper (    )  [protected]

vtkWin32TextMapper::~vtkWin32TextMapper (    )  [protected]

---

Member Function Documentation

virtual const char* vtkWin32TextMapper::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkTextMapper. Reimplemented in vtkWin32OpenGLTextMapper.

int vtkWin32TextMapper::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkTextMapper. Reimplemented in vtkWin32OpenGLTextMapper.

virtual int vtkWin32TextMapper::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkTextMapper. Reimplemented in vtkWin32OpenGLTextMapper.

vtkWin32TextMapper* vtkWin32TextMapper::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkTextMapper. Reimplemented in vtkWin32OpenGLTextMapper.

vtkWin32TextMapper* vtkWin32TextMapper::New (    )  [static]

Creates a new text mapper with Font size 12, bold off, italic off, and Arial font. Reimplemented from vtkTextMapper. Reimplemented in vtkWin32OpenGLTextMapper.

void vtkWin32TextMapper::GetSize (  vtkViewport *    viewport, int    size[2] )  [virtual]

What is the size of the rectangle required to draw this mapper ? Reimplemented from vtkTextMapper.

---

Member Data Documentation

vtkTimeStamp vtkWin32TextMapper::BuildTime [protected]

Definition at line 73 of file vtkWin32TextMapper.h.

int vtkWin32TextMapper::LastSize[2] [protected]

Definition at line 74 of file vtkWin32TextMapper.h.

HFONT vtkWin32TextMapper::Font [protected]

Definition at line 75 of file vtkWin32TextMapper.h.

---

The documentation for this class was generated from the following file:

• Rendering/vtkWin32TextMapper.h

---
