Iterates through adjacent vertices in a graph. More...

#include <vtkAdjacentVertexIterator.h>

Inheritance diagram for vtkAdjacentVertexIterator:

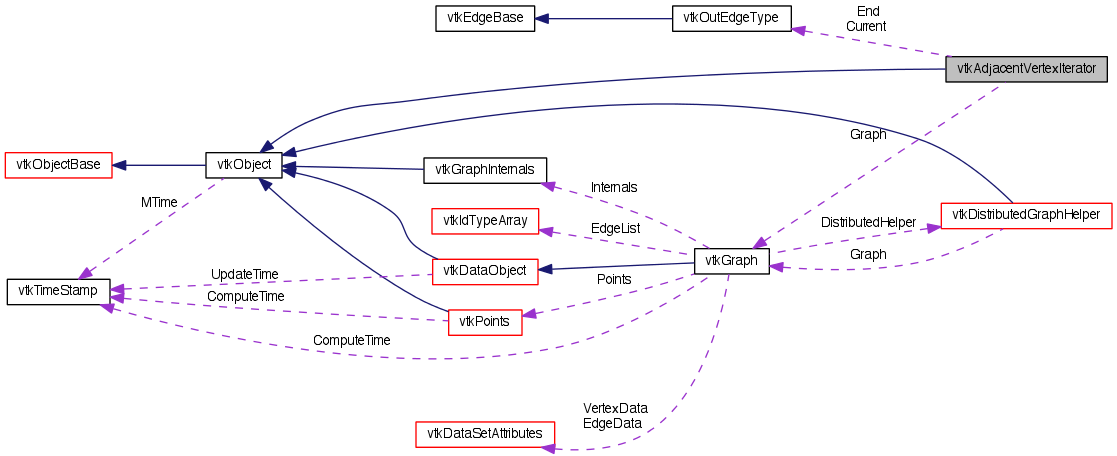

Collaboration diagram for vtkAdjacentVertexIterator:

Public Types
typedef vtkObject	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	Initialize (vtkGraph *g, vtkIdType v)

virtual vtkGraph *	GetGraph ()
virtual vtkIdType	GetVertex ()

vtkIdType	Next ()

bool	HasNext ()
Static Public Member Functions
static vtkAdjacentVertexIterator *	New ()
static int	IsTypeOf (const char *type)
static vtkAdjacentVertexIterator *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkAdjacentVertexIterator ()
	~vtkAdjacentVertexIterator ()
virtual void	SetGraph (vtkGraph *graph)
Protected Attributes
vtkGraph *	Graph
const vtkOutEdgeType *	Current
const vtkOutEdgeType *	End
vtkIdType	Vertex

Detailed Description

Iterates through adjacent vertices in a graph.

vtkAdjacentVertexIterator iterates through all vertices adjacent to a vertex, i.e. the vertices which may be reached by traversing an out edge of the source vertex. Use graph->GetAdjacentVertices(v, it) to initialize the iterator.

Tests:: vtkAdjacentVertexIterator (Tests)

Definition at line 45 of file vtkAdjacentVertexIterator.h.

Member Typedef Documentation

typedef vtkObject vtkAdjacentVertexIterator::Superclass

Reimplemented from vtkObject.

Definition at line 49 of file vtkAdjacentVertexIterator.h.

Constructor & Destructor Documentation

vtkAdjacentVertexIterator::vtkAdjacentVertexIterator ( ) [protected]

vtkAdjacentVertexIterator::~vtkAdjacentVertexIterator ( ) [protected]

Member Function Documentation

static vtkAdjacentVertexIterator* vtkAdjacentVertexIterator::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkAdjacentVertexIterator::GetClassName ( ) [virtual]

Reimplemented from vtkObject.

static int vtkAdjacentVertexIterator::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkAdjacentVertexIterator::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkAdjacentVertexIterator* vtkAdjacentVertexIterator::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkObject.

void vtkAdjacentVertexIterator::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.
