Filters that operate on pixel neighborhoods. More...

#include <vtkImageSpatialAlgorithm.h>

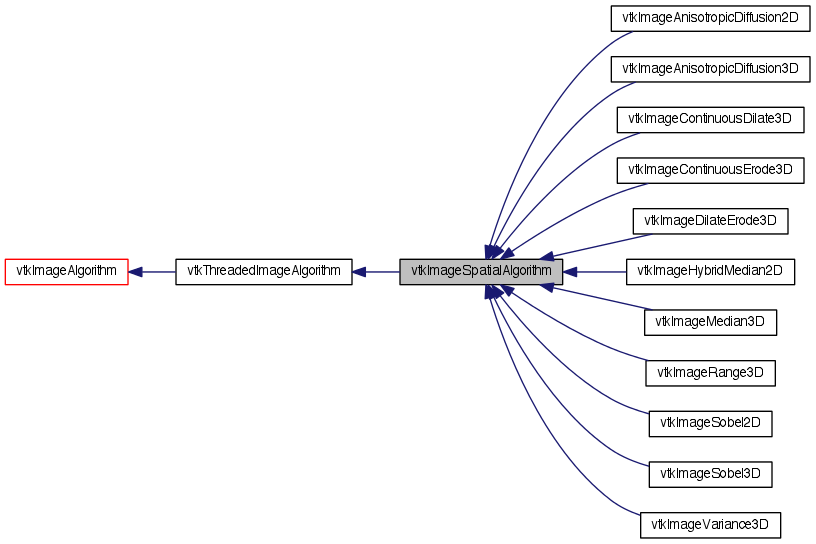

Inheritance diagram for vtkImageSpatialAlgorithm:

Collaboration diagram for vtkImageSpatialAlgorithm:

Public Types
typedef vtkThreadedImageAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)

virtual int *	GetKernelSize ()
virtual void	GetKernelSize (int &, int &, int &)
virtual void	GetKernelSize (int[3])

virtual int *	GetKernelMiddle ()
virtual void	GetKernelMiddle (int &, int &, int &)
virtual void	GetKernelMiddle (int[3])
Static Public Member Functions
static vtkImageSpatialAlgorithm *	New ()
static int	IsTypeOf (const char *type)
static vtkImageSpatialAlgorithm *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkImageSpatialAlgorithm ()
	~vtkImageSpatialAlgorithm ()
virtual int	RequestInformation (vtkInformation , vtkInformationVector , vtkInformationVector )
void	ComputeOutputWholeExtent (int extent[6], int handleBoundaries)
virtual int	RequestUpdateExtent (vtkInformation , vtkInformationVector , vtkInformationVector )
void	InternalRequestUpdateExtent (int extent, int inExtent, int *wholeExtent)
Protected Attributes
int	KernelSize [3]
int	KernelMiddle [3]
int	HandleBoundaries

Detailed Description

Filters that operate on pixel neighborhoods.

vtkImageSpatialAlgorithm is a super class for filters that operate on an input neighborhood for each output pixel. It handles even sized neighborhoods, but their can be a half pixel shift associated with processing. This superclass has some logic for handling boundaries. It can split regions into boundary and non-boundary pieces and call different execute methods.

Definition at line 32 of file vtkImageSpatialAlgorithm.h.

Member Typedef Documentation

typedef vtkThreadedImageAlgorithm vtkImageSpatialAlgorithm::Superclass

Reimplemented from vtkThreadedImageAlgorithm.

Reimplemented in vtkImageAnisotropicDiffusion3D, vtkImageAnisotropicDiffusion2D, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageVariance3D, vtkImageDilateErode3D, vtkImageHybridMedian2D, vtkImageMedian3D, vtkImageRange3D, vtkImageSobel3D, and vtkImageSobel2D.

Definition at line 36 of file vtkImageSpatialAlgorithm.h.

Constructor & Destructor Documentation

vtkImageSpatialAlgorithm::vtkImageSpatialAlgorithm ( ) [protected]

vtkImageSpatialAlgorithm::~vtkImageSpatialAlgorithm ( ) [inline, protected]

Definition at line 51 of file vtkImageSpatialAlgorithm.h.

Member Function Documentation

static vtkImageSpatialAlgorithm* vtkImageSpatialAlgorithm::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkImageAnisotropicDiffusion3D, vtkImageAnisotropicDiffusion2D, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageVariance3D, vtkImageDilateErode3D, vtkImageHybridMedian2D, vtkImageMedian3D, vtkImageRange3D, vtkImageSobel3D, and vtkImageSobel2D.

virtual const char* vtkImageSpatialAlgorithm::GetClassName ( ) [virtual]

Reimplemented from vtkThreadedImageAlgorithm.

Reimplemented in vtkImageAnisotropicDiffusion3D, vtkImageAnisotropicDiffusion2D, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageVariance3D, vtkImageDilateErode3D, vtkImageHybridMedian2D, vtkImageMedian3D, vtkImageRange3D, vtkImageSobel3D, and vtkImageSobel2D.

static int vtkImageSpatialAlgorithm::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

Reimplemented in vtkImageAnisotropicDiffusion3D, vtkImageAnisotropicDiffusion2D, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageVariance3D, vtkImageDilateErode3D, vtkImageHybridMedian2D, vtkImageMedian3D, vtkImageRange3D, vtkImageSobel3D, and vtkImageSobel2D.

virtual int vtkImageSpatialAlgorithm::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

Reimplemented in vtkImageAnisotropicDiffusion3D, vtkImageAnisotropicDiffusion2D, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageVariance3D, vtkImageDilateErode3D, vtkImageHybridMedian2D, vtkImageMedian3D, vtkImageRange3D, vtkImageSobel3D, and vtkImageSobel2D.

static vtkImageSpatialAlgorithm* vtkImageSpatialAlgorithm::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkThreadedImageAlgorithm.

Reimplemented in vtkImageAnisotropicDiffusion3D, vtkImageAnisotropicDiffusion2D, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageVariance3D, vtkImageDilateErode3D, vtkImageHybridMedian2D, vtkImageMedian3D, vtkImageRange3D, vtkImageSobel3D, and vtkImageSobel2D.

void vtkImageSpatialAlgorithm::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkThreadedImageAlgorithm.

Reimplemented in vtkImageAnisotropicDiffusion3D, vtkImageAnisotropicDiffusion2D, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageVariance3D, vtkImageDilateErode3D, vtkImageMedian3D, vtkImageRange3D, vtkImageSobel3D, and vtkImageSobel2D.
