vtkOpenGLActor Class Reference

OpenGL actor. More...

#include <vtkOpenGLActor.h>

Inheritance diagram for vtkOpenGLActor:

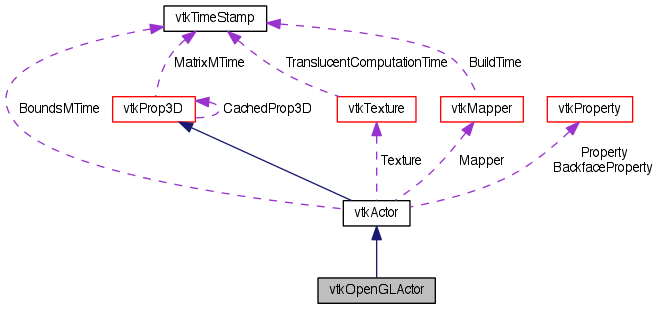

Collaboration diagram for vtkOpenGLActor:

List of all members.

Public Types
typedef vtkActor	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	PrintSelf (ostream &os, vtkIndent indent)
void	Render (vtkRenderer *ren, vtkMapper *mapper)
Static Public Member Functions
static vtkOpenGLActor *	New ()
static int	IsTypeOf (const char *type)
static vtkOpenGLActor *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkOpenGLActor ()
	~vtkOpenGLActor ()

---

Detailed Description

OpenGL actor.

vtkOpenGLActor is a concrete implementation of the abstract class vtkActor. vtkOpenGLActor interfaces to the OpenGL rendering library.

Definition at line 29 of file vtkOpenGLActor.h.

---

Member Typedef Documentation

typedef vtkActor vtkOpenGLActor::Superclass

Reimplemented from vtkActor.

Definition at line 35 of file vtkOpenGLActor.h.

---

Constructor & Destructor Documentation

vtkOpenGLActor::vtkOpenGLActor

(

)

[inline, protected]

Definition at line 42 of file vtkOpenGLActor.h.

vtkOpenGLActor::~vtkOpenGLActor

(

)

[inline, protected]

Definition at line 43 of file vtkOpenGLActor.h.

---

Member Function Documentation

static vtkOpenGLActor* vtkOpenGLActor::New

(

)

[static]

Creates an actor with the following defaults: origin(0,0,0) position=(0,0,0) scale=(1,1,1) visibility=1 pickable=1 dragable=1 orientation=(0,0,0). No user defined matrix and no texture map.

Reimplemented from vtkActor.

virtual const char* vtkOpenGLActor::GetClassName

(

)

[virtual]

Reimplemented from vtkActor.

static int vtkOpenGLActor::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkActor.

virtual int vtkOpenGLActor::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkActor.

static vtkOpenGLActor* vtkOpenGLActor::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkActor.

virtual void vtkOpenGLActor::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkActor.

void vtkOpenGLActor::Render	(	vtkRenderer *	ren,
		vtkMapper *	mapper
	)		[virtual]

Actual actor render method.

Reimplemented from vtkActor.

---

The documentation for this class was generated from the following file:

• dox/Rendering/vtkOpenGLActor.h
