Class for drawing an XY plot given two columns from a vtkTable. More...

#include <vtkPlotBar.h>

Inheritance diagram for vtkPlotBar:

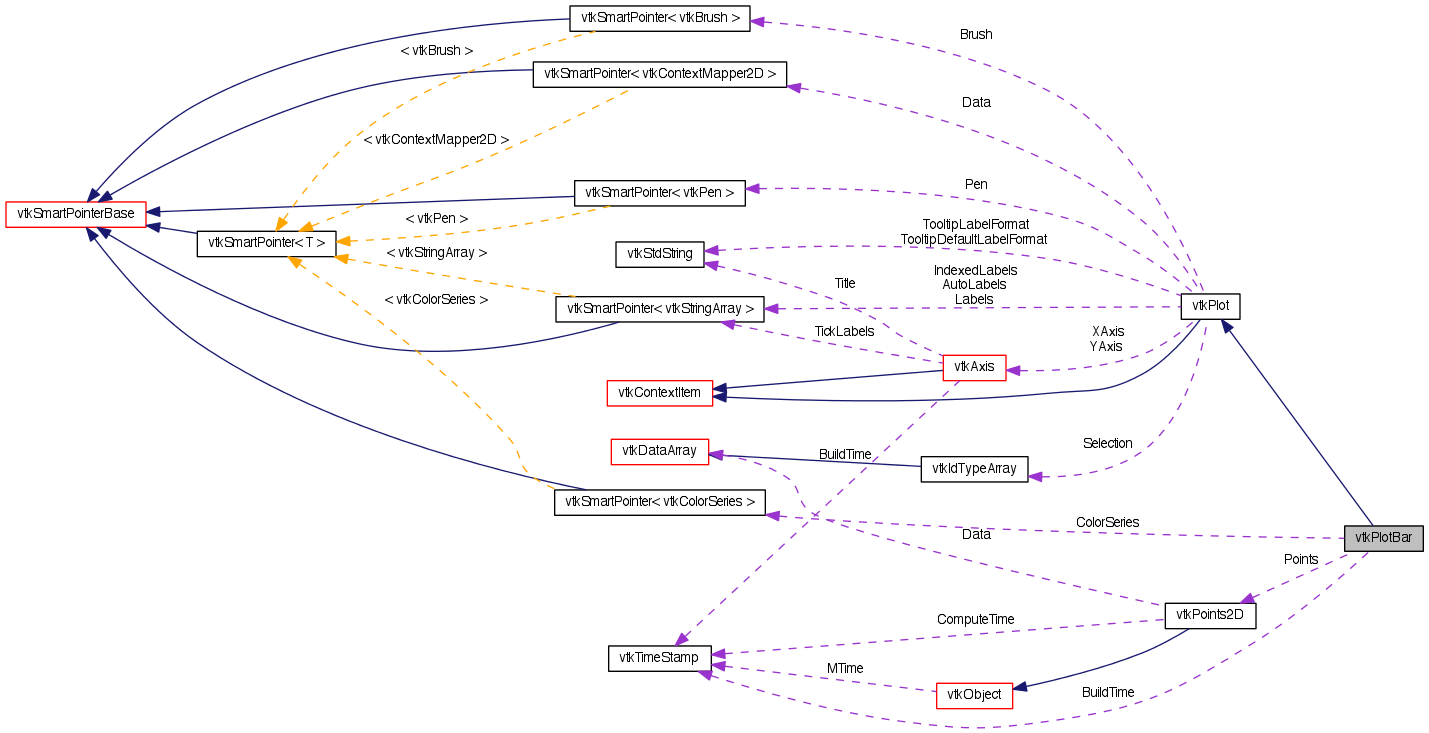

Collaboration diagram for vtkPlotBar:

Public Types
typedef vtkPlot	Superclass

enum	{ VERTICAL = 0, HORIZONTAL }
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	PrintSelf (ostream &os, vtkIndent indent)
virtual bool	Paint (vtkContext2D *painter)
virtual void	GetBounds (double bounds[4])
virtual void	SetInputArray (int index, const vtkStdString &name)
void	SetColorSeries (vtkColorSeries *colorSeries)
vtkColorSeries *	GetColorSeries ()
virtual vtkStringArray *	GetLabels ()
virtual void	SetGroupName (const vtkStdString &name)
virtual vtkStdString	GetGroupName ()
virtual bool	SelectPoints (const vtkVector2f &min, const vtkVector2f &max)

virtual bool	PaintLegend (vtkContext2D *painter, const vtkRectf &rect, int legendIndex)

virtual void	SetColor (unsigned char r, unsigned char g, unsigned char b, unsigned char a)
virtual void	SetColor (double r, double g, double b)
virtual void	GetColor (double rgb[3])

virtual void	SetWidth (float)

virtual float	GetWidth ()

virtual void	SetOffset (float)
virtual float	GetOffset ()

virtual void	SetOrientation (int orientation)
virtual int	GetOrientation ()

virtual vtkStdString	GetTooltipLabel (const vtkVector2f &plotPos, vtkIdType seriesIndex, vtkIdType segmentIndex)

virtual vtkIdType	GetNearestPoint (const vtkVector2f &point, const vtkVector2f &tolerance, vtkVector2f *location)

virtual vtkIdType	GetNearestPoint (const vtkVector2f &point, const vtkVector2f &, vtkVector2f location, vtkIdType segmentIndex)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkPlotBar *	SafeDownCast (vtkObject *o)
static vtkPlotBar *	New ()
Protected Member Functions
	vtkPlotBar ()
	~vtkPlotBar ()
bool	UpdateTableCache (vtkTable *table)
Protected Attributes
vtkPoints2D *	Points
float	Width
float	Offset
int	Orientation
vtkTimeStamp	BuildTime
vtkSmartPointer< vtkColorSeries >	ColorSeries

Detailed Description

Class for drawing an XY plot given two columns from a vtkTable.

Tests:: vtkPlotBar (Tests)

Definition at line 41 of file vtkPlotBar.h.

Member Typedef Documentation

typedef vtkPlot vtkPlotBar::Superclass

Reimplemented from vtkPlot.

Definition at line 44 of file vtkPlotBar.h.

Member Enumeration Documentation

anonymous enum

Enum of bar chart oritentation types

Enumerator:

VERTICAL
HORIZONTAL

Definition at line 49 of file vtkPlotBar.h.

Constructor & Destructor Documentation

vtkPlotBar::vtkPlotBar ( ) [protected]

vtkPlotBar::~vtkPlotBar ( ) [protected]

Member Function Documentation

virtual const char* vtkPlotBar::GetClassName ( ) [virtual]

Reimplemented from vtkPlot.

static int vtkPlotBar::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPlot.

virtual int vtkPlotBar::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPlot.

static vtkPlotBar* vtkPlotBar::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkPlot.

virtual void vtkPlotBar::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPlot.

static vtkPlotBar* vtkPlotBar::New ( ) [static]

Creates a 2D Chart object.

Reimplemented from vtkObject.

virtual bool vtkPlotBar::Paint ( vtkContext2D * painter ) [virtual]

Paint event for the XY plot, called whenever the chart needs to be drawn

Reimplemented from vtkAbstractContextItem.

virtual bool vtkPlotBar::PaintLegend	(	vtkContext2D *	painter,
		const vtkRectf &	rect,
		int	legendIndex
	)		`[virtual]`

Paint legend event for the XY plot, called whenever the legend needs the plot items symbol/mark/line drawn. A rect is supplied with the lower left corner of the rect (elements 0 and 1) and with width x height (elements 2 and 3). The plot can choose how to fill the space supplied.

Reimplemented from vtkPlot.

virtual void vtkPlotBar::SetColor	(	unsigned char	r,
		unsigned char	g,
		unsigned char	b,
		unsigned char	a
	)		`[virtual]`

Set the plot color

Reimplemented from vtkPlot.

virtual void vtkPlotBar::SetColor	(	double	r,
		double	g,
		double	b
	)		`[virtual]`

Set the plot color

Reimplemented from vtkPlot.

virtual void vtkPlotBar::GetColor ( double rgb[3] ) [virtual]

Set the plot color

Reimplemented from vtkPlot.

virtual void vtkPlotBar::SetWidth ( float ) [virtual]

Set the width of the line.

Reimplemented from vtkPlot.

virtual float vtkPlotBar::GetWidth ( ) [virtual]

Get the width of the line.

Reimplemented from vtkPlot.

virtual void vtkPlotBar::SetOffset ( float ) [virtual]

Set/get the horizontal offset of the bars. Positive values move the bars leftward. For HORIZONTAL orientation, offsets bars vertically, with a positive value moving bars downward.

virtual float vtkPlotBar::GetOffset ( ) [virtual]

Set/get the horizontal offset of the bars. Positive values move the bars leftward. For HORIZONTAL orientation, offsets bars vertically, with a positive value moving bars downward.

virtual void vtkPlotBar::SetOrientation ( int orientation ) [virtual]

Set/get the orientation of the bars. Valid orientations are VERTICAL (default) and HORIZONTAL.

virtual int vtkPlotBar::GetOrientation ( ) [virtual]

Set/get the orientation of the bars. Valid orientations are VERTICAL (default) and HORIZONTAL.

virtual void vtkPlotBar::GetBounds ( double bounds[4] ) [virtual]

Get the bounds for this mapper as (Xmin,Xmax,Ymin,Ymax).

Reimplemented from vtkPlot.

virtual void vtkPlotBar::SetInputArray	(	int	index,
		const vtkStdString &	name
	)		`[virtual]`

When used to set additional arrays, stacked bars are created.

Reimplemented from vtkPlot.

void vtkPlotBar::SetColorSeries ( vtkColorSeries * colorSeries )

Set the color series to use if this becomes a stacked bar plot.

vtkColorSeries* vtkPlotBar::GetColorSeries ( )

Get the color series used if when this is a stacked bar plot.

virtual vtkStringArray* vtkPlotBar::GetLabels ( ) [virtual]

Get the plot labels.

Reimplemented from vtkPlot.

virtual void vtkPlotBar::SetGroupName ( const vtkStdString & name ) [virtual]

Set the group name of the bar chart - can be displayed on the X axis.

virtual vtkStdString vtkPlotBar::GetGroupName ( ) [virtual]

Get the group name of the bar char - can be displayed on the X axis.

virtual vtkStdString vtkPlotBar::GetTooltipLabel	(	const vtkVector2f &	plotPos,
		vtkIdType	seriesIndex,
		vtkIdType	segmentIndex
	)		`[virtual]`

Generate and return the tooltip label string for this plot The segmentIndex is implemented here.

Reimplemented from vtkPlot.

virtual bool vtkPlotBar::SelectPoints	(	const vtkVector2f &	min,
		const vtkVector2f &	max
	)		`[virtual]`

Select all points in the specified rectangle.

Reimplemented from vtkPlot.

virtual vtkIdType vtkPlotBar::GetNearestPoint	(	const vtkVector2f &	point,
		const vtkVector2f &	tolerance,
		vtkVector2f *	location
	)		`[virtual]`

Function to query a plot for the nearest point to the specified coordinate. Returns the index of the data series with which the point is associated or -1.

Reimplemented from vtkPlot.

virtual vtkIdType vtkPlotBar::GetNearestPoint	(	const vtkVector2f &	point,
		const vtkVector2f &	,
		vtkVector2f *	location,
		vtkIdType *	segmentIndex
	)		`[virtual]`

Function to query a plot for the nearest point to the specified coordinate. Returns the index of the data series with which the point is associated or -1. If a vtkIdType* is passed, its referent will be set to index of the bar segment with which a point is associated, or -1.

bool vtkPlotBar::UpdateTableCache ( vtkTable * table ) [protected]

Update the table cache.
