vtkPolyDataSource Class Reference

abstract class whose subclasses generate polygonal data More...

#include <vtkPolyDataSource.h>

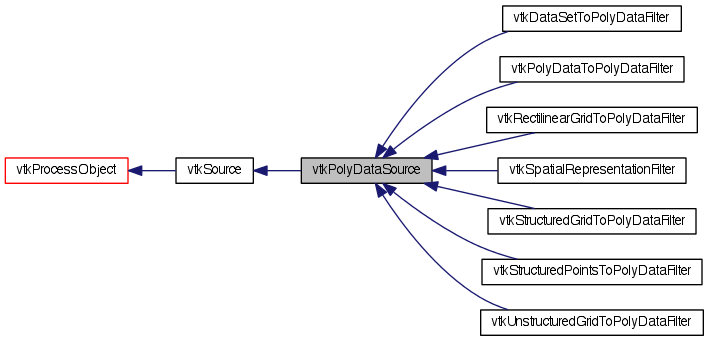

Inheritance diagram for vtkPolyDataSource:

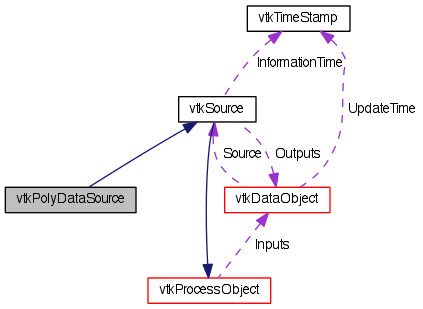

Collaboration diagram for vtkPolyDataSource:

List of all members.

Public Types
typedef vtkSource	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
vtkPolyData *	GetOutput ()
vtkPolyData *	GetOutput (int idx)
void	SetOutput (vtkPolyData *output)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkPolyDataSource *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkPolyDataSource ()
	~vtkPolyDataSource ()
void	ComputeInputUpdateExtents (vtkDataObject *output)
int	FillOutputPortInformation (int, vtkInformation *)

---

Detailed Description

abstract class whose subclasses generate polygonal data

vtkPolyDataSource is an abstract class whose subclasses generate polygonal data.

See also:

vtkPolyDataReader vtkAxes vtkBYUReader vtkConeSource vtkCubeSource vtkCursor3D vtkCyberReader vtkCylinderSource vtkDiskSource vtkLineSource vtkMCubesReader vtkOutlineSource vtkPlaneSource vtkPointSource vtkSTLReader vtkSphereSource vtkTextSource vtkUGFacetReader vtkVectorText

Definition at line 35 of file vtkPolyDataSource.h.

---

Member Typedef Documentation

typedef vtkSource vtkPolyDataSource::Superclass

Reimplemented from vtkSource.

Reimplemented in vtkSpatialRepresentationFilter, vtkPolyDataToPolyDataFilter, vtkDataSetToPolyDataFilter, vtkStructuredPointsToPolyDataFilter, vtkUnstructuredGridToPolyDataFilter, vtkRectilinearGridToPolyDataFilter, and vtkStructuredGridToPolyDataFilter.

Definition at line 38 of file vtkPolyDataSource.h.

---

Constructor & Destructor Documentation

vtkPolyDataSource::vtkPolyDataSource

(

)

[protected]

vtkPolyDataSource::~vtkPolyDataSource

(

)

[inline, protected]

Definition at line 50 of file vtkPolyDataSource.h.

---

Member Function Documentation

virtual const char* vtkPolyDataSource::GetClassName

(

)

[virtual]

Reimplemented from vtkSource.

Reimplemented in vtkSpatialRepresentationFilter, vtkPolyDataToPolyDataFilter, vtkDataSetToPolyDataFilter, vtkStructuredPointsToPolyDataFilter, vtkUnstructuredGridToPolyDataFilter, vtkRectilinearGridToPolyDataFilter, and vtkStructuredGridToPolyDataFilter.

static int vtkPolyDataSource::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkSource.

Reimplemented in vtkSpatialRepresentationFilter, vtkPolyDataToPolyDataFilter, vtkDataSetToPolyDataFilter, vtkStructuredPointsToPolyDataFilter, vtkUnstructuredGridToPolyDataFilter, vtkRectilinearGridToPolyDataFilter, and vtkStructuredGridToPolyDataFilter.

virtual int vtkPolyDataSource::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkSource.

Reimplemented in vtkSpatialRepresentationFilter, vtkPolyDataToPolyDataFilter, vtkDataSetToPolyDataFilter, vtkStructuredPointsToPolyDataFilter, vtkUnstructuredGridToPolyDataFilter, vtkRectilinearGridToPolyDataFilter, and vtkStructuredGridToPolyDataFilter.

static vtkPolyDataSource* vtkPolyDataSource::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkSource.

Reimplemented in vtkSpatialRepresentationFilter, vtkPolyDataToPolyDataFilter, vtkDataSetToPolyDataFilter, vtkStructuredPointsToPolyDataFilter, vtkUnstructuredGridToPolyDataFilter, vtkRectilinearGridToPolyDataFilter, and vtkStructuredGridToPolyDataFilter.

void vtkPolyDataSource::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkSource.

Reimplemented in vtkSpatialRepresentationFilter, vtkPolyDataToPolyDataFilter, vtkDataSetToPolyDataFilter, vtkStructuredPointsToPolyDataFilter, vtkUnstructuredGridToPolyDataFilter, vtkRectilinearGridToPolyDataFilter, and vtkStructuredGridToPolyDataFilter.

vtkPolyData* vtkPolyDataSource::GetOutput

(

)

Get the output of this source.

Reimplemented in vtkSpatialRepresentationFilter.

vtkPolyData* vtkPolyDataSource::GetOutput

(

int

idx

)

Get the output of this source.

Reimplemented from vtkSource.

Reimplemented in vtkSpatialRepresentationFilter.

void vtkPolyDataSource::SetOutput

(

vtkPolyData *

output

)

Get the output of this source.

void vtkPolyDataSource::ComputeInputUpdateExtents

(

vtkDataObject *

output

)

[protected, virtual]

What is the input update extent that is required to produce the desired output? By default, the whole input is always required but this is overridden in many subclasses.

Reimplemented from vtkSource.

Reimplemented in vtkStructuredPointsToPolyDataFilter, vtkDataSetToPolyDataFilter, and vtkUnstructuredGridToPolyDataFilter.

int vtkPolyDataSource::FillOutputPortInformation	(	int	port,
		vtkInformation *	info
	)		[protected, virtual]

Fill the output port information objects for this algorithm. This is invoked by the first call to GetOutputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkSource.

---

The documentation for this class was generated from the following file:

• dox/Filtering/vtkPolyDataSource.h
