vtkQtChartSeriesOptionsModel is the base class for all chart series options models. More...

#include <vtkQtChartSeriesOptionsModel.h>

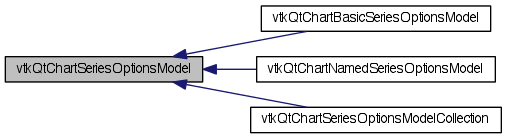

Inheritance diagram for vtkQtChartSeriesOptionsModel:

Public Types
typedef QObject	Superclass
Public Slots
virtual void	reset ()=0
	Resets the model.
Signals
void	modelAboutToBeReset ()
	Emitted when the model is about to be reset.
void	modelReset ()
	Emitted when the model has been reset.
void	optionsAboutToBeInserted (int first, int last)
	Emitted when options will be inserted into the model.
void	optionsInserted (int first, int last)
	Emitted when options have been inserted into the model.
void	optionsAboutToBeRemoved (int first, int last)
	Emitted when options will be removed from the model.
void	optionsRemoved (int first, int last)
	Emitted when options have been removed from the model.
void	optionsChanged (vtkQtChartSeriesOptions *options, int type, const QVariant &newValue, const QVariant &oldValue)
	Emitted when options fire dataChanged() signal.
Public Member Functions
	vtkQtChartSeriesOptionsModel (QObject *parent=0)
	Creates a chart series options model.
virtual	~vtkQtChartSeriesOptionsModel ()
virtual int	getNumberOfOptions () const =0
	Gets the number of options.
virtual vtkQtChartSeriesOptions *	getOptions (int series) const =0
	Gets the options for a particular series.
virtual int	getOptionsIndex (vtkQtChartSeriesOptions *options) const =0
	Gets the index for the given series options.
Protected Member Functions
vtkQtChartSeriesOptions *	newOptions (QObject *parent)
	Creates a new options object.
void	releaseOptions (vtkQtChartSeriesOptions *options)
	Releases the options. This will delete the options instance.

Detailed Description

vtkQtChartSeriesOptionsModel is the base class for all chart series options models.

This can be considered analogous to vtkQtChartSeriesModel except that instead of providing details about the series, it provides the options for the series.

Definition at line 36 of file vtkQtChartSeriesOptionsModel.h.

Member Typedef Documentation

typedef QObject vtkQtChartSeriesOptionsModel::Superclass

Reimplemented in vtkQtChartSeriesOptionsModelCollection, vtkQtChartBasicSeriesOptionsModel, and vtkQtChartNamedSeriesOptionsModel.

Definition at line 41 of file vtkQtChartSeriesOptionsModel.h.

Constructor & Destructor Documentation

vtkQtChartSeriesOptionsModel::vtkQtChartSeriesOptionsModel ( QObject * parent = 0 )

Creates a chart series options model.

Parameters:

param The parent object.

virtual vtkQtChartSeriesOptionsModel::~vtkQtChartSeriesOptionsModel ( ) [inline, virtual]

Definition at line 47 of file vtkQtChartSeriesOptionsModel.h.

Member Function Documentation

virtual int vtkQtChartSeriesOptionsModel::getNumberOfOptions ( ) const [pure virtual]

Gets the number of options.

Implemented in vtkQtChartBasicSeriesOptionsModel, vtkQtChartSeriesOptionsModelCollection, and vtkQtChartNamedSeriesOptionsModel.

virtual vtkQtChartSeriesOptions* vtkQtChartSeriesOptionsModel::getOptions ( int series ) const [pure virtual]

Gets the options for a particular series.

Parameters:

series The series index

Returns:: The options for the series at the given index.

Implemented in vtkQtChartBasicSeriesOptionsModel, vtkQtChartSeriesOptionsModelCollection, and vtkQtChartNamedSeriesOptionsModel.

virtual int vtkQtChartSeriesOptionsModel::getOptionsIndex ( vtkQtChartSeriesOptions * options ) const [pure virtual]

Gets the index for the given series options.

Parameters:

options The series options object.

Returns:: The index for the given series options.

Implemented in vtkQtChartBasicSeriesOptionsModel, vtkQtChartSeriesOptionsModelCollection, and vtkQtChartNamedSeriesOptionsModel.

virtual void vtkQtChartSeriesOptionsModel::reset ( ) [pure virtual, slot]

Resets the model.

Implemented in vtkQtChartSeriesOptionsModelCollection, vtkQtChartNamedSeriesOptionsModel, and vtkQtChartBasicSeriesOptionsModel.

void vtkQtChartSeriesOptionsModel::modelAboutToBeReset ( ) [signal]

Emitted when the model is about to be reset.

void vtkQtChartSeriesOptionsModel::modelReset ( ) [signal]

Emitted when the model has been reset.

void vtkQtChartSeriesOptionsModel::optionsAboutToBeInserted	(	int	first,
		int	last
	)		`[signal]`

Emitted when options will be inserted into the model.

Parameters:

first	The first index to be added.
last	The last index to be added.

void vtkQtChartSeriesOptionsModel::optionsInserted	(	int	first,
		int	last
	)		`[signal]`

Emitted when options have been inserted into the model.

Parameters:

first	The first index that was inserted.
last	The last index that was inserted.

void vtkQtChartSeriesOptionsModel::optionsAboutToBeRemoved	(	int	first,
		int	last
	)		`[signal]`

Emitted when options will be removed from the model.

Parameters:

first	The first index to be removed.
last	The last index to be removed.

void vtkQtChartSeriesOptionsModel::optionsRemoved	(	int	first,
		int	last
	)		`[signal]`

Emitted when options have been removed from the model.

Parameters:

first	The first index that was removed.
last	The last index that was removed.

void vtkQtChartSeriesOptionsModel::optionsChanged	(	vtkQtChartSeriesOptions *	options,
		int	type,
		const QVariant &	newValue,
		const QVariant &	oldValue
	)		`[signal]`

Emitted when options fire dataChanged() signal.

Parameters:

options	The options that fired the dataChanged() signal.
type	Type of the option that was changed.
newValue	The new value for the option.
oldValue	The previous value for the option, if any.

vtkQtChartSeriesOptions* vtkQtChartSeriesOptionsModel::newOptions ( QObject * parent ) [protected]

Creates a new options object.

Parameters:

parent The parent QObject for the options.

Returns:: The new instance of vtkQtChartSeriesOptions with proper default values.

void vtkQtChartSeriesOptionsModel::releaseOptions ( vtkQtChartSeriesOptions * options ) [protected]

Releases the options. This will delete the options instance.

The documentation for this class was generated from the following file:

dox/GUISupport/Qt/Chart/vtkQtChartSeriesOptionsModel.h
