The vtkQtChartTableSeriesModel class is a chart series model proxy for a QAbstractItemModel table. More...

#include <vtkQtChartTableSeriesModel.h>

Inheritance diagram for vtkQtChartTableSeriesModel:

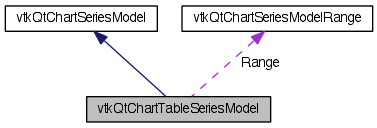

Collaboration diagram for vtkQtChartTableSeriesModel:

Public Member Functions
	vtkQtChartTableSeriesModel (QAbstractItemModel model, QObject parent=0)
	Creates a table series model.
virtual	~vtkQtChartTableSeriesModel ()
QAbstractItemModel *	getItemModel () const
	Gets the item model.
void	setItemModel (QAbstractItemModel *model)
	Sets the item model.
bool	getColumnsAsSeries () const
	Gets whether or not columns are series.
void	setColumnsAsSeries (bool columnsAsSeries)
	Sets whether or not columns are series.
vtkQtChartSeriesModel Methods
virtual int	getNumberOfSeries () const
	Gets the number of series in the model.
virtual int	getNumberOfSeriesValues (int series) const
	Gets the number of values in a series.
virtual QVariant	getSeriesName (int series) const
	Gets the name for the given series.
virtual QVariant	getSeriesValue (int series, int index, int component) const
	Gets the series value for the given index and component.
virtual QList< QVariant >	getSeriesRange (int series, int component) const
	Gets the value range for a series component.
Protected Slots
void	rowsAboutToBeInserted (const QModelIndex &index, int first, int last)
	Called when the item model is about to insert rows.
void	rowsInserted (const QModelIndex &index, int first, int last)
	Called when the item model has inserted rows.
void	columnsAboutToBeInserted (const QModelIndex &index, int first, int last)
	Called when the item model is about to insert columns.
void	columnsInserted (const QModelIndex &index, int first, int last)
	Called when the item model has inserted columns.
void	rowsAboutToBeRemoved (const QModelIndex &index, int first, int last)
	Called when the item model is about to remove rows.
void	rowsRemoved (const QModelIndex &index, int first, int last)
	Called when the item model has removed rows.
void	columnsAboutToBeRemoved (const QModelIndex &index, int first, int last)
	Called when the item model is about to remove columns.
void	columnsRemoved (const QModelIndex &index, int first, int last)
	Called when the item model has removed columns.
Protected Attributes
QAbstractItemModel *	Model
	Stores the item model.
vtkQtChartSeriesModelRange *	Range
	Stores the series ranges.
bool	ColumnsAsSeries
	True if columns are series.

Detailed Description

The vtkQtChartTableSeriesModel class is a chart series model proxy for a QAbstractItemModel table.

Definition at line 39 of file vtkQtChartTableSeriesModel.h.

Constructor & Destructor Documentation

vtkQtChartTableSeriesModel::vtkQtChartTableSeriesModel	(	QAbstractItemModel *	model,
		QObject *	parent = `0`
	)

Creates a table series model.

Parameters:

model	The item model to display.
parent	The parent object.

virtual vtkQtChartTableSeriesModel::~vtkQtChartTableSeriesModel ( ) [inline, virtual]

Definition at line 50 of file vtkQtChartTableSeriesModel.h.

Member Function Documentation

QAbstractItemModel* vtkQtChartTableSeriesModel::getItemModel ( ) const [inline]

Gets the item model.

Returns:: A pointer to the item model.

Definition at line 56 of file vtkQtChartTableSeriesModel.h.

void vtkQtChartTableSeriesModel::setItemModel ( QAbstractItemModel * model )

Sets the item model.

Parameters:

model The new item model.

bool vtkQtChartTableSeriesModel::getColumnsAsSeries ( ) const

Gets whether or not columns are series.

Returns:: True if columns are series.

void vtkQtChartTableSeriesModel::setColumnsAsSeries ( bool columnsAsSeries )

Sets whether or not columns are series.

Parameters:

columnsAsSeries True if columns are series.

virtual int vtkQtChartTableSeriesModel::getNumberOfSeries ( ) const [virtual]

Gets the number of series in the model.

Returns:: The number of series in the model.

Implements vtkQtChartSeriesModel.

virtual int vtkQtChartTableSeriesModel::getNumberOfSeriesValues ( int series ) const [virtual]

Gets the number of values in a series.

Parameters:

series The series index.

Returns:: The number of values in a series.

Implements vtkQtChartSeriesModel.

virtual QVariant vtkQtChartTableSeriesModel::getSeriesName ( int series ) const [virtual]

Gets the name for the given series.

Parameters:

series The series index.

Returns:: The name for the given series.

Implements vtkQtChartSeriesModel.

virtual QVariant vtkQtChartTableSeriesModel::getSeriesValue	(	int	series,
		int	index,
		int	component
	)		const `[virtual]`

Gets the series value for the given index and component.

Parameters:

series	The series index.
index	The index in the given series.
component	The component index.

Returns:: The series value for the given index and component.

Implements vtkQtChartSeriesModel.

virtual QList<QVariant> vtkQtChartTableSeriesModel::getSeriesRange	(	int	series,
		int	component
	)		const `[virtual]`

Gets the value range for a series component.

Parameters:

series	The series index.
component	The component index.

Returns:: The value range for a series component.

Implements vtkQtChartSeriesModel.

void vtkQtChartTableSeriesModel::rowsAboutToBeInserted	(	const QModelIndex &	index,
		int	first,
		int	last
	)		`[protected, slot]`

Called when the item model is about to insert rows.

Parameters:

index	The parent model index.
first	The first index of the insertion range.
last	The last index of the insertion range.

void vtkQtChartTableSeriesModel::rowsInserted	(	const QModelIndex &	index,
		int	first,
		int	last
	)		`[protected, slot]`

Called when the item model has inserted rows.

Parameters:

index	The parent model index.
first	The first index of the insertion range.
last	The last index of the insertion range.

void vtkQtChartTableSeriesModel::columnsAboutToBeInserted	(	const QModelIndex &	index,
		int	first,
		int	last
	)		`[protected, slot]`

Called when the item model is about to insert columns.

Parameters:

index	The parent model index.
first	The first index of the insertion range.
last	The last index of the insertion range.

void vtkQtChartTableSeriesModel::columnsInserted	(	const QModelIndex &	index,
		int	first,
		int	last
	)		`[protected, slot]`

Called when the item model has inserted columns.

Parameters:

index	The parent model index.
first	The first index of the insertion range.
last	The last index of the insertion range.

void vtkQtChartTableSeriesModel::rowsAboutToBeRemoved	(	const QModelIndex &	index,
		int	first,
		int	last
	)		`[protected, slot]`

Called when the item model is about to remove rows.

Parameters:

index	The parent model index.
first	The first index of the removal range.
last	The last index of the removal range.

void vtkQtChartTableSeriesModel::rowsRemoved	(	const QModelIndex &	index,
		int	first,
		int	last
	)		`[protected, slot]`

Called when the item model has removed rows.

Parameters:

index	The parent model index.
first	The first index of the removal range.
last	The last index of the removal range.

void vtkQtChartTableSeriesModel::columnsAboutToBeRemoved	(	const QModelIndex &	index,
		int	first,
		int	last
	)		`[protected, slot]`

Called when the item model is about to remove columns.

Parameters:

index	The parent model index.
first	The first index of the removal range.
last	The last index of the removal range.

void vtkQtChartTableSeriesModel::columnsRemoved	(	const QModelIndex &	index,
		int	first,
		int	last
	)		`[protected, slot]`

Called when the item model has removed columns.

Parameters:

index	The parent model index.
first	The first index of the removal range.
last	The last index of the removal range.

Member Data Documentation

QAbstractItemModel* vtkQtChartTableSeriesModel::Model [protected]

Stores the item model.

Definition at line 141 of file vtkQtChartTableSeriesModel.h.

vtkQtChartSeriesModelRange* vtkQtChartTableSeriesModel::Range [protected]

Stores the series ranges.

Definition at line 142 of file vtkQtChartTableSeriesModel.h.

bool vtkQtChartTableSeriesModel::ColumnsAsSeries [protected]

True if columns are series.

Definition at line 143 of file vtkQtChartTableSeriesModel.h.

The documentation for this class was generated from the following file:

dox/GUISupport/Qt/Chart/vtkQtChartTableSeriesModel.h
