vtkAxisActor Class Reference

#include <vtkAxisActor.h>

Inheritance diagram for vtkAxisActor:

[legend]

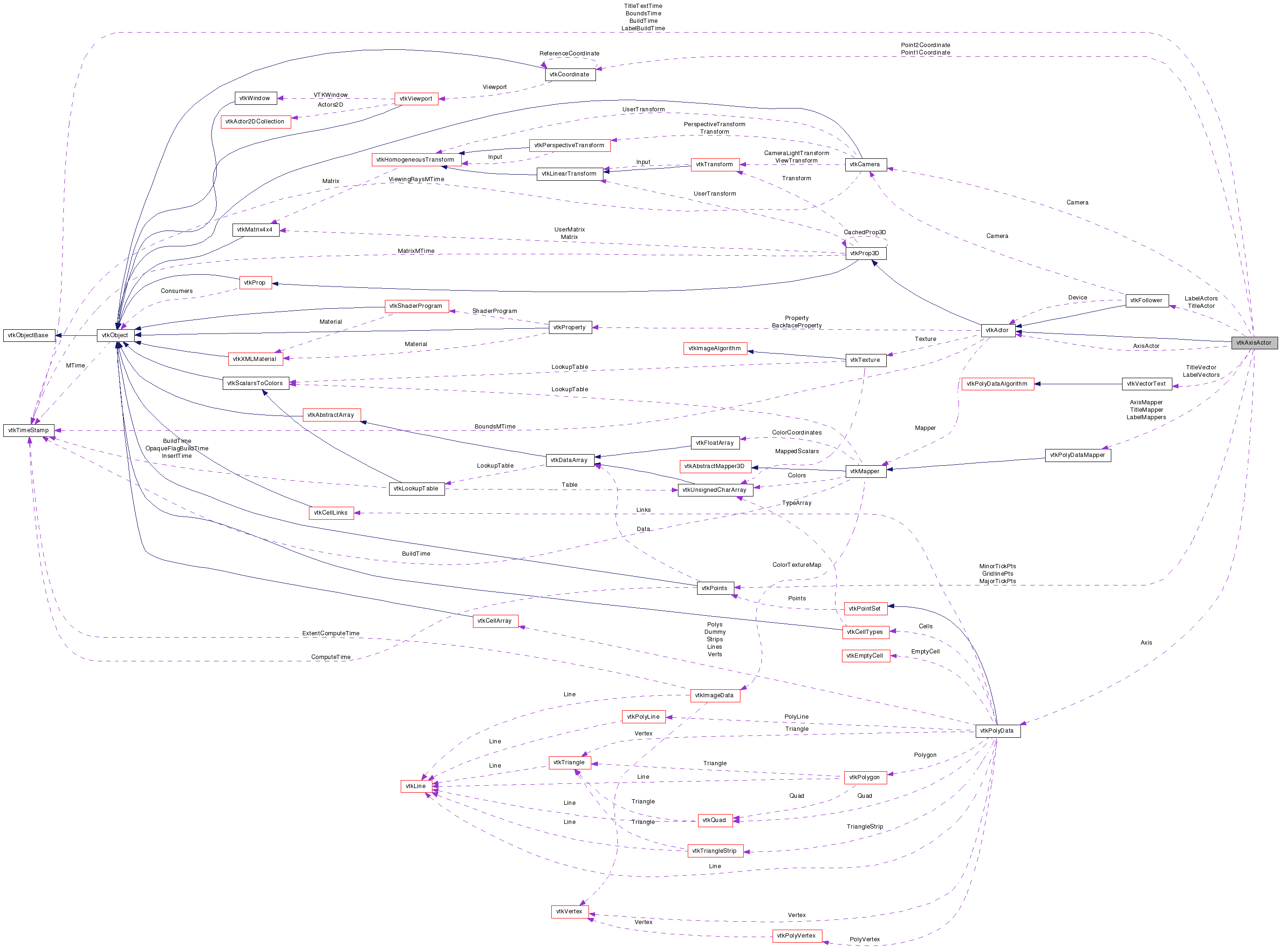

Collaboration diagram for vtkAxisActor:

[legend]

List of all members.

Detailed Description

Create an axis with tick marks and labels.

Date: 2008-07-21 19:37:18

Revision: 1.2.2.1

vtkAxisActor creates an axis with tick marks, labels, and/or a title, depending on the particular instance variable settings. It is assumed that the axes is part of a bounding box and is orthoganal to one of the coordinate axes. To use this class, you typically specify two points defining the start and end points of the line (xyz definition using vtkCoordinate class), the axis type (X, Y or Z), the axis location in relation to the bounding box, the bounding box, the number of labels, and the data range (min,max). You can also control what parts of the axis are visible including the line, the tick marks, the labels, and the title. It is also possible to control gridlines, and specifiy on which 'side' the tickmarks are drawn (again with respect to the underlying assumed bounding box). You can also specify the label format (a printf style format).

This class decides how to locate the labels, and how to create reasonable tick marks and labels.

Labels follow the camera so as to be legible from any viewpoint.

The instance variables Point1 and Point2 are instances of vtkCoordinate. All calculations and references are in World Coordinates.

Attention:: This class was adapted from a 2D version created by Hank Childs called vtkHankAxisActor2D.

See also:: vtkActor vtkVectorText vtkPolyDataMapper vtkAxisActor2D vtkCoordinate

Definition at line 87 of file vtkAxisActor.h.


Public Types
typedef vtkActor	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	SetTickLocationToInside (void)
void	SetTickLocationToOutside (void)
void	SetTickLocationToBoth (void)
void	SetAxisPositionToMinMin (void)
void	SetAxisPositionToMinMax (void)
void	SetAxisPositionToMaxMax (void)
void	SetAxisPositionToMaxMin (void)
void	ReleaseGraphicsResources (vtkWindow *)
void	ShallowCopy (vtkProp *prop)
double	ComputeMaxLabelLength (const double[3])
double	ComputeTitleLength (const double[3])
void	SetLabelScale (const double)
void	SetTitleScale (const double)
void	SetLabels (vtkStringArray *labels)
void	BuildAxis (vtkViewport *viewport, bool)

virtual vtkCoordinate *	GetPoint1Coordinate ()
virtual void	SetPoint1 (double x[3])
virtual void	SetPoint1 (double x, double y, double z)
virtual double *	GetPoint1 ()

virtual vtkCoordinate *	GetPoint2Coordinate ()
virtual void	SetPoint2 (double x[3])
virtual void	SetPoint2 (double x, double y, double z)
virtual double *	GetPoint2 ()

virtual void	SetRange (double, double)
void	SetRange (double[2])
virtual double *	GetRange ()
virtual void	GetRange (double data[2])

void	SetBounds (double bounds[6])
double *	GetBounds (void)
void	GetBounds (double bounds[6])

virtual void	SetLabelFormat (const char *)
virtual char *	GetLabelFormat ()

virtual void	SetMinorTicksVisible (int)
virtual int	GetMinorTicksVisible ()
virtual void	MinorTicksVisibleOn ()
virtual void	MinorTicksVisibleOff ()

void	SetTitle (const char *t)
virtual char *	GetTitle ()

virtual void	SetMajorTickSize (double)
virtual double	GetMajorTickSize ()

virtual void	SetMinorTickSize (double)
virtual double	GetMinorTickSize ()

virtual void	SetTickLocation (int)
virtual int	GetTickLocation ()

virtual void	SetAxisVisibility (int)
virtual int	GetAxisVisibility ()
virtual void	AxisVisibilityOn ()
virtual void	AxisVisibilityOff ()

virtual void	SetTickVisibility (int)
virtual int	GetTickVisibility ()
virtual void	TickVisibilityOn ()
virtual void	TickVisibilityOff ()

virtual void	SetLabelVisibility (int)
virtual int	GetLabelVisibility ()
virtual void	LabelVisibilityOn ()
virtual void	LabelVisibilityOff ()

virtual void	SetTitleVisibility (int)
virtual int	GetTitleVisibility ()
virtual void	TitleVisibilityOn ()
virtual void	TitleVisibilityOff ()

virtual void	SetDrawGridlines (int)
virtual int	GetDrawGridlines ()
virtual void	DrawGridlinesOn ()
virtual void	DrawGridlinesOff ()

virtual void	SetGridlineXLength (double)
virtual double	GetGridlineXLength ()
virtual void	SetGridlineYLength (double)
virtual double	GetGridlineYLength ()
virtual void	SetGridlineZLength (double)
virtual double	GetGridlineZLength ()

virtual void	SetAxisType (int)
virtual int	GetAxisType ()
void	SetAxisTypeToX (void)
void	SetAxisTypeToY (void)
void	SetAxisTypeToZ (void)

virtual void	SetAxisPosition (int)
virtual int	GetAxisPosition ()

virtual void	SetCamera (vtkCamera *)
virtual vtkCamera *	GetCamera ()

virtual int	RenderOpaqueGeometry (vtkViewport *viewport)
virtual int	RenderTranslucentGeometry (vtkViewport *)

virtual void	SetMinorStart (double)
virtual double	GetMinorStart ()
virtual void	SetMajorStart (double)
virtual double	GetMajorStart ()
virtual void	SetDeltaMinor (double)
virtual double	GetDeltaMinor ()
virtual void	SetDeltaMajor (double)
virtual double	GetDeltaMajor ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkAxisActor *	SafeDownCast (vtkObject *o)
static vtkAxisActor *	New ()
Protected Member Functions
	vtkAxisActor ()
	~vtkAxisActor ()
Protected Attributes
char *	Title
double	Range [2]
double	LastRange [2]
char *	LabelFormat
int	NumberOfLabelsBuilt
int	MinorTicksVisible
int	LastMinorTicksVisible
int	TickLocation
int	DrawGridlines
int	LastDrawGridlines
double	GridlineXLength
double	GridlineYLength
double	GridlineZLength
int	AxisVisibility
int	TickVisibility
int	LastTickVisibility
int	LabelVisibility
int	TitleVisibility
int	AxisType
int	AxisPosition
double	Bounds [6]

Member Typedef Documentation

typedef vtkActor vtkAxisActor::Superclass

Reimplemented from vtkActor.

Definition at line 90 of file vtkAxisActor.h.

Constructor & Destructor Documentation

vtkAxisActor::vtkAxisActor ( ) [protected]

vtkAxisActor::~vtkAxisActor ( ) [protected]

Member Function Documentation

virtual const char* vtkAxisActor::GetClassName ( ) [virtual]

Reimplemented from vtkActor.

static int vtkAxisActor::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkActor.

virtual int vtkAxisActor::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkActor.

static vtkAxisActor* vtkAxisActor::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkActor.

void vtkAxisActor::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkActor.

static vtkAxisActor* vtkAxisActor::New ( ) [static]

Instantiate object.

Reimplemented from vtkActor.

virtual vtkCoordinate* vtkAxisActor::GetPoint1Coordinate ( ) [virtual]

Specify the position of the first point defining the axis.

virtual void vtkAxisActor::SetPoint1 ( double x[3] ) [inline, virtual]

Specify the position of the first point defining the axis.

Definition at line 99 of file vtkAxisActor.h.

virtual void vtkAxisActor::SetPoint1	(	double	x,
		double	y,
		double	z
	)			`[virtual]`

Specify the position of the first point defining the axis.

virtual double* vtkAxisActor::GetPoint1 ( ) [virtual]

Specify the position of the first point defining the axis.

virtual vtkCoordinate* vtkAxisActor::GetPoint2Coordinate ( ) [virtual]

Specify the position of the second point defining the axis.

virtual void vtkAxisActor::SetPoint2 ( double x[3] ) [inline, virtual]

Specify the position of the second point defining the axis.

Definition at line 108 of file vtkAxisActor.h.

virtual void vtkAxisActor::SetPoint2	(	double	x,
		double	y,
		double	z
	)			`[virtual]`

Specify the position of the second point defining the axis.

virtual double* vtkAxisActor::GetPoint2 ( ) [virtual]

Specify the position of the second point defining the axis.

virtual void vtkAxisActor::SetRange	(	double	,
		double
	)			`[virtual]`

Specify the (min,max) axis range. This will be used in the generation of labels, if labels are visible.

void vtkAxisActor::SetRange ( double [2] )

Specify the (min,max) axis range. This will be used in the generation of labels, if labels are visible.

virtual double* vtkAxisActor::GetRange ( ) [virtual]

Specify the (min,max) axis range. This will be used in the generation of labels, if labels are visible.

virtual void vtkAxisActor::GetRange ( double data[2] ) [virtual]

Specify the (min,max) axis range. This will be used in the generation of labels, if labels are visible.

void vtkAxisActor::SetBounds ( double bounds[6] )

Set or get the bounds for this Actor as (Xmin,Xmax,Ymin,Ymax,Zmin,Zmax).

double* vtkAxisActor::GetBounds ( void ) [virtual]

Set or get the bounds for this Actor as (Xmin,Xmax,Ymin,Ymax,Zmin,Zmax).

Reimplemented from vtkActor.

void vtkAxisActor::GetBounds ( double bounds[6] )

Set or get the bounds for this Actor as (Xmin,Xmax,Ymin,Ymax,Zmin,Zmax).

Reimplemented from vtkActor.

virtual void vtkAxisActor::SetLabelFormat ( const char * ) [virtual]

Set/Get the format with which to print the labels on the axis.

virtual char* vtkAxisActor::GetLabelFormat ( ) [virtual]

Set/Get the format with which to print the labels on the axis.

virtual void vtkAxisActor::SetMinorTicksVisible ( int ) [virtual]

Set/Get the flag that controls whether the minor ticks are visible.

virtual int vtkAxisActor::GetMinorTicksVisible ( ) [virtual]

Set/Get the flag that controls whether the minor ticks are visible.

virtual void vtkAxisActor::MinorTicksVisibleOn ( ) [virtual]

Set/Get the flag that controls whether the minor ticks are visible.

virtual void vtkAxisActor::MinorTicksVisibleOff ( ) [virtual]

Set/Get the flag that controls whether the minor ticks are visible.

void vtkAxisActor::SetTitle ( const char * t )

Set/Get the title of the axis actor,

virtual char* vtkAxisActor::GetTitle ( ) [virtual]

Set/Get the title of the axis actor,

virtual void vtkAxisActor::SetMajorTickSize ( double ) [virtual]

Set/Get the size of the major tick marks

virtual double vtkAxisActor::GetMajorTickSize ( ) [virtual]

Set/Get the size of the major tick marks

virtual void vtkAxisActor::SetMinorTickSize ( double ) [virtual]

Set/Get the size of the major tick marks

virtual double vtkAxisActor::GetMinorTickSize ( ) [virtual]

Set/Get the size of the major tick marks

virtual void vtkAxisActor::SetTickLocation ( int ) [virtual]

Set/Get the location of the ticks.

virtual int vtkAxisActor::GetTickLocation ( ) [virtual]

Set/Get the location of the ticks.

void vtkAxisActor::SetTickLocationToInside ( void ) [inline]

Definition at line 167 of file vtkAxisActor.h.

void vtkAxisActor::SetTickLocationToOutside ( void ) [inline]

Definition at line 169 of file vtkAxisActor.h.

void vtkAxisActor::SetTickLocationToBoth ( void ) [inline]

Definition at line 171 of file vtkAxisActor.h.

virtual void vtkAxisActor::SetAxisVisibility ( int ) [virtual]

Set/Get visibility of the axis line.

virtual int vtkAxisActor::GetAxisVisibility ( ) [virtual]

Set/Get visibility of the axis line.

virtual void vtkAxisActor::AxisVisibilityOn ( ) [virtual]

Set/Get visibility of the axis line.

virtual void vtkAxisActor::AxisVisibilityOff ( ) [virtual]

Set/Get visibility of the axis line.

virtual void vtkAxisActor::SetTickVisibility ( int ) [virtual]

Set/Get visibility of the axis tick marks.

virtual int vtkAxisActor::GetTickVisibility ( ) [virtual]

Set/Get visibility of the axis tick marks.

virtual void vtkAxisActor::TickVisibilityOn ( ) [virtual]

Set/Get visibility of the axis tick marks.

virtual void vtkAxisActor::TickVisibilityOff ( ) [virtual]

Set/Get visibility of the axis tick marks.

virtual void vtkAxisActor::SetLabelVisibility ( int ) [virtual]

Set/Get visibility of the axis labels.

virtual int vtkAxisActor::GetLabelVisibility ( ) [virtual]

Set/Get visibility of the axis labels.

virtual void vtkAxisActor::LabelVisibilityOn ( ) [virtual]

Set/Get visibility of the axis labels.

virtual void vtkAxisActor::LabelVisibilityOff ( ) [virtual]

Set/Get visibility of the axis labels.

virtual void vtkAxisActor::SetTitleVisibility ( int ) [virtual]

Set/Get visibility of the axis title.

virtual int vtkAxisActor::GetTitleVisibility ( ) [virtual]

Set/Get visibility of the axis title.

virtual void vtkAxisActor::TitleVisibilityOn ( ) [virtual]

Set/Get visibility of the axis title.

virtual void vtkAxisActor::TitleVisibilityOff ( ) [virtual]

Set/Get visibility of the axis title.

virtual void vtkAxisActor::SetDrawGridlines ( int ) [virtual]

Set/Get whether gridlines should be drawn.

virtual int vtkAxisActor::GetDrawGridlines ( ) [virtual]

Set/Get whether gridlines should be drawn.

virtual void vtkAxisActor::DrawGridlinesOn ( ) [virtual]

Set/Get whether gridlines should be drawn.

virtual void vtkAxisActor::DrawGridlinesOff ( ) [virtual]

Set/Get whether gridlines should be drawn.

virtual void vtkAxisActor::SetGridlineXLength ( double ) [virtual]

Set/Get the length to use when drawing gridlines.

virtual double vtkAxisActor::GetGridlineXLength ( ) [virtual]

Set/Get the length to use when drawing gridlines.

virtual void vtkAxisActor::SetGridlineYLength ( double ) [virtual]

Set/Get the length to use when drawing gridlines.

virtual double vtkAxisActor::GetGridlineYLength ( ) [virtual]

Set/Get the length to use when drawing gridlines.

virtual void vtkAxisActor::SetGridlineZLength ( double ) [virtual]

Set/Get the length to use when drawing gridlines.

virtual double vtkAxisActor::GetGridlineZLength ( ) [virtual]

Set/Get the length to use when drawing gridlines.

virtual void vtkAxisActor::SetAxisType ( int ) [virtual]

Set/Get the type of this axis.

virtual int vtkAxisActor::GetAxisType ( ) [virtual]

Set/Get the type of this axis.

void vtkAxisActor::SetAxisTypeToX ( void ) [inline]

Set/Get the type of this axis.

Definition at line 223 of file vtkAxisActor.h.

void vtkAxisActor::SetAxisTypeToY ( void ) [inline]

Set/Get the type of this axis.

Definition at line 224 of file vtkAxisActor.h.

void vtkAxisActor::SetAxisTypeToZ ( void ) [inline]

Set/Get the type of this axis.

Definition at line 225 of file vtkAxisActor.h.

virtual void vtkAxisActor::SetAxisPosition ( int ) [virtual]

Set/Get the position of this axis (in relation to an an assumed bounding box). For an x-type axis, MINMIN corresponds to the x-edge in the bounding box where Y values are minimum and Z values are minimum. For a y-type axis, MAXMIN corresponds to the y-edge where X values are maximum and Z values are minimum.

virtual int vtkAxisActor::GetAxisPosition ( ) [virtual]

Set/Get the position of this axis (in relation to an an assumed bounding box). For an x-type axis, MINMIN corresponds to the x-edge in the bounding box where Y values are minimum and Z values are minimum. For a y-type axis, MAXMIN corresponds to the y-edge where X values are maximum and Z values are minimum.

void vtkAxisActor::SetAxisPositionToMinMin ( void ) [inline]

Definition at line 238 of file vtkAxisActor.h.

void vtkAxisActor::SetAxisPositionToMinMax ( void ) [inline]

Definition at line 240 of file vtkAxisActor.h.

void vtkAxisActor::SetAxisPositionToMaxMax ( void ) [inline]

Definition at line 242 of file vtkAxisActor.h.

void vtkAxisActor::SetAxisPositionToMaxMin ( void ) [inline]

Definition at line 244 of file vtkAxisActor.h.

virtual void vtkAxisActor::SetCamera ( vtkCamera * ) [virtual]

Set/Get the camera for this axis. The camera is used by the labels to 'follow' the camera and be legible from any viewpoint.

virtual vtkCamera* vtkAxisActor::GetCamera ( ) [virtual]

Set/Get the camera for this axis. The camera is used by the labels to 'follow' the camera and be legible from any viewpoint.

virtual int vtkAxisActor::RenderOpaqueGeometry ( vtkViewport * viewport ) [virtual]

Draw the axis.

Reimplemented from vtkActor.

virtual int vtkAxisActor::RenderTranslucentGeometry ( vtkViewport * ) [inline, virtual]

Draw the axis.

Definition at line 257 of file vtkAxisActor.h.

void vtkAxisActor::ReleaseGraphicsResources ( vtkWindow * ) [virtual]

Release any graphics resources that are being consumed by this actor. The parameter window could be used to determine which graphic resources to release.

Reimplemented from vtkActor.

void vtkAxisActor::ShallowCopy ( vtkProp * prop ) [virtual]

Shallow copy of an axis actor. Overloads the virtual vtkProp method.

Reimplemented from vtkActor.

double vtkAxisActor::ComputeMaxLabelLength ( const double[3] )

double vtkAxisActor::ComputeTitleLength ( const double[3] )

void vtkAxisActor::SetLabelScale ( const double )

void vtkAxisActor::SetTitleScale ( const double )

virtual void vtkAxisActor::SetMinorStart ( double ) [virtual]
