vtkBlankStructuredGrid Class Reference

#include <vtkBlankStructuredGrid.h>

Inheritance diagram for vtkBlankStructuredGrid:

Inheritance graph
[legend]

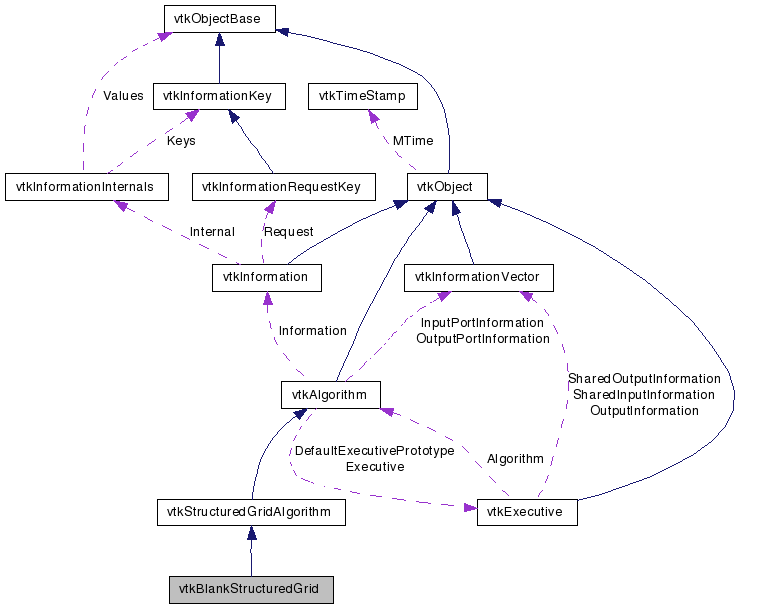

Collaboration diagram for vtkBlankStructuredGrid:

Collaboration graph
[legend]

List of all members.


Detailed Description

translate point attribute data into a blanking field

vtkBlankStructuredGrid is a filter that sets the blanking field in a vtkStructuredGrid dataset. The blanking field is set by examining a specified point attribute data array (e.g., scalars) and converting values in the data array to either a "1" (visible) or "0" (blanked) value in the blanking array. The values to be blanked are specified by giving a min/max range. All data values in the data array indicated and laying within the range specified (inclusive on both ends) are translated to a "off" blanking value.

See also:
vtkStructuredGrid
Tests:
vtkBlankStructuredGrid (Tests)

Definition at line 40 of file vtkBlankStructuredGrid.h.


Public Types

typedef vtkStructuredGridAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetMinBlankingValue (double)
virtual double GetMinBlankingValue ()
virtual void SetMaxBlankingValue (double)
virtual double GetMaxBlankingValue ()
virtual void SetArrayName (const char *)
virtual char * GetArrayName ()
virtual void SetArrayId (int)
virtual int GetArrayId ()
virtual void SetComponent (int)
virtual int GetComponent ()

Static Public Member Functions

static vtkBlankStructuredGridNew ()
static int IsTypeOf (const char *type)
static vtkBlankStructuredGridSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkBlankStructuredGrid ()
 ~vtkBlankStructuredGrid ()
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Protected Attributes

double MinBlankingValue
double MaxBlankingValue
char * ArrayName
int ArrayId
int Component

Member Typedef Documentation

Reimplemented from vtkStructuredGridAlgorithm.

Definition at line 44 of file vtkBlankStructuredGrid.h.


Constructor & Destructor Documentation

vtkBlankStructuredGrid::vtkBlankStructuredGrid (  )  [protected]

vtkBlankStructuredGrid::~vtkBlankStructuredGrid (  )  [protected]


Member Function Documentation

static vtkBlankStructuredGrid* vtkBlankStructuredGrid::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkStructuredGridAlgorithm.

virtual const char* vtkBlankStructuredGrid::GetClassName (  )  [virtual]

Reimplemented from vtkStructuredGridAlgorithm.

static int vtkBlankStructuredGrid::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkStructuredGridAlgorithm.

virtual int vtkBlankStructuredGrid::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkStructuredGridAlgorithm.

static vtkBlankStructuredGrid* vtkBlankStructuredGrid::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkStructuredGridAlgorithm.

void vtkBlankStructuredGrid::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkStructuredGridAlgorithm.

virtual void vtkBlankStructuredGrid::SetMinBlankingValue ( double   )  [virtual]

Specify the lower data value in the data array specified which will be converted into a "blank" (or off) value in the blanking array.

virtual double vtkBlankStructuredGrid::GetMinBlankingValue (  )  [virtual]

Specify the lower data value in the data array specified which will be converted into a "blank" (or off) value in the blanking array.

virtual void vtkBlankStructuredGrid::SetMaxBlankingValue ( double   )  [virtual]

Specify the upper data value in the data array specified which will be converted into a "blank" (or off) value in the blanking array.

virtual double vtkBlankStructuredGrid::GetMaxBlankingValue (  )  [virtual]

Specify the upper data value in the data array specified which will be converted into a "blank" (or off) value in the blanking array.

virtual void vtkBlankStructuredGrid::SetArrayName ( const char *   )  [virtual]

Specify the data array name to use to generate the blanking field. Alternatively, you can specify the array id. (If both are set, the array name takes precedence.)

virtual char* vtkBlankStructuredGrid::GetArrayName (  )  [virtual]

Specify the data array name to use to generate the blanking field. Alternatively, you can specify the array id. (If both are set, the array name takes precedence.)

virtual void vtkBlankStructuredGrid::SetArrayId ( int   )  [virtual]

Specify the data array id to use to generate the blanking field. Alternatively, you can specify the array name. (If both are set, the array name takes precedence.)

virtual int vtkBlankStructuredGrid::GetArrayId (  )  [virtual]

Specify the data array id to use to generate the blanking field. Alternatively, you can specify the array name. (If both are set, the array name takes precedence.)

virtual void vtkBlankStructuredGrid::SetComponent ( int   )  [virtual]

Specify the component in the data array to use to generate the blanking field.

virtual int vtkBlankStructuredGrid::GetComponent (  )  [virtual]

Specify the component in the data array to use to generate the blanking field.

virtual int vtkBlankStructuredGrid::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkStructuredGridAlgorithm.


Member Data Documentation

Definition at line 90 of file vtkBlankStructuredGrid.h.

Definition at line 91 of file vtkBlankStructuredGrid.h.

Definition at line 92 of file vtkBlankStructuredGrid.h.

Definition at line 93 of file vtkBlankStructuredGrid.h.

Definition at line 94 of file vtkBlankStructuredGrid.h.


The documentation for this class was generated from the following file:
