vtkBridgePointIteratorOne Class Reference

#include <vtkBridgePointIteratorOne.h>

Inheritance diagram for vtkBridgePointIteratorOne:

[legend]

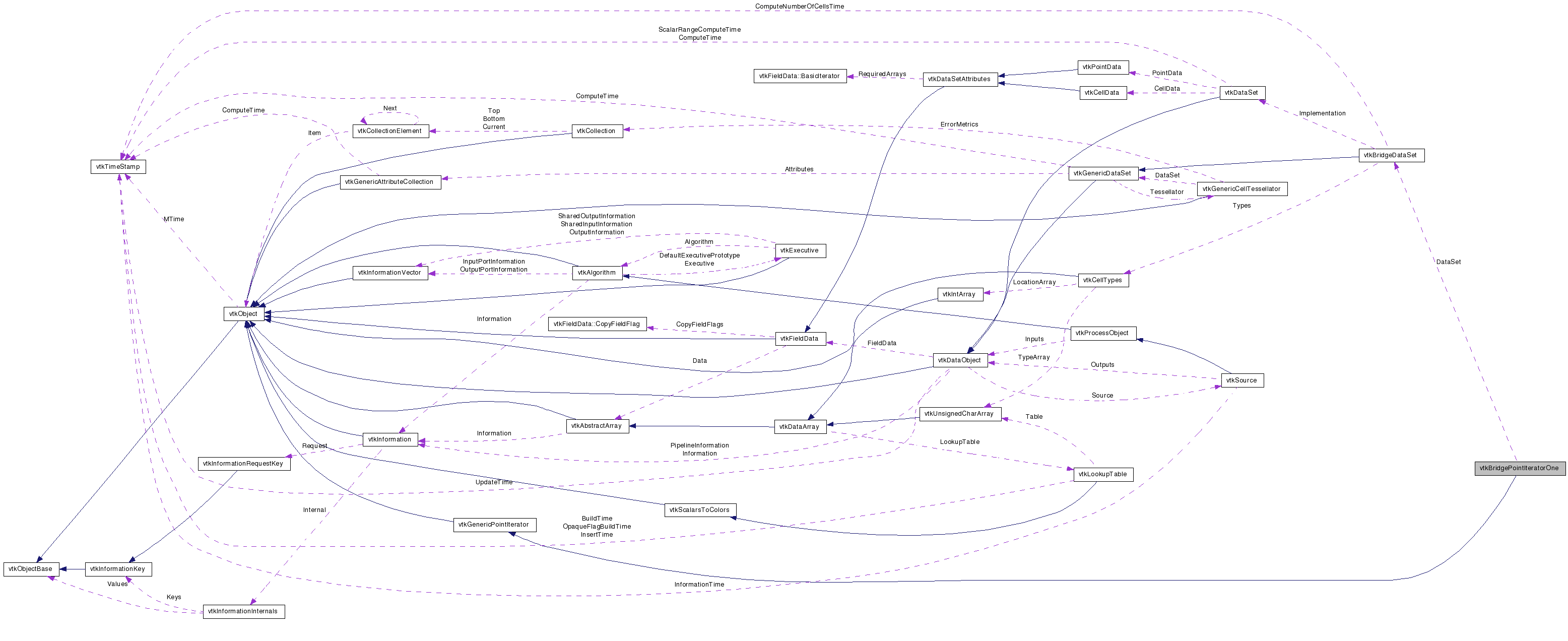

Collaboration diagram for vtkBridgePointIteratorOne:

[legend]

List of all members.

---

Detailed Description

Iterate over one point of a dataset.

See also:

vtkGenericPointIterator, vtkBridgeDataSet

Tests:

vtkBridgePointIteratorOne (Tests)

Definition at line 32 of file vtkBridgePointIteratorOne.h.

Public Types
typedef vtkGenericPointIterator	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	Begin ()
int	IsAtEnd ()
void	Next ()
double *	GetPosition ()
void	GetPosition (double x[3])
vtkIdType	GetId ()
void	InitWithOnePoint (vtkBridgeDataSet *ds, vtkIdType id)
Static Public Member Functions
static vtkBridgePointIteratorOne *	New ()
static int	IsTypeOf (const char *type)
static vtkBridgePointIteratorOne *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkBridgePointIteratorOne ()
virtual	~vtkBridgePointIteratorOne ()
Protected Attributes
vtkBridgeDataSet *	DataSet
vtkIdType	Id
int	cIsAtEnd

---

Member Typedef Documentation

typedef vtkGenericPointIterator vtkBridgePointIteratorOne::Superclass

Standard VTK construction and type macros.

Reimplemented from vtkGenericPointIterator.

Definition at line 36 of file vtkBridgePointIteratorOne.h.

---

Constructor & Destructor Documentation

vtkBridgePointIteratorOne::vtkBridgePointIteratorOne

(

)

[protected]

Default constructor.

virtual vtkBridgePointIteratorOne::~vtkBridgePointIteratorOne

(

)

[protected, virtual]

Destructor.

---

Member Function Documentation

static vtkBridgePointIteratorOne* vtkBridgePointIteratorOne::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkBridgePointIteratorOne::GetClassName

(

)

[virtual]

Standard VTK construction and type macros.

Reimplemented from vtkGenericPointIterator.

static int vtkBridgePointIteratorOne::IsTypeOf

(

const char *

type

)

[static]

Standard VTK construction and type macros.

Reimplemented from vtkGenericPointIterator.

virtual int vtkBridgePointIteratorOne::IsA

(

const char *

type

)

[virtual]

Standard VTK construction and type macros.

Reimplemented from vtkGenericPointIterator.

static vtkBridgePointIteratorOne* vtkBridgePointIteratorOne::SafeDownCast

(

vtkObject *

o

)

[static]

Standard VTK construction and type macros.

Reimplemented from vtkGenericPointIterator.

void vtkBridgePointIteratorOne::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Standard VTK construction and type macros.

Reimplemented from vtkGenericPointIterator.

void vtkBridgePointIteratorOne::Begin

(

)

[virtual]

Move iterator to first position if any (loop initialization).

Implements vtkGenericPointIterator.

int vtkBridgePointIteratorOne::IsAtEnd

(

)

[virtual]

Is there no point at iterator position? (exit condition).

Implements vtkGenericPointIterator.

void vtkBridgePointIteratorOne::Next

(

)

[virtual]

Move iterator to next position. (loop progression).

Precondition:

not_off: !IsAtEnd()

Implements vtkGenericPointIterator.

double* vtkBridgePointIteratorOne::GetPosition

(

)

[virtual]

Point at iterator position.

Precondition:

not_off: !IsAtEnd()

Postcondition:

result_exists: result!=0

Implements vtkGenericPointIterator.

void vtkBridgePointIteratorOne::GetPosition

(

double

x[3]

)

[virtual]

Point at iterator position.

Precondition:

not_off: !IsAtEnd()

x_exists: x!=0

Implements vtkGenericPointIterator.

vtkIdType vtkBridgePointIteratorOne::GetId

(

)

[virtual]

Unique identifier for the point, could be non-contiguous

Precondition:

not_off: !IsAtEnd()

Implements vtkGenericPointIterator.

void vtkBridgePointIteratorOne::InitWithOnePoint	(	vtkBridgeDataSet *	ds,
		vtkIdType	id
	)

Used internally by vtkBridgeDataSet. Iterate over one point of identifier `id' on dataset `ds'.

Precondition:

ds_can_be_null: ds!=0 || ds==0

valid_id: vtkImplies(ds!=0,(id>=0)&&(id<=ds->GetNumberOfCells()))

---

Member Data Documentation

vtkBridgeDataSet* vtkBridgePointIteratorOne::DataSet [protected]

Definition at line 77 of file vtkBridgePointIteratorOne.h.

vtkIdType vtkBridgePointIteratorOne::Id [protected]

Definition at line 78 of file vtkBridgePointIteratorOne.h.

int vtkBridgePointIteratorOne::cIsAtEnd [protected]

Definition at line 79 of file vtkBridgePointIteratorOne.h.

---

The documentation for this class was generated from the following file:

• dox/GenericFiltering/Testing/Cxx/vtkBridgePointIteratorOne.h
