vtkCellPicker Class Reference

#include <vtkCellPicker.h>

Inheritance diagram for vtkCellPicker:

[legend]

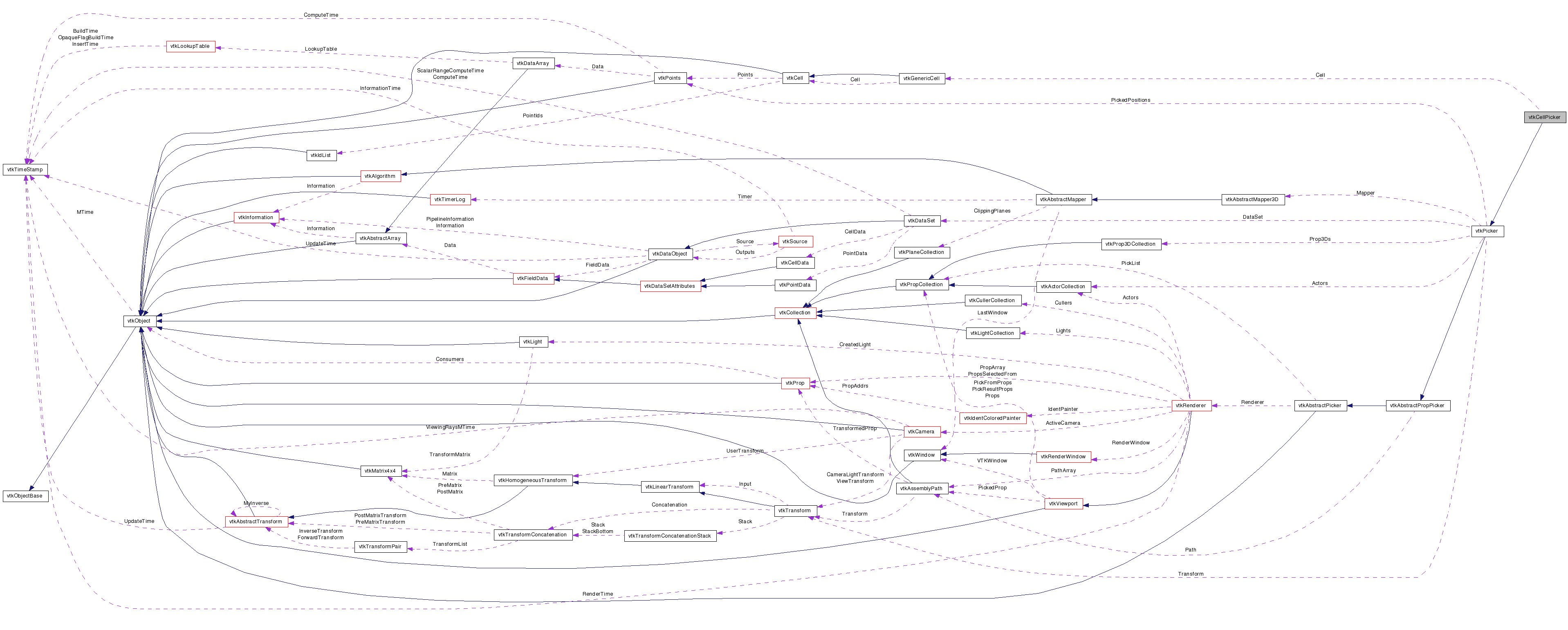

Collaboration diagram for vtkCellPicker:

[legend]

List of all members.

---

Detailed Description

select a cell by shooting a ray into graphics window

vtkCellPicker is used to select a cell by shooting a ray into graphics window and intersecting with actor's defining geometry - specifically its cells. Beside returning coordinates, actor and mapper, vtkCellPicker returns the id of the closest cell within the tolerance along the pick ray, and the dataset that was picked.

See also:

vtkPicker vtkPointPicker

Examples:

vtkCellPicker (Examples)

Tests:

vtkCellPicker (Tests)

Definition at line 40 of file vtkCellPicker.h.

Public Types
typedef vtkPicker	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual vtkIdType	GetCellId ()
virtual int	GetSubId ()
virtual double *	GetPCoords ()
virtual void	GetPCoords (double data[3])
Static Public Member Functions
static vtkCellPicker *	New ()
static int	IsTypeOf (const char *type)
static vtkCellPicker *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkCellPicker ()
	~vtkCellPicker ()
virtual double	IntersectWithLine (double p1[3], double p2[3], double tol, vtkAssemblyPath *path, vtkProp3D *p, vtkAbstractMapper3D *m)
void	Initialize ()
Protected Attributes
vtkIdType	CellId
int	SubId
double	PCoords [3]

---

Member Typedef Documentation

typedef vtkPicker vtkCellPicker::Superclass

Reimplemented from vtkPicker.

Definition at line 44 of file vtkCellPicker.h.

---

Constructor & Destructor Documentation

vtkCellPicker::vtkCellPicker

(

)

[protected]

vtkCellPicker::~vtkCellPicker

(

)

[protected]

---

Member Function Documentation

static vtkCellPicker* vtkCellPicker::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkPicker.

virtual const char* vtkCellPicker::GetClassName

(

)

[virtual]

Reimplemented from vtkPicker.

static int vtkCellPicker::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPicker.

virtual int vtkCellPicker::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPicker.

static vtkCellPicker* vtkCellPicker::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkPicker.

void vtkCellPicker::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPicker.

virtual vtkIdType vtkCellPicker::GetCellId

(

)

[virtual]

Get the id of the picked cell. If CellId = -1, nothing was picked.

virtual int vtkCellPicker::GetSubId

(

)

[virtual]

Get the subId of the picked cell. If SubId = -1, nothing was picked.

virtual double* vtkCellPicker::GetPCoords

(

)

[virtual]

Get the parametric coordinates of the picked cell. Only valid if pick was made.

virtual void vtkCellPicker::GetPCoords

(

double

data[3]

)

[virtual]

Get the parametric coordinates of the picked cell. Only valid if pick was made.

virtual double vtkCellPicker::IntersectWithLine	(	double	p1[3],
		double	p2[3],
		double	tol,
		vtkAssemblyPath *	path,
		vtkProp3D *	p,
		vtkAbstractMapper3D *	m
	)			[protected, virtual]

Reimplemented from vtkPicker.

void vtkCellPicker::Initialize

(

)

[protected, virtual]

Reimplemented from vtkPicker.

---

Member Data Documentation

vtkIdType vtkCellPicker::CellId [protected]

Definition at line 67 of file vtkCellPicker.h.

int vtkCellPicker::SubId [protected]

Definition at line 68 of file vtkCellPicker.h.

double vtkCellPicker::PCoords[3] [protected]

Definition at line 69 of file vtkCellPicker.h.

---

The documentation for this class was generated from the following file:

• dox/Rendering/vtkCellPicker.h
