vtkContinuousValueWidget Class Reference

#include <vtkContinuousValueWidget.h>

Inheritance diagram for vtkContinuousValueWidget:

Inheritance graph
[legend]

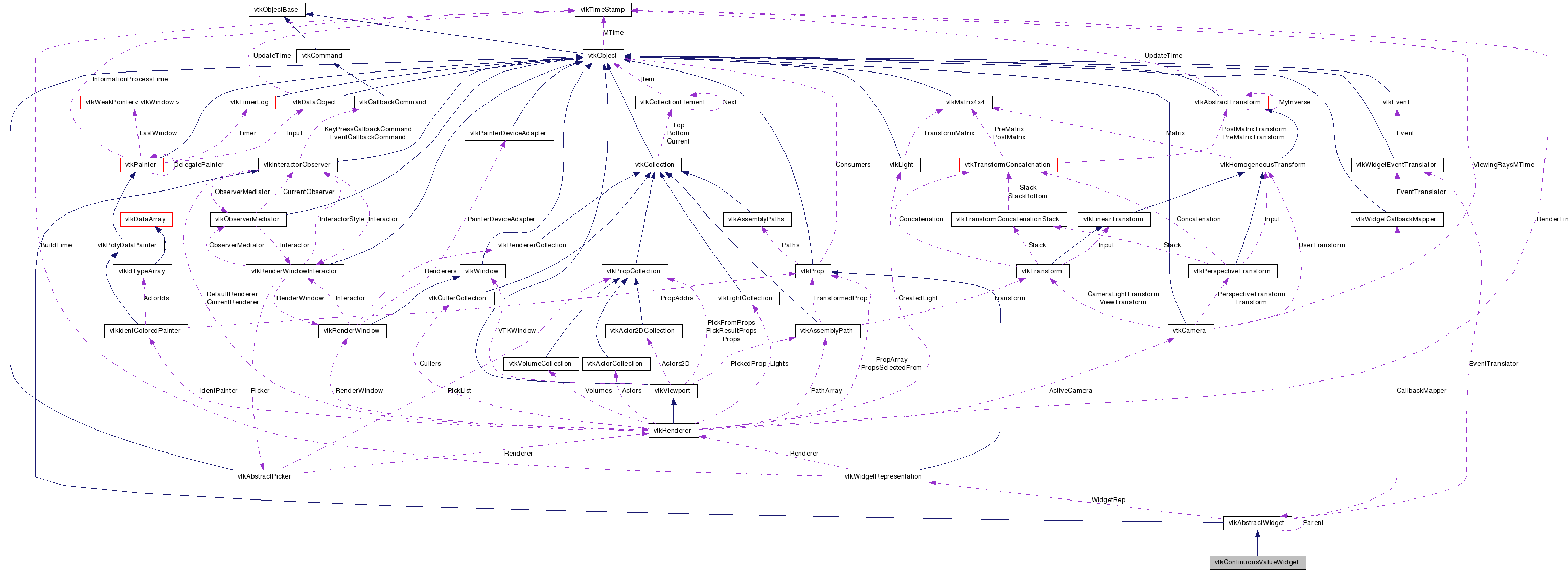

Collaboration diagram for vtkContinuousValueWidget:

Collaboration graph
[legend]

List of all members.


Detailed Description

set a value by manipulating something

The vtkContinuousValueWidget is used to adjust a scalar value in an application. Note that the actual appearance of the widget depends on the specific representation for the widget.

To use this widget, set the widget representation. (the details may vary depending on the particulars of the representation).

Event Bindings:
By default, the widget responds to the following VTK events (i.e., it watches the vtkRenderWindowInteractor for these events):
 If the slider bead is selected:
   LeftButtonPressEvent - select slider
   LeftButtonReleaseEvent - release slider
   MouseMoveEvent - move slider

Event Bindings:
Note that the event bindings described above can be changed using this class's vtkWidgetEventTranslator. This class translates VTK events into the vtkContinuousValueWidget's widget events:
   vtkWidgetEvent::Select -- some part of the widget has been selected
   vtkWidgetEvent::EndSelect -- the selection process has completed
   vtkWidgetEvent::Move -- a request for slider motion has been invoked

Event Bindings:
In turn, when these widget events are processed, the vtkContinuousValueWidget invokes the following VTK events on itself (which observers can listen for):
   vtkCommand::StartInteractionEvent (on vtkWidgetEvent::Select)
   vtkCommand::EndInteractionEvent (on vtkWidgetEvent::EndSelect)
   vtkCommand::InteractionEvent (on vtkWidgetEvent::Move)

Events:
vtkCommand::EndInteractionEvent vtkCommand::InteractionEvent vtkCommand::StartInteractionEvent

Definition at line 74 of file vtkContinuousValueWidget.h.

typedef vtkAbstractWidget Superclass
virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
static int IsTypeOf (const char *type)
static vtkContinuousValueWidgetSafeDownCast (vtkObject *o)

Public Member Functions

void SetRepresentation (vtkContinuousValueWidgetRepresentation *r)
double GetValue ()
void SetValue (double v)

Protected Types

enum  _WidgetState { Start = 0, Highlighting, Adjusting }

Protected Member Functions

 vtkContinuousValueWidget ()
 ~vtkContinuousValueWidget ()

Static Protected Member Functions

static void SelectAction (vtkAbstractWidget *)
static void EndSelectAction (vtkAbstractWidget *)
static void MoveAction (vtkAbstractWidget *)

Protected Attributes

int WidgetState
double Value

Member Typedef Documentation

Standard macros.

Reimplemented from vtkAbstractWidget.

Definition at line 79 of file vtkContinuousValueWidget.h.


Member Enumeration Documentation

Enumerator:
Start
Highlighting
Adjusting

Definition at line 109 of file vtkContinuousValueWidget.h.


Constructor & Destructor Documentation

vtkContinuousValueWidget::vtkContinuousValueWidget (  )  [protected]

vtkContinuousValueWidget::~vtkContinuousValueWidget (  )  [inline, protected]

Definition at line 100 of file vtkContinuousValueWidget.h.


Member Function Documentation

virtual const char* vtkContinuousValueWidget::GetClassName (  )  [virtual]

Standard macros.

Reimplemented from vtkAbstractWidget.

static int vtkContinuousValueWidget::IsTypeOf ( const char *  type  )  [static]

Standard macros.

Reimplemented from vtkAbstractWidget.

virtual int vtkContinuousValueWidget::IsA ( const char *  type  )  [virtual]

Standard macros.

Reimplemented from vtkAbstractWidget.

static vtkContinuousValueWidget* vtkContinuousValueWidget::SafeDownCast ( vtkObject o  )  [static]

Standard macros.

Reimplemented from vtkAbstractWidget.

void vtkContinuousValueWidget::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Standard macros.

Reimplemented from vtkAbstractWidget.

void vtkContinuousValueWidget::SetRepresentation ( vtkContinuousValueWidgetRepresentation r  )  [inline]

Specify an instance of vtkWidgetRepresentation used to represent this widget in the scene. Note that the representation is a subclass of vtkProp so it can be added to the renderer independent of the widget.

Definition at line 87 of file vtkContinuousValueWidget.h.

double vtkContinuousValueWidget::GetValue (  )

Get the value for this widget.

void vtkContinuousValueWidget::SetValue ( double  v  )

Get the value for this widget.

static void vtkContinuousValueWidget::SelectAction ( vtkAbstractWidget  )  [static, protected]

static void vtkContinuousValueWidget::EndSelectAction ( vtkAbstractWidget  )  [static, protected]

static void vtkContinuousValueWidget::MoveAction ( vtkAbstractWidget  )  [static, protected]


Member Data Documentation

Definition at line 108 of file vtkContinuousValueWidget.h.

double vtkContinuousValueWidget::Value [protected]

Definition at line 117 of file vtkContinuousValueWidget.h.


The documentation for this class was generated from the following file:
