vtkCursor3D Class Reference

#include <vtkCursor3D.h>

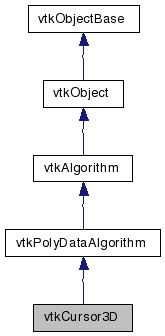

Inheritance diagram for vtkCursor3D:

Inheritance graph
[legend]

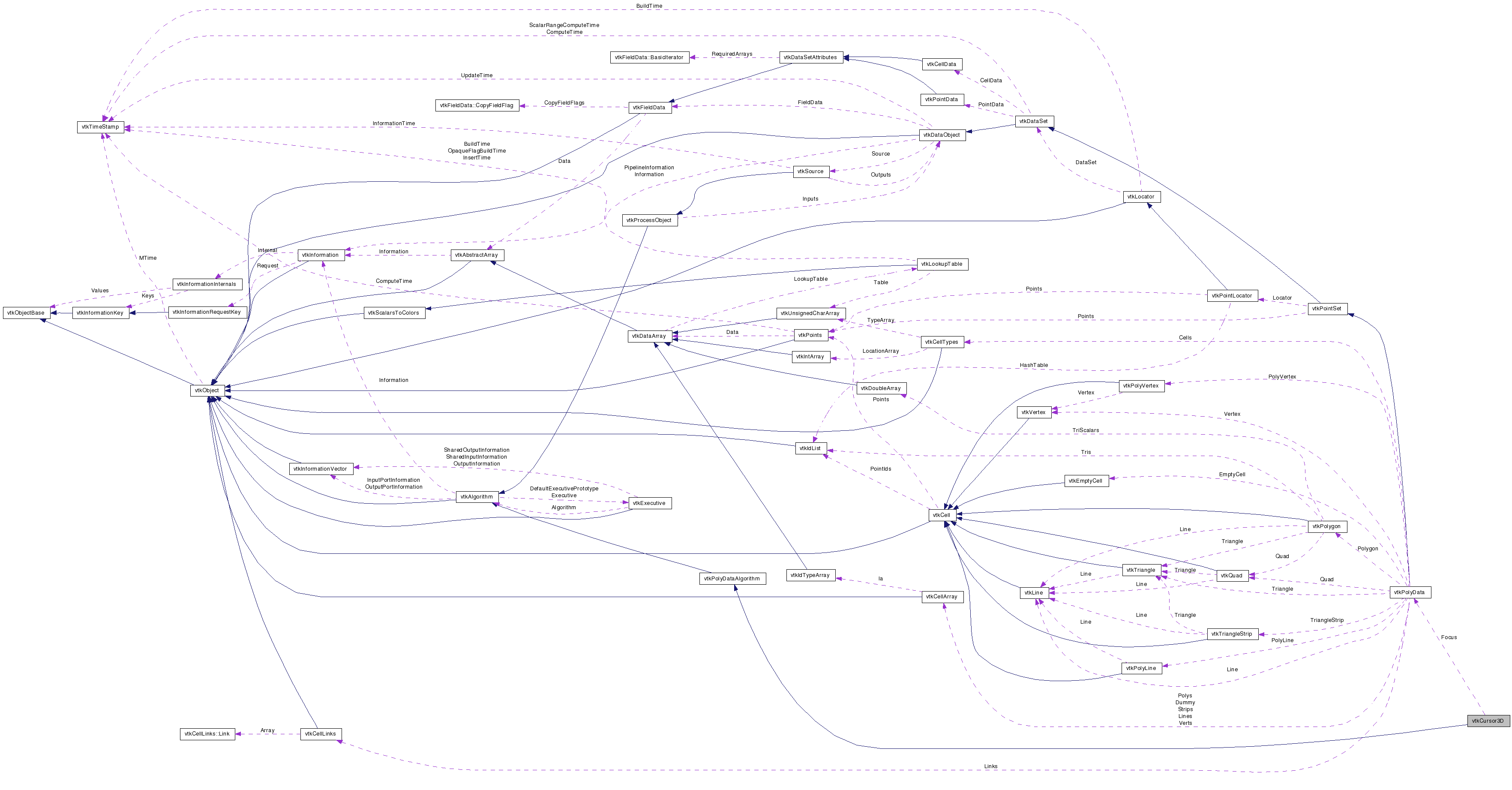

Collaboration diagram for vtkCursor3D:

Collaboration graph
[legend]

List of all members.


Detailed Description

generate a 3D cursor representation

vtkCursor3D is an object that generates a 3D representation of a cursor. The cursor consists of a wireframe bounding box, three intersecting axes lines that meet at the cursor focus, and "shadows" or projections of the axes against the sides of the bounding box. Each of these components can be turned on/off.

This filter generates two output datasets. The first (Output) is just the geometric representation of the cursor. The second (Focus) is a single point at the focal point.

Tests:
vtkCursor3D (Tests)

Definition at line 37 of file vtkCursor3D.h.


Public Types

typedef vtkPolyDataAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
vtkPolyDataGetFocus ()
void SetModelBounds (double xmin, double xmax, double ymin, double ymax, double zmin, double zmax)
void SetModelBounds (double bounds[6])
virtual double * GetModelBounds ()
virtual void GetModelBounds (double data[6])
void SetFocalPoint (double x[3])
void SetFocalPoint (double x, double y, double z)
virtual double * GetFocalPoint ()
virtual void GetFocalPoint (double data[3])
virtual void SetOutline (int)
virtual int GetOutline ()
virtual void OutlineOn ()
virtual void OutlineOff ()
virtual void SetAxes (int)
virtual int GetAxes ()
virtual void AxesOn ()
virtual void AxesOff ()
virtual void SetXShadows (int)
virtual int GetXShadows ()
virtual void XShadowsOn ()
virtual void XShadowsOff ()
virtual void SetYShadows (int)
virtual int GetYShadows ()
virtual void YShadowsOn ()
virtual void YShadowsOff ()
virtual void SetZShadows (int)
virtual int GetZShadows ()
virtual void ZShadowsOn ()
virtual void ZShadowsOff ()
virtual void SetTranslationMode (int)
virtual int GetTranslationMode ()
virtual void TranslationModeOn ()
virtual void TranslationModeOff ()
virtual void SetWrap (int)
virtual int GetWrap ()
virtual void WrapOn ()
virtual void WrapOff ()
void AllOn ()
void AllOff ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkCursor3DSafeDownCast (vtkObject *o)
static vtkCursor3DNew ()

Protected Member Functions

 vtkCursor3D ()
 ~vtkCursor3D ()
int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Protected Attributes

vtkPolyDataFocus
double ModelBounds [6]
double FocalPoint [3]
int Outline
int Axes
int XShadows
int YShadows
int ZShadows
int TranslationMode
int Wrap

Member Typedef Documentation

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 40 of file vtkCursor3D.h.


Constructor & Destructor Documentation

vtkCursor3D::vtkCursor3D (  )  [protected]

vtkCursor3D::~vtkCursor3D (  )  [protected]


Member Function Documentation

virtual const char* vtkCursor3D::GetClassName (  )  [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkCursor3D::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkCursor3D::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkCursor3D* vtkCursor3D::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkPolyDataAlgorithm.

void vtkCursor3D::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

static vtkCursor3D* vtkCursor3D::New (  )  [static]

Construct with model bounds = (-1,1,-1,1,-1,1), focal point = (0,0,0), all parts of cursor visible, and wrapping off.

Reimplemented from vtkPolyDataAlgorithm.

void vtkCursor3D::SetModelBounds ( double  xmin,
double  xmax,
double  ymin,
double  ymax,
double  zmin,
double  zmax
)

Set / get the boundary of the 3D cursor.

void vtkCursor3D::SetModelBounds ( double  bounds[6]  )

Set / get the boundary of the 3D cursor.

virtual double* vtkCursor3D::GetModelBounds (  )  [virtual]

Set / get the boundary of the 3D cursor.

virtual void vtkCursor3D::GetModelBounds ( double  data[6]  )  [virtual]

Set / get the boundary of the 3D cursor.

void vtkCursor3D::SetFocalPoint ( double  x[3]  )

Set/Get the position of cursor focus. If translation mode is on, then the entire cursor (including bounding box, cursor, and shadows) is translated. Otherwise, the focal point will either be clamped to the bounding box, or wrapped, if Wrap is on. (Note: this behavior requires that the bounding box is set prior to the focal point.)

void vtkCursor3D::SetFocalPoint ( double  x,
double  y,
double  z
) [inline]

Set/Get the position of cursor focus. If translation mode is on, then the entire cursor (including bounding box, cursor, and shadows) is translated. Otherwise, the focal point will either be clamped to the bounding box, or wrapped, if Wrap is on. (Note: this behavior requires that the bounding box is set prior to the focal point.)

Definition at line 62 of file vtkCursor3D.h.

virtual double* vtkCursor3D::GetFocalPoint (  )  [virtual]

Set/Get the position of cursor focus. If translation mode is on, then the entire cursor (including bounding box, cursor, and shadows) is translated. Otherwise, the focal point will either be clamped to the bounding box, or wrapped, if Wrap is on. (Note: this behavior requires that the bounding box is set prior to the focal point.)

virtual void vtkCursor3D::GetFocalPoint ( double  data[3]  )  [virtual]

Set/Get the position of cursor focus. If translation mode is on, then the entire cursor (including bounding box, cursor, and shadows) is translated. Otherwise, the focal point will either be clamped to the bounding box, or wrapped, if Wrap is on. (Note: this behavior requires that the bounding box is set prior to the focal point.)

virtual void vtkCursor3D::SetOutline ( int   )  [virtual]

Turn on/off the wireframe bounding box.

virtual int vtkCursor3D::GetOutline (  )  [virtual]

Turn on/off the wireframe bounding box.

virtual void vtkCursor3D::OutlineOn (  )  [virtual]

Turn on/off the wireframe bounding box.

virtual void vtkCursor3D::OutlineOff (  )  [virtual]

Turn on/off the wireframe bounding box.

virtual void vtkCursor3D::SetAxes ( int   )  [virtual]

Turn on/off the wireframe axes.

virtual int vtkCursor3D::GetAxes (  )  [virtual]

Turn on/off the wireframe axes.

virtual void vtkCursor3D::AxesOn (  )  [virtual]

Turn on/off the wireframe axes.

virtual void vtkCursor3D::AxesOff (  )  [virtual]

Turn on/off the wireframe axes.

virtual void vtkCursor3D::SetXShadows ( int   )  [virtual]

Turn on/off the wireframe x-shadows.

virtual int vtkCursor3D::GetXShadows (  )  [virtual]

Turn on/off the wireframe x-shadows.

virtual void vtkCursor3D::XShadowsOn (  )  [virtual]

Turn on/off the wireframe x-shadows.

virtual void vtkCursor3D::XShadowsOff (  )  [virtual]

Turn on/off the wireframe x-shadows.

virtual void vtkCursor3D::SetYShadows ( int   )  [virtual]

Turn on/off the wireframe y-shadows.

virtual int vtkCursor3D::GetYShadows (  )  [virtual]

Turn on/off the wireframe y-shadows.

virtual void vtkCursor3D::YShadowsOn (  )  [virtual]

Turn on/off the wireframe y-shadows.

virtual void vtkCursor3D::YShadowsOff (  )  [virtual]

Turn on/off the wireframe y-shadows.

virtual void vtkCursor3D::SetZShadows ( int   )  [virtual]

Turn on/off the wireframe z-shadows.

virtual int vtkCursor3D::GetZShadows (  )  [virtual]

Turn on/off the wireframe z-shadows.

virtual void vtkCursor3D::ZShadowsOn (  )  [virtual]

Turn on/off the wireframe z-shadows.

virtual void vtkCursor3D::ZShadowsOff (  )  [virtual]

Turn on/off the wireframe z-shadows.

virtual void vtkCursor3D::SetTranslationMode ( int   )  [virtual]

Enable/disable the translation mode. If on, changes in cursor position cause the entire widget to translate along with the cursor. By default, translation mode is off.

virtual int vtkCursor3D::GetTranslationMode (  )  [virtual]

Enable/disable the translation mode. If on, changes in cursor position cause the entire widget to translate along with the cursor. By default, translation mode is off.

virtual void vtkCursor3D::TranslationModeOn (  )  [virtual]

Enable/disable the translation mode. If on, changes in cursor position cause the entire widget to translate along with the cursor. By default, translation mode is off.

virtual void vtkCursor3D::TranslationModeOff (  )  [virtual]

Enable/disable the translation mode. If on, changes in cursor position cause the entire widget to translate along with the cursor. By default, translation mode is off.

virtual void vtkCursor3D::SetWrap ( int   )  [virtual]

Turn on/off cursor wrapping. If the cursor focus moves outside the specified bounds, the cursor will either be restrained against the nearest "wall" (Wrap=off), or it will wrap around (Wrap=on).

virtual int vtkCursor3D::GetWrap (  )  [virtual]

Turn on/off cursor wrapping. If the cursor focus moves outside the specified bounds, the cursor will either be restrained against the nearest "wall" (Wrap=off), or it will wrap around (Wrap=on).

virtual void vtkCursor3D::WrapOn (  )  [virtual]

Turn on/off cursor wrapping. If the cursor focus moves outside the specified bounds, the cursor will either be restrained against the nearest "wall" (Wrap=off), or it will wrap around (Wrap=on).

virtual void vtkCursor3D::WrapOff (  )  [virtual]

Turn on/off cursor wrapping. If the cursor focus moves outside the specified bounds, the cursor will either be restrained against the nearest "wall" (Wrap=off), or it will wrap around (Wrap=on).

vtkPolyData* vtkCursor3D::GetFocus (  )  [inline]

Get the focus for this filter.

Definition at line 125 of file vtkCursor3D.h.

void vtkCursor3D::AllOn (  )

Turn every part of the 3D cursor on or off.

void vtkCursor3D::AllOff (  )

Turn every part of the 3D cursor on or off.

int vtkCursor3D::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.


Member Data Documentation

Definition at line 139 of file vtkCursor3D.h.

double vtkCursor3D::ModelBounds[6] [protected]

Definition at line 140 of file vtkCursor3D.h.

double vtkCursor3D::FocalPoint[3] [protected]

Definition at line 141 of file vtkCursor3D.h.

int vtkCursor3D::Outline [protected]

Definition at line 142 of file vtkCursor3D.h.

int vtkCursor3D::Axes [protected]

Definition at line 143 of file vtkCursor3D.h.

int vtkCursor3D::XShadows [protected]

Definition at line 144 of file vtkCursor3D.h.

int vtkCursor3D::YShadows [protected]

Definition at line 145 of file vtkCursor3D.h.

int vtkCursor3D::ZShadows [protected]

Definition at line 146 of file vtkCursor3D.h.

Definition at line 147 of file vtkCursor3D.h.

int vtkCursor3D::Wrap [protected]

Definition at line 148 of file vtkCursor3D.h.


The documentation for this class was generated from the following file:
