vtkEllipticalButtonSource Class Reference

#include <vtkEllipticalButtonSource.h>

Inheritance diagram for vtkEllipticalButtonSource:

[legend]

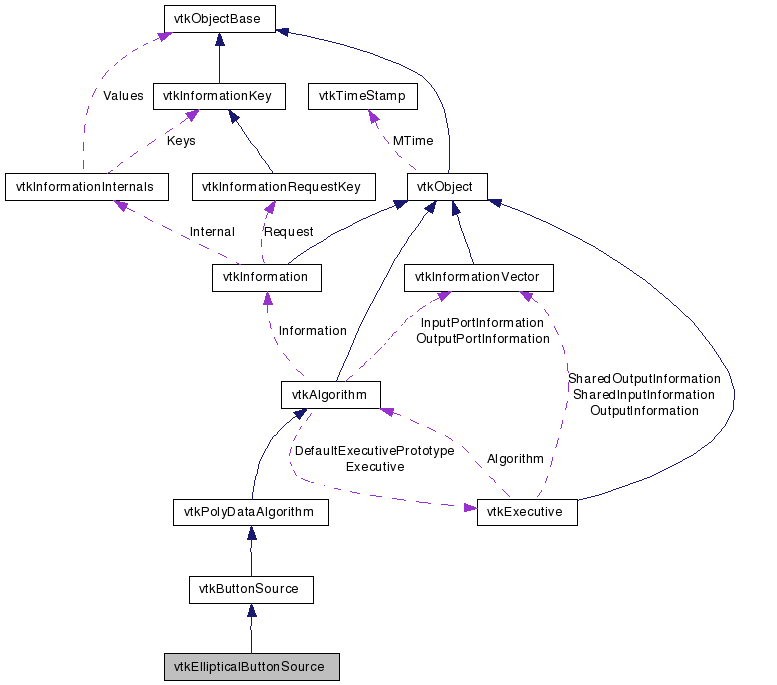

Collaboration diagram for vtkEllipticalButtonSource:

[legend]

List of all members.

Detailed Description

create a ellipsoidal-shaped button

vtkEllipticalButtonSource creates a ellipsoidal shaped button with texture coordinates suitable for application of a texture map. This provides a way to make nice looking 3D buttons. The buttons are represented as vtkPolyData that includes texture coordinates and normals. The button lies in the x-y plane.

To use this class you must define the major and minor axes lengths of an ellipsoid (expressed as width (x), height (y) and depth (z)). The button has a rectangular mesh region in the center with texture coordinates that range smoothly from (0,1). (This flat region is called the texture region.) The outer, curved portion of the button (called the shoulder) has texture coordinates set to a user specified value (by default (0,0). (This results in coloring the button curve the same color as the (s,t) location of the texture map.) The resolution in the radial direction, the texture region, and the shoulder region must also be set. The button can be moved by specifying an origin.

See also:: vtkButtonSource vtkRectangularButtonSource

Tests:: vtkEllipticalButtonSource (Tests)

Definition at line 51 of file vtkEllipticalButtonSource.h.


Public Types
typedef vtkButtonSource	Superclass
Public Member Functions
void	PrintSelf (ostream &os, vtkIndent indent)
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)

virtual void	SetWidth (double)
virtual double	GetWidth ()

virtual void	SetHeight (double)
virtual double	GetHeight ()

virtual void	SetDepth (double)
virtual double	GetDepth ()

virtual void	SetCircumferentialResolution (int)
virtual int	GetCircumferentialResolution ()

virtual void	SetTextureResolution (int)
virtual int	GetTextureResolution ()

virtual void	SetShoulderResolution (int)
virtual int	GetShoulderResolution ()

virtual void	SetRadialRatio (double)
virtual double	GetRadialRatio ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkEllipticalButtonSource *	SafeDownCast (vtkObject *o)
static vtkEllipticalButtonSource *	New ()
Protected Member Functions
	vtkEllipticalButtonSource ()
	~vtkEllipticalButtonSource ()
int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
Protected Attributes
double	Width
double	Height
double	Depth
int	CircumferentialResolution
int	TextureResolution
int	ShoulderResolution
double	RadialRatio

Member Typedef Documentation

typedef vtkButtonSource vtkEllipticalButtonSource::Superclass

Reimplemented from vtkButtonSource.

Definition at line 55 of file vtkEllipticalButtonSource.h.

Constructor & Destructor Documentation

vtkEllipticalButtonSource::vtkEllipticalButtonSource ( ) [protected]

vtkEllipticalButtonSource::~vtkEllipticalButtonSource ( ) [inline, protected]

Definition at line 113 of file vtkEllipticalButtonSource.h.

Member Function Documentation

void vtkEllipticalButtonSource::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkButtonSource.

virtual const char* vtkEllipticalButtonSource::GetClassName ( ) [virtual]

Reimplemented from vtkButtonSource.

static int vtkEllipticalButtonSource::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkButtonSource.

virtual int vtkEllipticalButtonSource::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkButtonSource.

static vtkEllipticalButtonSource* vtkEllipticalButtonSource::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkButtonSource.

static vtkEllipticalButtonSource* vtkEllipticalButtonSource::New ( ) [static]

Construct a circular button with depth 10% of its height.

Reimplemented from vtkPolyDataAlgorithm.

virtual void vtkEllipticalButtonSource::SetWidth ( double ) [virtual]

Set/Get the width of the button (the x-ellipsoid axis length * 2).

virtual double vtkEllipticalButtonSource::GetWidth ( ) [virtual]

Set/Get the width of the button (the x-ellipsoid axis length * 2).

virtual void vtkEllipticalButtonSource::SetHeight ( double ) [virtual]

Set/Get the height of the button (the y-ellipsoid axis length * 2).

virtual double vtkEllipticalButtonSource::GetHeight ( ) [virtual]

Set/Get the height of the button (the y-ellipsoid axis length * 2).

virtual void vtkEllipticalButtonSource::SetDepth ( double ) [virtual]

Set/Get the depth of the button (the z-eliipsoid axis length).

virtual double vtkEllipticalButtonSource::GetDepth ( ) [virtual]

Set/Get the depth of the button (the z-eliipsoid axis length).

virtual void vtkEllipticalButtonSource::SetCircumferentialResolution ( int ) [virtual]

Specify the resolution of the button in the circumferential direction.

virtual int vtkEllipticalButtonSource::GetCircumferentialResolution ( ) [virtual]

Specify the resolution of the button in the circumferential direction.

virtual void vtkEllipticalButtonSource::SetTextureResolution ( int ) [virtual]

Specify the resolution of the texture in the radial direction in the texture region.

virtual int vtkEllipticalButtonSource::GetTextureResolution ( ) [virtual]

Specify the resolution of the texture in the radial direction in the texture region.

virtual void vtkEllipticalButtonSource::SetShoulderResolution ( int ) [virtual]

Specify the resolution of the texture in the radial direction in the shoulder region.

virtual int vtkEllipticalButtonSource::GetShoulderResolution ( ) [virtual]

Specify the resolution of the texture in the radial direction in the shoulder region.

virtual void vtkEllipticalButtonSource::SetRadialRatio ( double ) [virtual]

Set/Get the radial ratio. This is the measure of the radius of the outer ellipsoid to the inner ellipsoid of the button. The outer ellipsoid is the boundary of the button defined by the height and width. The inner ellipsoid circumscribes the texture region. Larger RadialRatio's cause the button to be more rounded (and the texture region to be smaller); smaller ratios produce sharply curved shoulders with a larger texture region.

virtual double vtkEllipticalButtonSource::GetRadialRatio ( ) [virtual]

Set/Get the radial ratio. This is the measure of the radius of the outer ellipsoid to the inner ellipsoid of the button. The outer ellipsoid is the boundary of the button defined by the height and width. The inner ellipsoid circumscribes the texture region. Larger RadialRatio's cause the button to be more rounded (and the texture region to be smaller); smaller ratios produce sharply curved shoulders with a larger texture region.

int vtkEllipticalButtonSource::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			`[protected, virtual]`
