vtkExtractGeometry Class Reference

#include <vtkExtractGeometry.h>

Inheritance diagram for vtkExtractGeometry:

Inheritance graph
[legend]

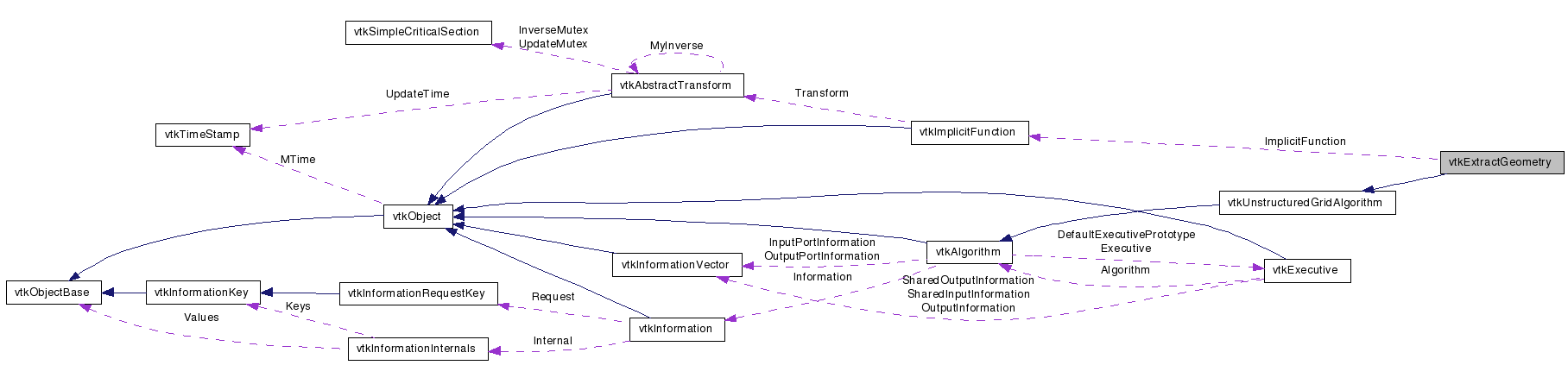

Collaboration diagram for vtkExtractGeometry:

Collaboration graph
[legend]

List of all members.


Detailed Description

extract cells that lie either entirely inside or outside of a specified implicit function

vtkExtractGeometry extracts from its input dataset all cells that are either completely inside or outside of a specified implicit function. Any type of dataset can be input to this filter. On output the filter generates an unstructured grid.

To use this filter you must specify an implicit function. You must also specify whethter to extract cells lying inside or outside of the implicit function. (The inside of an implicit function is the negative values region.) An option exists to extract cells that are neither inside or outside (i.e., boundary).

A more efficient version of this filter is available for vtkPolyData input. See vtkExtractPolyDataGeometry.

See also:
vtkExtractPolyDataGeometry vtkGeometryFilter vtkExtractVOI
Examples:
vtkExtractGeometry (Examples)
Tests:
vtkExtractGeometry (Tests)

Definition at line 50 of file vtkExtractGeometry.h.


Public Types

typedef
vtkUnstructuredGridAlgorithm
Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
unsigned long GetMTime ()
virtual void SetImplicitFunction (vtkImplicitFunction *)
virtual vtkImplicitFunctionGetImplicitFunction ()
virtual void SetExtractInside (int)
virtual int GetExtractInside ()
virtual void ExtractInsideOn ()
virtual void ExtractInsideOff ()
virtual void SetExtractBoundaryCells (int)
virtual int GetExtractBoundaryCells ()
virtual void ExtractBoundaryCellsOn ()
virtual void ExtractBoundaryCellsOff ()
virtual void SetExtractOnlyBoundaryCells (int)
virtual int GetExtractOnlyBoundaryCells ()
virtual void ExtractOnlyBoundaryCellsOn ()
virtual void ExtractOnlyBoundaryCellsOff ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkExtractGeometrySafeDownCast (vtkObject *o)
static vtkExtractGeometryNew ()

Protected Member Functions

 vtkExtractGeometry (vtkImplicitFunction *f=NULL)
 ~vtkExtractGeometry ()
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int FillInputPortInformation (int port, vtkInformation *info)

Protected Attributes

vtkImplicitFunctionImplicitFunction
int ExtractInside
int ExtractBoundaryCells
int ExtractOnlyBoundaryCells

Member Typedef Documentation

Reimplemented from vtkUnstructuredGridAlgorithm.

Definition at line 53 of file vtkExtractGeometry.h.


Constructor & Destructor Documentation

vtkExtractGeometry::vtkExtractGeometry ( vtkImplicitFunction f = NULL  )  [protected]

vtkExtractGeometry::~vtkExtractGeometry (  )  [protected]


Member Function Documentation

virtual const char* vtkExtractGeometry::GetClassName (  )  [virtual]

Reimplemented from vtkUnstructuredGridAlgorithm.

static int vtkExtractGeometry::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual int vtkExtractGeometry::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridAlgorithm.

static vtkExtractGeometry* vtkExtractGeometry::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkUnstructuredGridAlgorithm.

void vtkExtractGeometry::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkUnstructuredGridAlgorithm.

static vtkExtractGeometry* vtkExtractGeometry::New (  )  [static]

Construct object with ExtractInside turned on.

Reimplemented from vtkUnstructuredGridAlgorithm.

unsigned long vtkExtractGeometry::GetMTime (  )  [virtual]

Return the MTime taking into account changes to the implicit function

Reimplemented from vtkObject.

virtual void vtkExtractGeometry::SetImplicitFunction ( vtkImplicitFunction  )  [virtual]

Specify the implicit function for inside/outside checks.

virtual vtkImplicitFunction* vtkExtractGeometry::GetImplicitFunction (  )  [virtual]

Specify the implicit function for inside/outside checks.

virtual void vtkExtractGeometry::SetExtractInside ( int   )  [virtual]

Boolean controls whether to extract cells that are inside of implicit function (ExtractInside == 1) or outside of implicit function (ExtractInside == 0).

virtual int vtkExtractGeometry::GetExtractInside (  )  [virtual]

Boolean controls whether to extract cells that are inside of implicit function (ExtractInside == 1) or outside of implicit function (ExtractInside == 0).

virtual void vtkExtractGeometry::ExtractInsideOn (  )  [virtual]

Boolean controls whether to extract cells that are inside of implicit function (ExtractInside == 1) or outside of implicit function (ExtractInside == 0).

virtual void vtkExtractGeometry::ExtractInsideOff (  )  [virtual]

Boolean controls whether to extract cells that are inside of implicit function (ExtractInside == 1) or outside of implicit function (ExtractInside == 0).

virtual void vtkExtractGeometry::SetExtractBoundaryCells ( int   )  [virtual]

Boolean controls whether to extract cells that are partially inside. By default, ExtractBoundaryCells is off.

virtual int vtkExtractGeometry::GetExtractBoundaryCells (  )  [virtual]

Boolean controls whether to extract cells that are partially inside. By default, ExtractBoundaryCells is off.

virtual void vtkExtractGeometry::ExtractBoundaryCellsOn (  )  [virtual]

Boolean controls whether to extract cells that are partially inside. By default, ExtractBoundaryCells is off.

virtual void vtkExtractGeometry::ExtractBoundaryCellsOff (  )  [virtual]

Boolean controls whether to extract cells that are partially inside. By default, ExtractBoundaryCells is off.

virtual void vtkExtractGeometry::SetExtractOnlyBoundaryCells ( int   )  [virtual]

Boolean controls whether to extract cells that are partially inside. By default, ExtractBoundaryCells is off.

virtual int vtkExtractGeometry::GetExtractOnlyBoundaryCells (  )  [virtual]

Boolean controls whether to extract cells that are partially inside. By default, ExtractBoundaryCells is off.

virtual void vtkExtractGeometry::ExtractOnlyBoundaryCellsOn (  )  [virtual]

Boolean controls whether to extract cells that are partially inside. By default, ExtractBoundaryCells is off.

virtual void vtkExtractGeometry::ExtractOnlyBoundaryCellsOff (  )  [virtual]

Boolean controls whether to extract cells that are partially inside. By default, ExtractBoundaryCells is off.

virtual int vtkExtractGeometry::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual int vtkExtractGeometry::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkUnstructuredGridAlgorithm.


Member Data Documentation

Definition at line 97 of file vtkExtractGeometry.h.

Definition at line 98 of file vtkExtractGeometry.h.

Definition at line 99 of file vtkExtractGeometry.h.

Definition at line 100 of file vtkExtractGeometry.h.


The documentation for this class was generated from the following file:
