vtkGlyph3D Class Reference

#include <vtkGlyph3D.h>

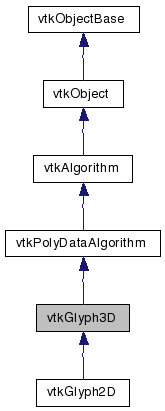

Inheritance diagram for vtkGlyph3D:

[legend]

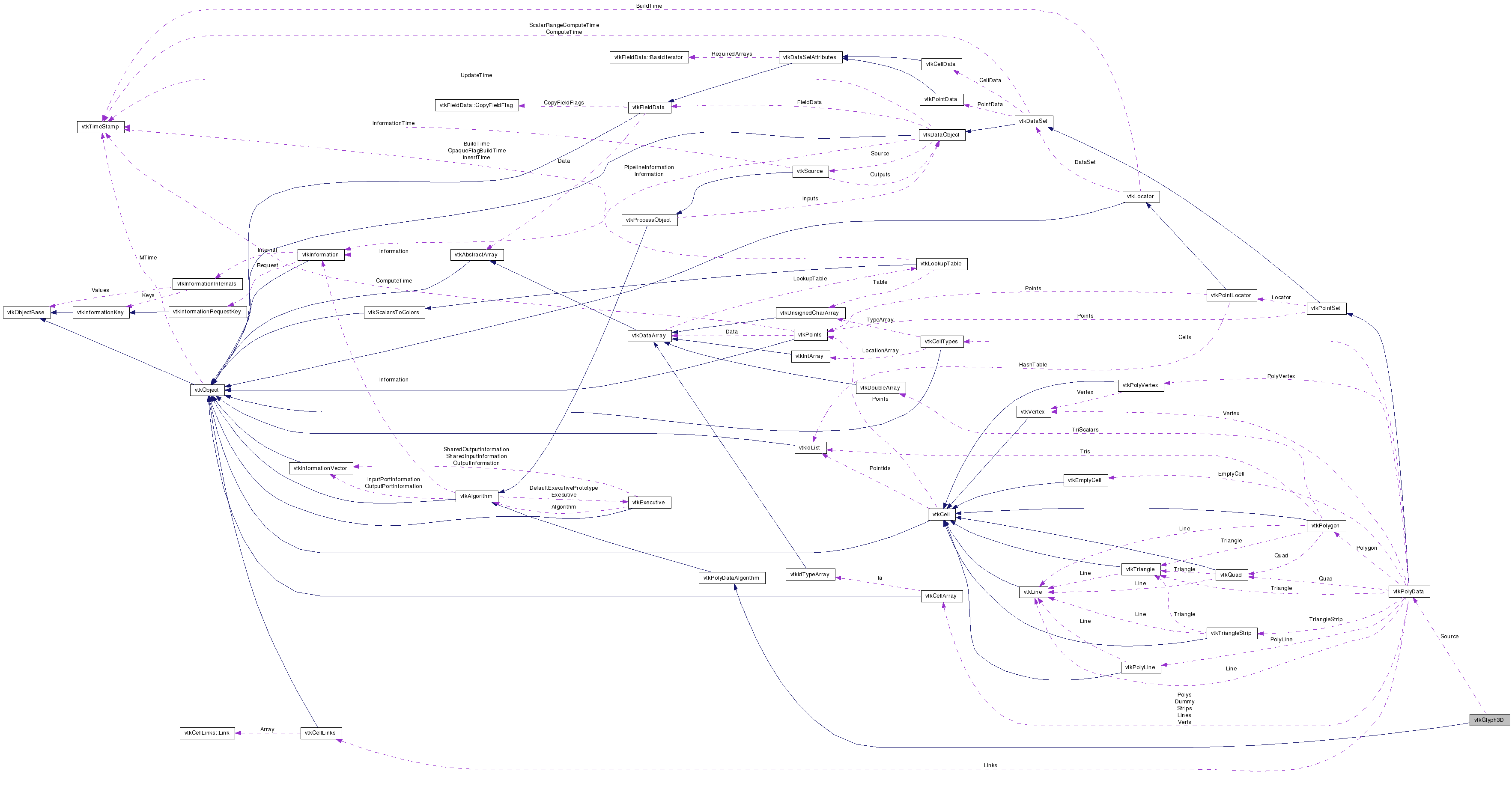

Collaboration diagram for vtkGlyph3D:

[legend]

List of all members.

Detailed Description

copy oriented and scaled glyph geometry to every input point

vtkGlyph3D is a filter that copies a geometric representation (called a glyph) to every point in the input dataset. The glyph is defined with polygonal data from a source filter input. The glyph may be oriented along the input vectors or normals, and it may be scaled according to scalar data or vector magnitude. More than one glyph may be used by creating a table of source objects, each defining a different glyph. If a table of glyphs is defined, then the table can be indexed into by using either scalar value or vector magnitude.

To use this object you'll have to provide an input dataset and a source to define the glyph. Then decide whether you want to scale the glyph and how to scale the glyph (using scalar value or vector magnitude). Next decide whether you want to orient the glyph, and whether to use the vector data or normal data to orient it. Finally, decide whether to use a table of glyphs, or just a single glyph. If you use a table of glyphs, you'll have to decide whether to index into it with scalar value or with vector magnitude.

Warning:

The scaling of the glyphs is controlled by the ScaleFactor ivar multiplied by the scalar value at each point (if VTK_SCALE_BY_SCALAR is set), or multiplied by the vector magnitude (if VTK_SCALE_BY_VECTOR is set), Alternatively (if VTK_SCALE_BY_VECTORCOMPONENTS is set), the scaling may be specified for x,y,z using the vector components. The scale factor can be further controlled by enabling clamping using the Clamping ivar. If clamping is enabled, the scale is normalized by the Range ivar, and then multiplied by the scale factor. The normalization process includes clamping the scale value between (0,1).

Typically this object operates on input data with scalar and/or vector data. However, scalar and/or vector aren't necessary, and it can be used to copy data from a single source to each point. In this case the scale factor can be used to uniformly scale the glyphs.

The object uses "vector" data to scale glyphs, orient glyphs, and/or index into a table of glyphs. You can choose to use either the vector or normal data at each input point. Use the method SetVectorModeToUseVector() to use the vector input data, and SetVectorModeToUseNormal() to use the normal input data.

If you do use a table of glyphs, make sure to set the Range ivar to make sure the index into the glyph table is computed correctly.

You can turn off scaling of the glyphs completely by using the Scaling ivar. You can also turn off scaling due to data (either vector or scalar) by using the SetScaleModeToDataScalingOff() method.

You can set what arrays to use for the scalars, vectors, normals, and color scalars by using the SetInputArrayToProcess methods in vtkAlgorithm. The first array is scalars, the next vectors, the next normals and finally color scalars.

See also:: vtkTensorGlyph

Examples:: vtkGlyph3D (Examples)

Tests:: vtkGlyph3D (Tests)

Definition at line 107 of file vtkGlyph3D.h.


Public Types
typedef vtkPolyDataAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	SetSource (vtkPolyData *pd)
void	SetSource (int id, vtkPolyData *pd)
vtkPolyData *	GetSource (int id=0)
virtual int	IsPointVisible (vtkDataSet *, vtkIdType)

void	SetSourceConnection (int id, vtkAlgorithmOutput *algOutput)
void	SetSourceConnection (vtkAlgorithmOutput *algOutput)

virtual void	SetScaling (int)
virtual void	ScalingOn ()
virtual void	ScalingOff ()
virtual int	GetScaling ()

virtual void	SetScaleMode (int)
virtual int	GetScaleMode ()
void	SetScaleModeToScaleByScalar ()
void	SetScaleModeToScaleByVector ()
void	SetScaleModeToScaleByVectorComponents ()
void	SetScaleModeToDataScalingOff ()
const char *	GetScaleModeAsString ()

virtual void	SetColorMode (int)
virtual int	GetColorMode ()
void	SetColorModeToColorByScale ()
void	SetColorModeToColorByScalar ()
void	SetColorModeToColorByVector ()
const char *	GetColorModeAsString ()

virtual void	SetScaleFactor (double)
virtual double	GetScaleFactor ()

virtual void	SetRange (double, double)
void	SetRange (double[2])
virtual double *	GetRange ()
virtual void	GetRange (double data[2])

virtual void	SetOrient (int)
virtual void	OrientOn ()
virtual void	OrientOff ()
virtual int	GetOrient ()

virtual void	SetClamping (int)
virtual void	ClampingOn ()
virtual void	ClampingOff ()
virtual int	GetClamping ()

virtual void	SetVectorMode (int)
virtual int	GetVectorMode ()
void	SetVectorModeToUseVector ()
void	SetVectorModeToUseNormal ()
void	SetVectorModeToVectorRotationOff ()
const char *	GetVectorModeAsString ()

virtual void	SetIndexMode (int)
virtual int	GetIndexMode ()
void	SetIndexModeToScalar ()
void	SetIndexModeToVector ()
void	SetIndexModeToOff ()
const char *	GetIndexModeAsString ()

virtual void	SetGeneratePointIds (int)
virtual int	GetGeneratePointIds ()
virtual void	GeneratePointIdsOn ()
virtual void	GeneratePointIdsOff ()

virtual void	SetPointIdsName (const char *)
virtual char *	GetPointIdsName ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkGlyph3D *	SafeDownCast (vtkObject *o)
static vtkGlyph3D *	New ()
Protected Member Functions
	vtkGlyph3D ()
	~vtkGlyph3D ()
virtual int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
virtual int	RequestUpdateExtent (vtkInformation , vtkInformationVector , vtkInformationVector )
virtual int	FillInputPortInformation (int, vtkInformation *)
vtkPolyData *	GetSource (int idx, vtkInformationVector *sourceInfo)
Protected Attributes
vtkPolyData **	Source
int	Scaling
int	ScaleMode
int	ColorMode
double	ScaleFactor
double	Range [2]
int	Orient
int	VectorMode
int	Clamping
int	IndexMode
int	GeneratePointIds
char *	PointIdsName

Member Typedef Documentation

typedef vtkPolyDataAlgorithm vtkGlyph3D::Superclass

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkGlyph2D.

Definition at line 110 of file vtkGlyph3D.h.

Constructor & Destructor Documentation

vtkGlyph3D::vtkGlyph3D ( ) [protected]

vtkGlyph3D::~vtkGlyph3D ( ) [protected]

Member Function Documentation

virtual const char* vtkGlyph3D::GetClassName ( ) [virtual]

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkGlyph2D.

static int vtkGlyph3D::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkGlyph2D.

virtual int vtkGlyph3D::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkGlyph2D.

static vtkGlyph3D* vtkGlyph3D::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkGlyph2D.

void vtkGlyph3D::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkGlyph2D.

static vtkGlyph3D* vtkGlyph3D::New ( ) [static]

Construct object with scaling on, scaling mode is by scalar value, scale factor = 1.0, the range is (0,1), orient geometry is on, and orientation is by vector. Clamping and indexing are turned off. No initial sources are defined.

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkGlyph2D.

void vtkGlyph3D::SetSource ( vtkPolyData * pd ) [inline]

Set the source to use for he glyph. Old style. See SetSourceConnection.

Definition at line 121 of file vtkGlyph3D.h.

void vtkGlyph3D::SetSource	(	int	id,
		vtkPolyData *	pd
	)

Specify a source object at a specified table location. Old style. See SetSourceConnection.

void vtkGlyph3D::SetSourceConnection	(	int	id,
		vtkAlgorithmOutput *	algOutput
	)

Specify a source object at a specified table location. New style. Source connection is stored in port 1. This method is equivalent to SetInputConnection(1, id, outputPort).

void vtkGlyph3D::SetSourceConnection ( vtkAlgorithmOutput * algOutput ) [inline]

Specify a source object at a specified table location. New style. Source connection is stored in port 1. This method is equivalent to SetInputConnection(1, id, outputPort).

Definition at line 132 of file vtkGlyph3D.h.

vtkPolyData* vtkGlyph3D::GetSource ( int id = 0 )

Get a pointer to a source object at a specified table location.

virtual void vtkGlyph3D::SetScaling ( int ) [virtual]

Turn on/off scaling of source geometry.

virtual void vtkGlyph3D::ScalingOn ( ) [virtual]

Turn on/off scaling of source geometry.

virtual void vtkGlyph3D::ScalingOff ( ) [virtual]

Turn on/off scaling of source geometry.

virtual int vtkGlyph3D::GetScaling ( ) [virtual]

Turn on/off scaling of source geometry.

virtual void vtkGlyph3D::SetScaleMode ( int ) [virtual]
