vtkHexahedron Class Reference

#include <vtkHexahedron.h>

Inheritance diagram for vtkHexahedron:

[legend]

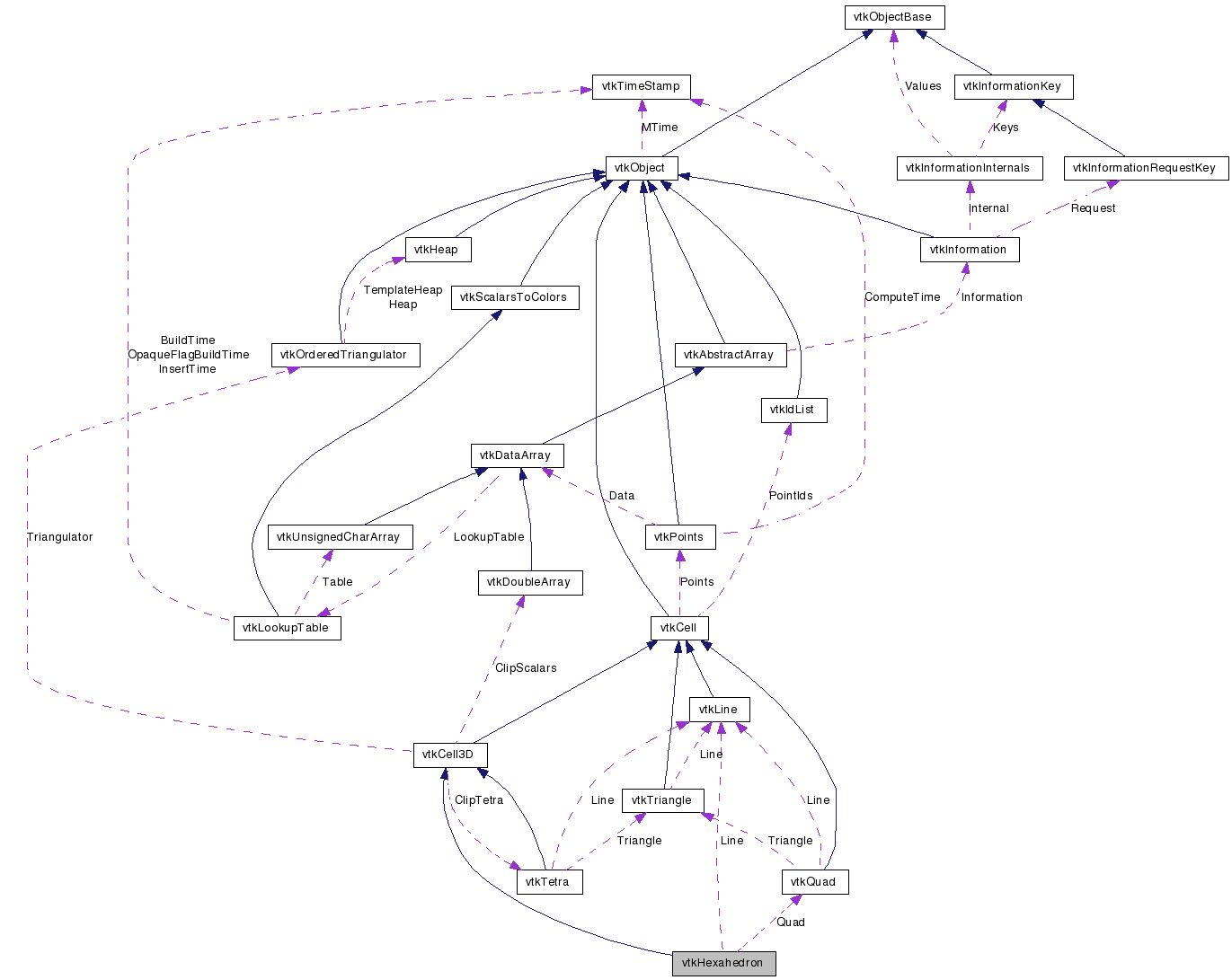

Collaboration diagram for vtkHexahedron:

[legend]

List of all members.

Detailed Description

a cell that represents a linear 3D hexahedron

vtkHexahedron is a concrete implementation of vtkCell to represent a linear, 3D rectangular hexahedron (e.g., "brick" topology). vtkHexahedron uses the standard isoparametric shape functions for a linear hexahedron. The hexahedron is defined by the eight points (0-7) where (0,1,2,3) is the base of the hexahedron which, using the right hand rule, forms a quadrilaterial whose normal points in the direction of the opposite face (4,5,6,7).

See also:: vtkConvexPointSet vtkPyramid vtkTetra vtkVoxel vtkWedge

Examples:: vtkHexahedron (Examples)

Tests:: vtkHexahedron (Tests)

Definition at line 44 of file vtkHexahedron.h.


static void	InterpolationFunctions (double pcoords[3], double weights[8])
static void	InterpolationDerivs (double pcoords[3], double derivs[24])
virtual void	InterpolateFunctions (double pcoords[3], double weights[8])
virtual void	InterpolateDerivs (double pcoords[3], double derivs[24])
Public Types
typedef vtkCell3D	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
int	EvaluatePosition (double x[3], double closestPoint, int &subId, double pcoords[3], double &dist2, double weights)
void	EvaluateLocation (int &subId, double pcoords[3], double x[3], double *weights)
int	IntersectWithLine (double p1[3], double p2[3], double tol, double &t, double x[3], double pcoords[3], int &subId)
int	Triangulate (int index, vtkIdList ptIds, vtkPoints pts)
void	Derivatives (int subId, double pcoords[3], double values, int dim, double derivs)
virtual double *	GetParametricCoords ()
void	JacobianInverse (double pcoords[3], double **inverse, double derivs[24])

virtual void	GetEdgePoints (int edgeId, int *&pts)
virtual void	GetFacePoints (int faceId, int *&pts)

int	GetCellType ()
int	GetNumberOfEdges ()
int	GetNumberOfFaces ()
vtkCell *	GetEdge (int edgeId)
vtkCell *	GetFace (int faceId)
int	CellBoundary (int subId, double pcoords[3], vtkIdList *pts)
void	Contour (double value, vtkDataArray cellScalars, vtkPointLocator locator, vtkCellArray verts, vtkCellArray lines, vtkCellArray polys, vtkPointData inPd, vtkPointData outPd, vtkCellData inCd, vtkIdType cellId, vtkCellData *outCd)
Static Public Member Functions
static vtkHexahedron *	New ()
static int	IsTypeOf (const char *type)
static vtkHexahedron *	SafeDownCast (vtkObject *o)

static int *	GetEdgeArray (int edgeId)
static int *	GetFaceArray (int faceId)
Protected Member Functions
	vtkHexahedron ()
	~vtkHexahedron ()
Protected Attributes
vtkLine *	Line
vtkQuad *	Quad

Member Typedef Documentation

typedef vtkCell3D vtkHexahedron::Superclass

Reimplemented from vtkCell3D.

Definition at line 48 of file vtkHexahedron.h.

Constructor & Destructor Documentation

vtkHexahedron::vtkHexahedron ( ) [protected]

vtkHexahedron::~vtkHexahedron ( ) [protected]

Member Function Documentation

static vtkHexahedron* vtkHexahedron::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkHexahedron::GetClassName ( ) [virtual]

Reimplemented from vtkCell3D.

static int vtkHexahedron::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkCell3D.

virtual int vtkHexahedron::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkCell3D.

static vtkHexahedron* vtkHexahedron::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkCell3D.

void vtkHexahedron::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkCell3D.

virtual void vtkHexahedron::GetEdgePoints	(	int	edgeId,
		int *&	pts
	)			`[virtual]`

See vtkCell3D API for description of these methods.

Implements vtkCell3D.

virtual void vtkHexahedron::GetFacePoints	(	int	faceId,
		int *&	pts
	)			`[virtual]`

See vtkCell3D API for description of these methods.

Implements vtkCell3D.

int vtkHexahedron::GetCellType ( ) [inline, virtual]
